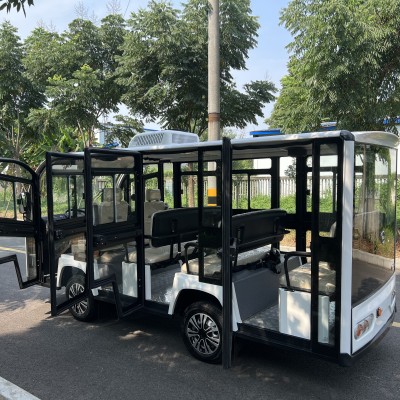

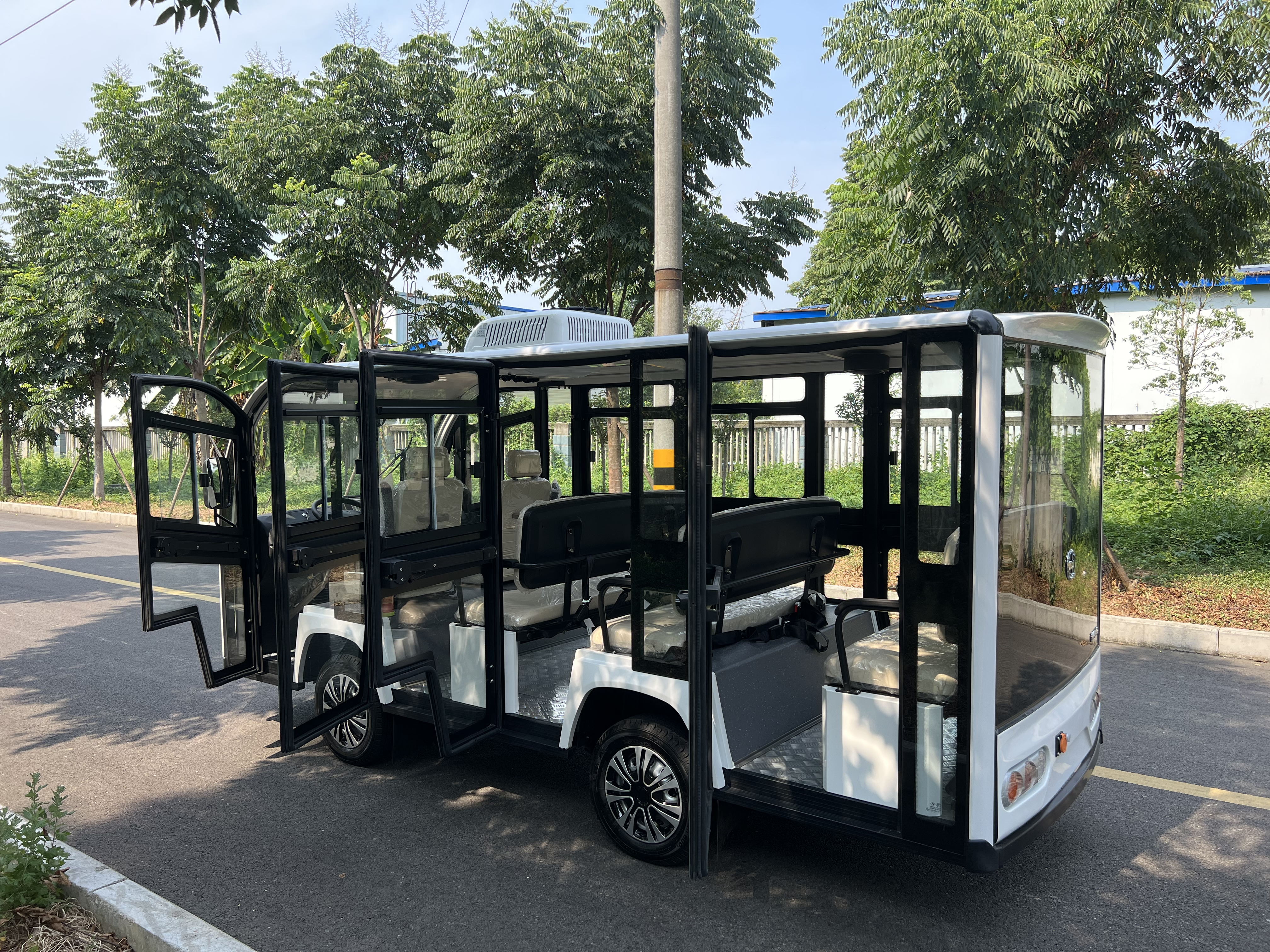

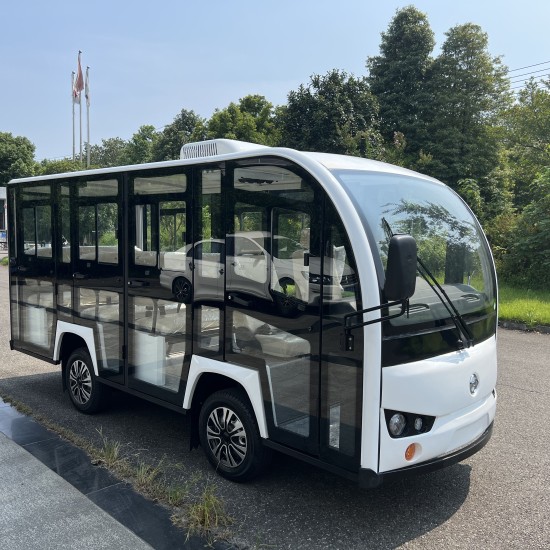

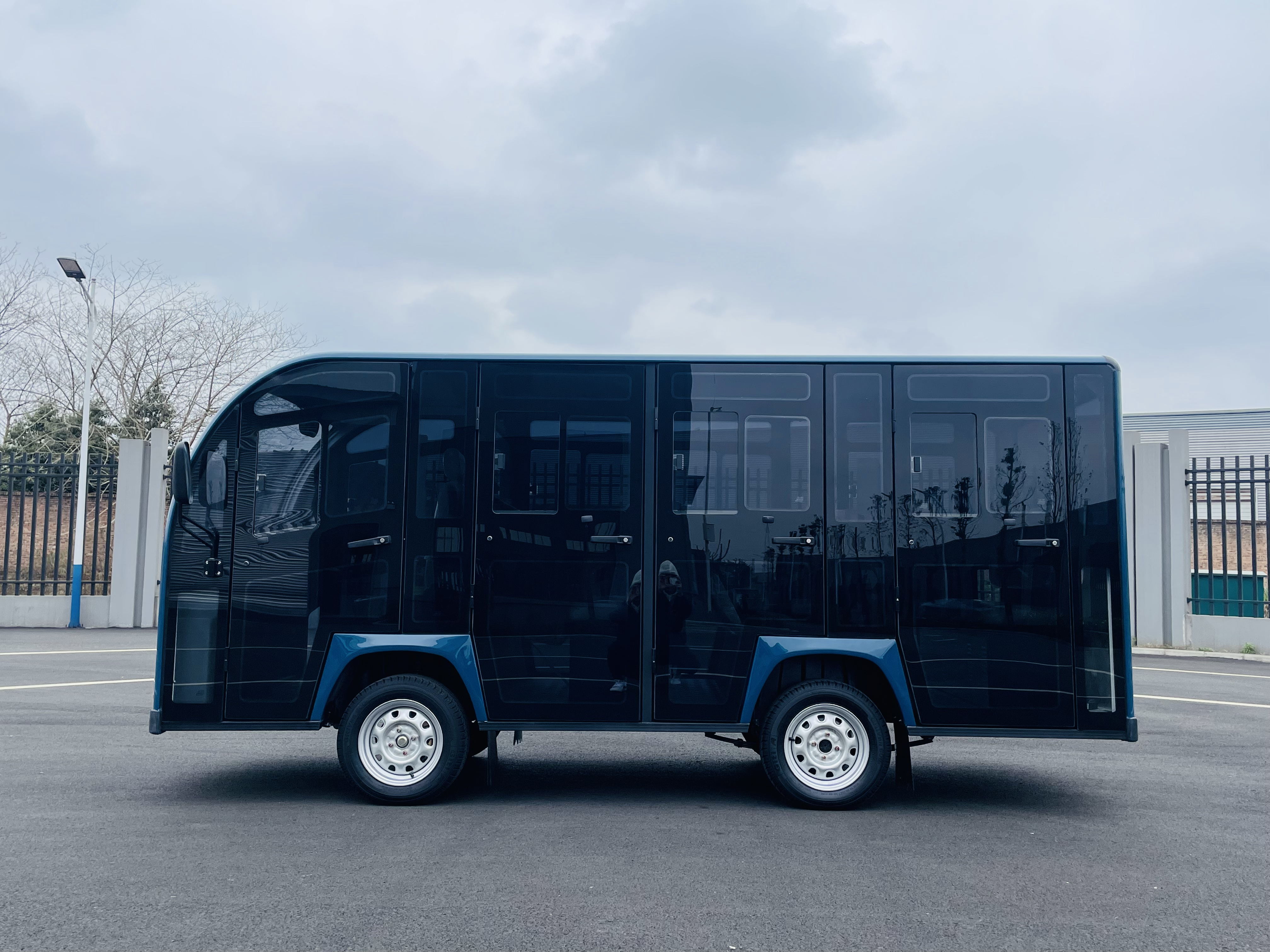

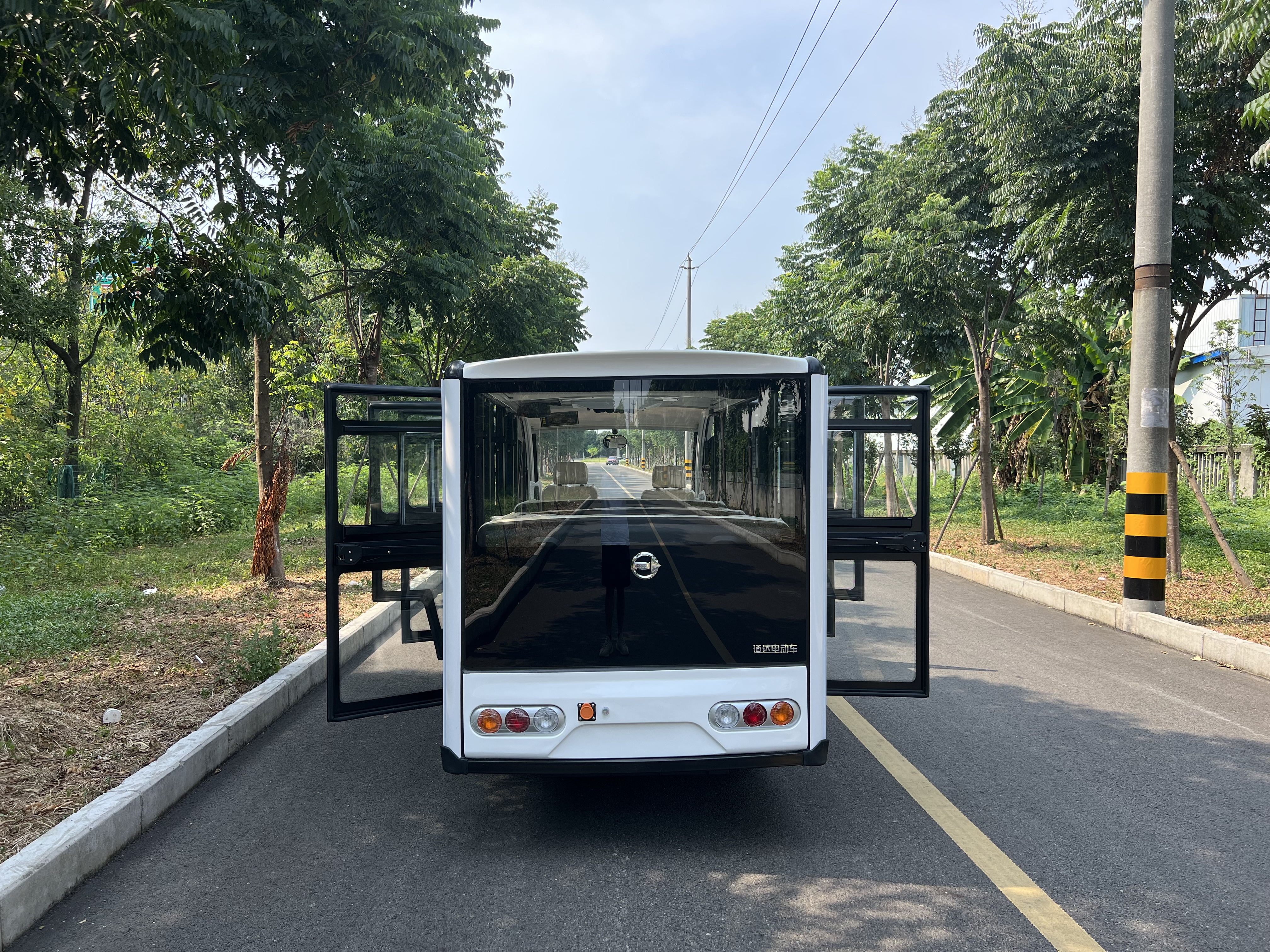

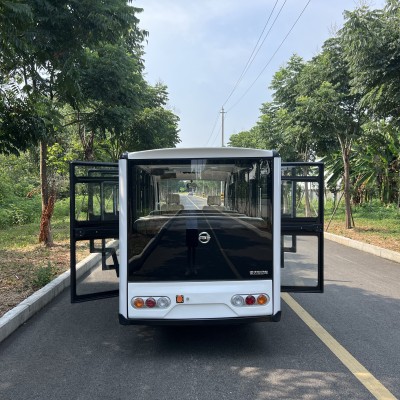

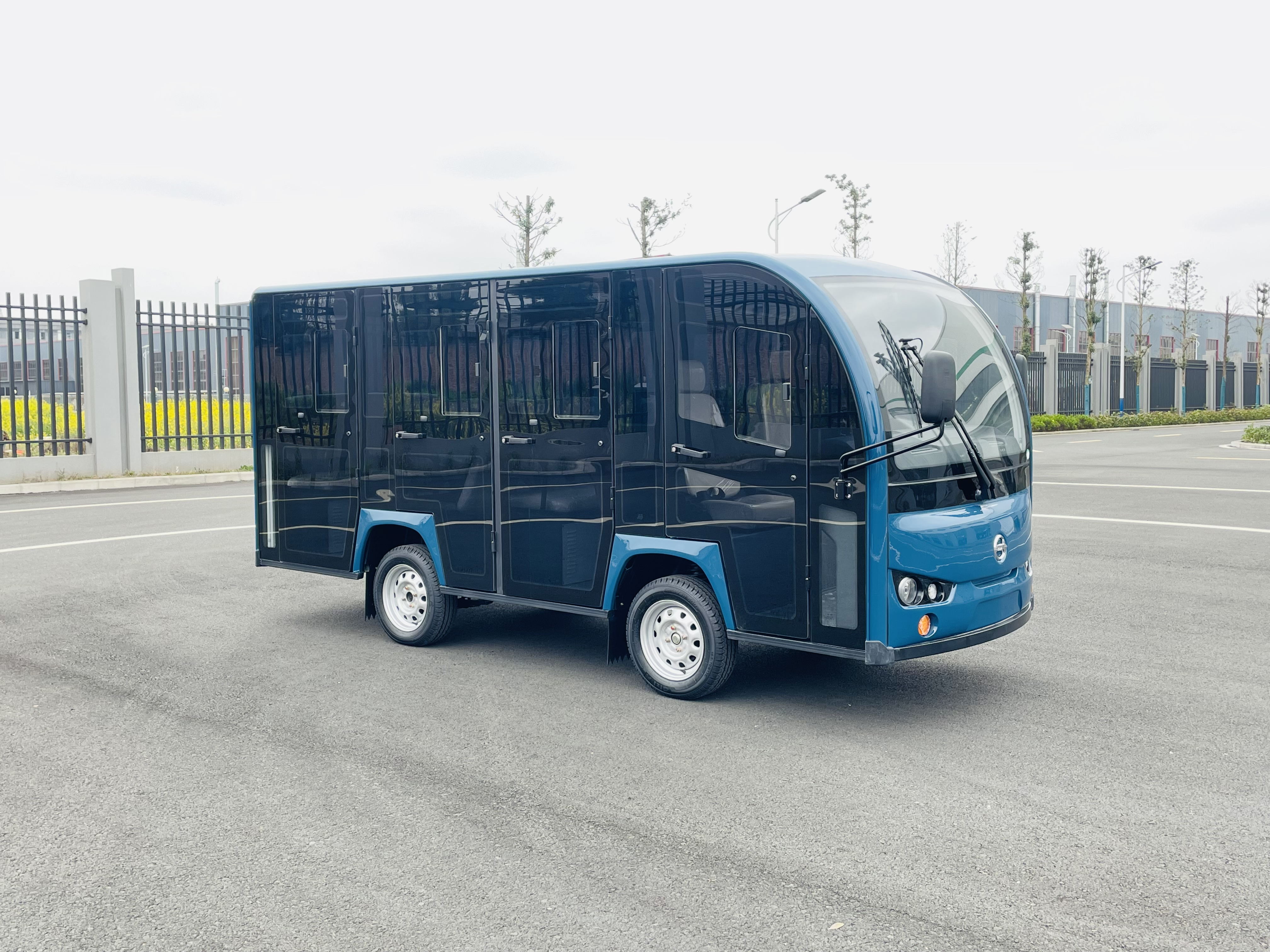

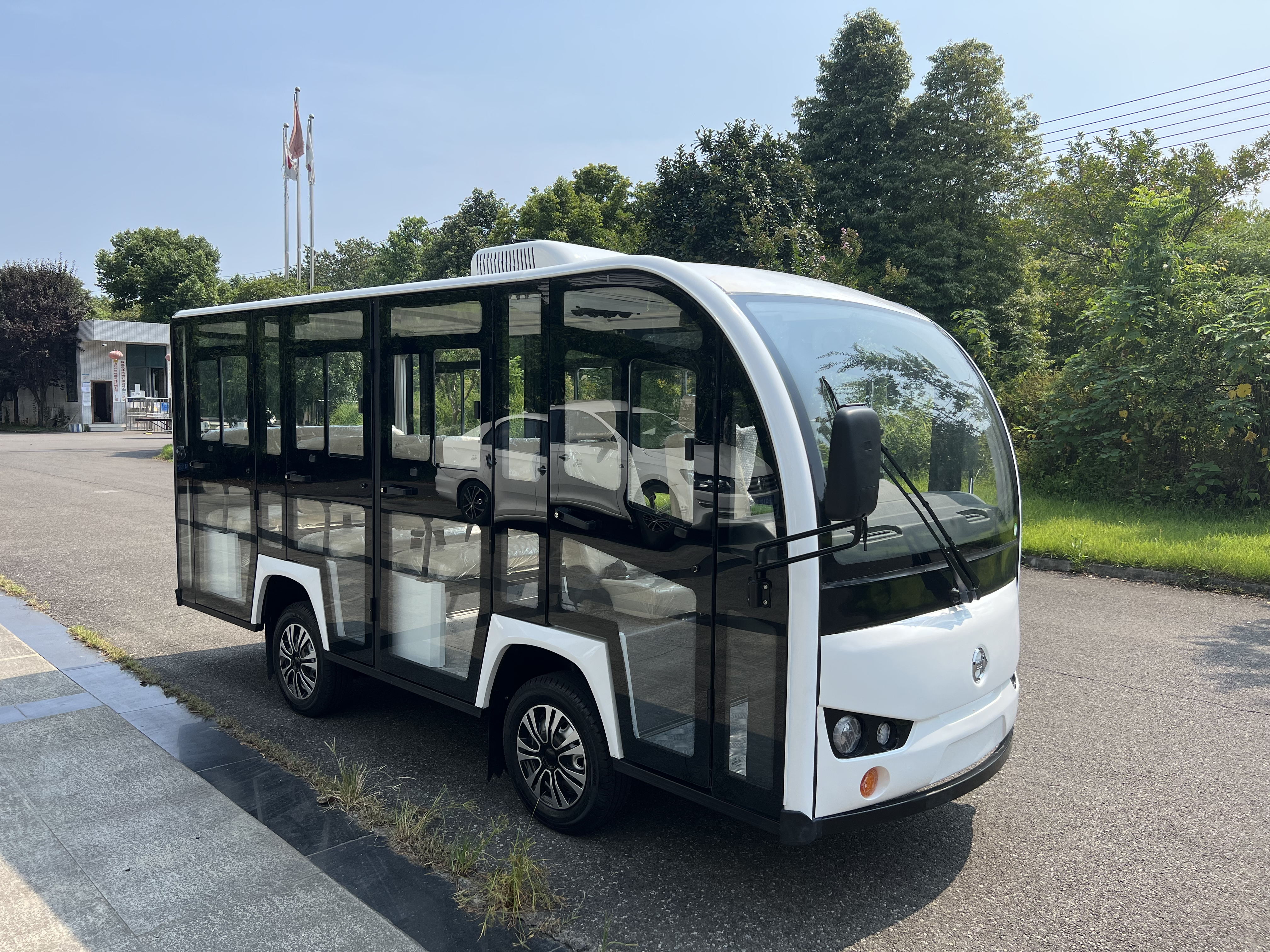

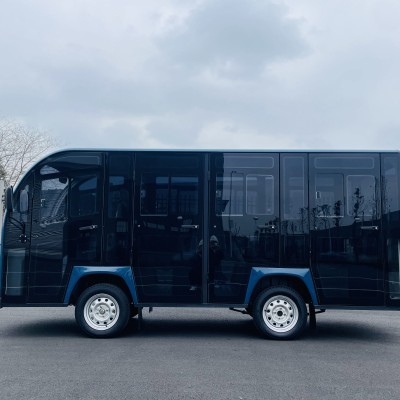

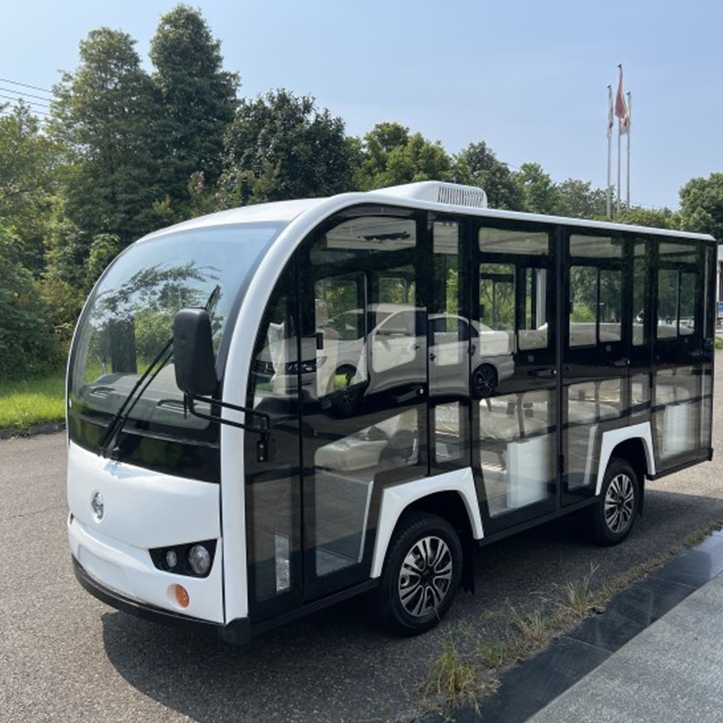

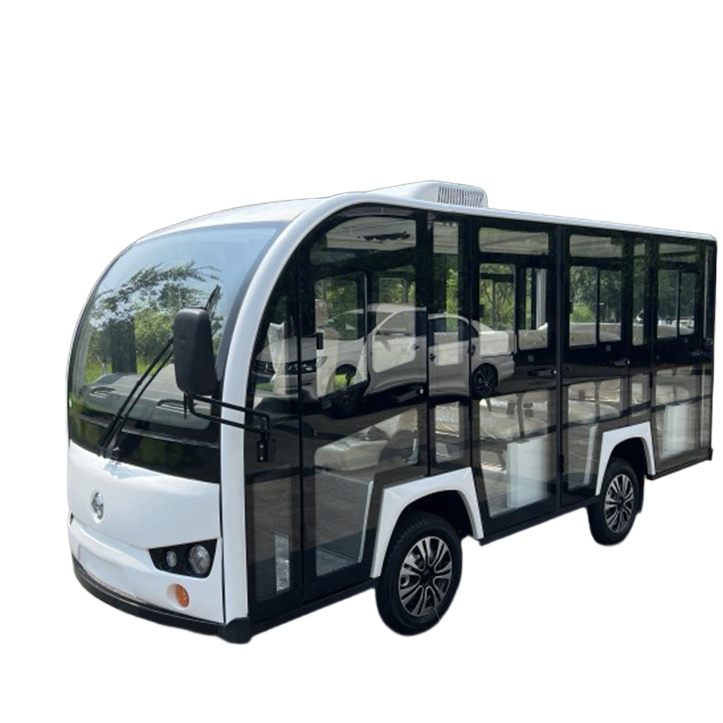

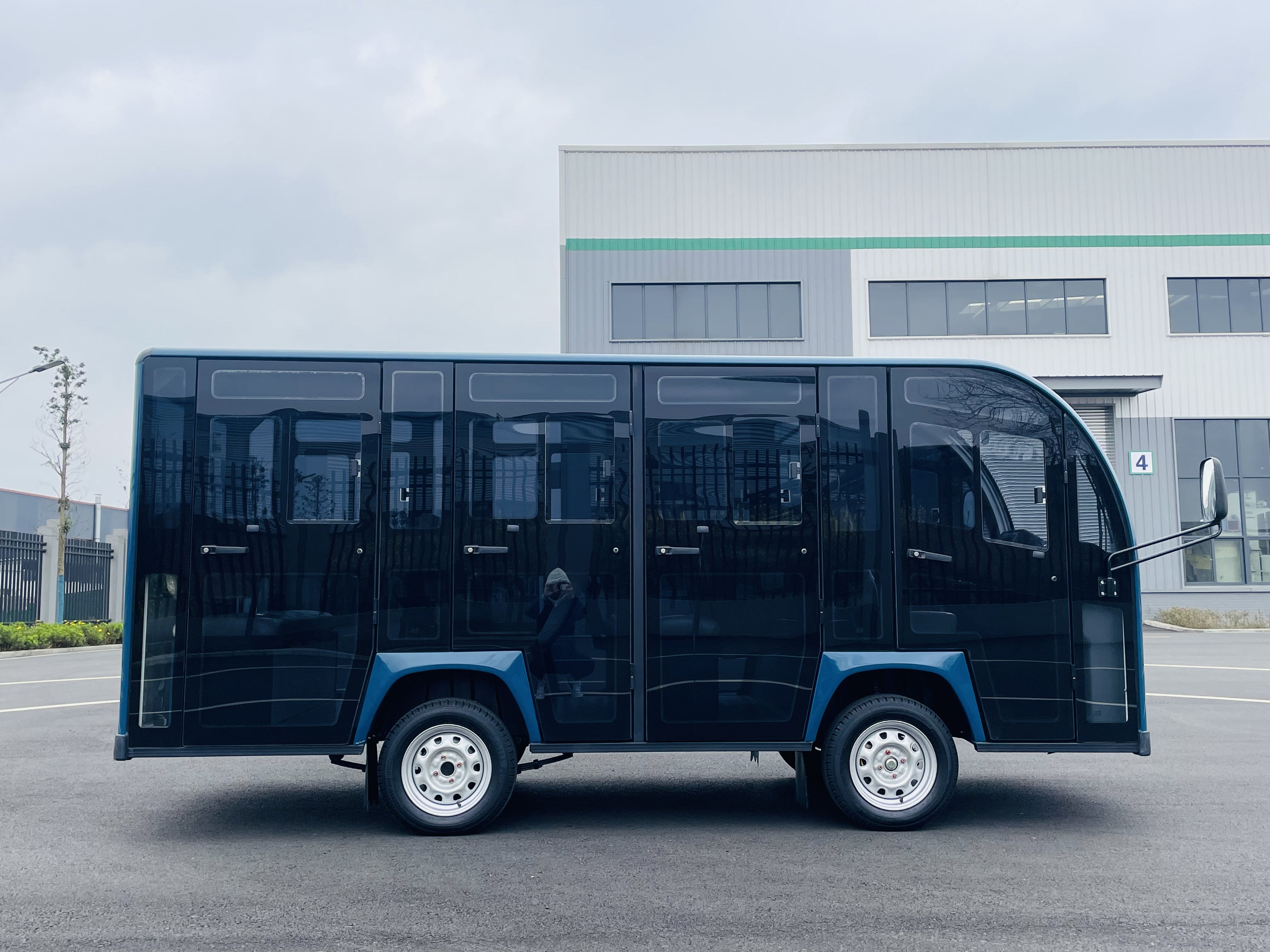

Professional Utility 11 Seats Enclosed Electric Sightseeing Car

T

e

c

h

n

i

c

a

l

p

a

r

a

m

e

t

e

r

Vehicle model

F11-M

Configuration code

QM12

Rated occupant

11 persons

Dimensions

4438×1570× 1950mm（L*W*H）

Top speed

15～25km/h（ adjustable）

Charging input voltage

220V

Wheelbase

1830mm

Front and

rear track

1300/ 1280mm

Minimum ground clearance

150mm

Minimum

turning

radius

4m

Braking distance

≤6m

Gradeability

15%

Curb weight

1460kg

Maximum

driving

mileage

70km

E

l

e

c

t

r

i

c

a

l

S y s t  e

m

Battery

72V150AH maintenance-free lead-acid power battery pack.

Power system

72V high efficiency MOSFET AC motor control system, 5kw maintenance free brushless AC variable frequency motor.

Motor

7.5kw maintenance-free no-carbonate brush AC frequency conversion motor

Charger

AC220/DC72V high-efficiency vehicle-mounted intelligent charger, charging time is 8- 10 hours (discharge rate is 80%).

Lights and

Signals

Headlights, turn signals, combined rear tail lights, brake lights, electric horn and reversing buzzer.

Audio

Car MP3 audio player, Hi-Fi speakers.

Switch

Key start switch, light and wiper combination switch, warning light rocker switch, emergency power off switch.

Meter

LCD instrument (including voltage, current, speed, mileage, light, front and rear commutation and other signals).

Speed,Drive and

Reverse control

Electronic throttle, luxury knob-type shift switch, stepless speed regulation system, anti- slip control on slopes.

Wiper

Double-speed large-field wiper, glass spray washing function

B

o

d

y

a

n

d

C

h

a

s

s

i

s

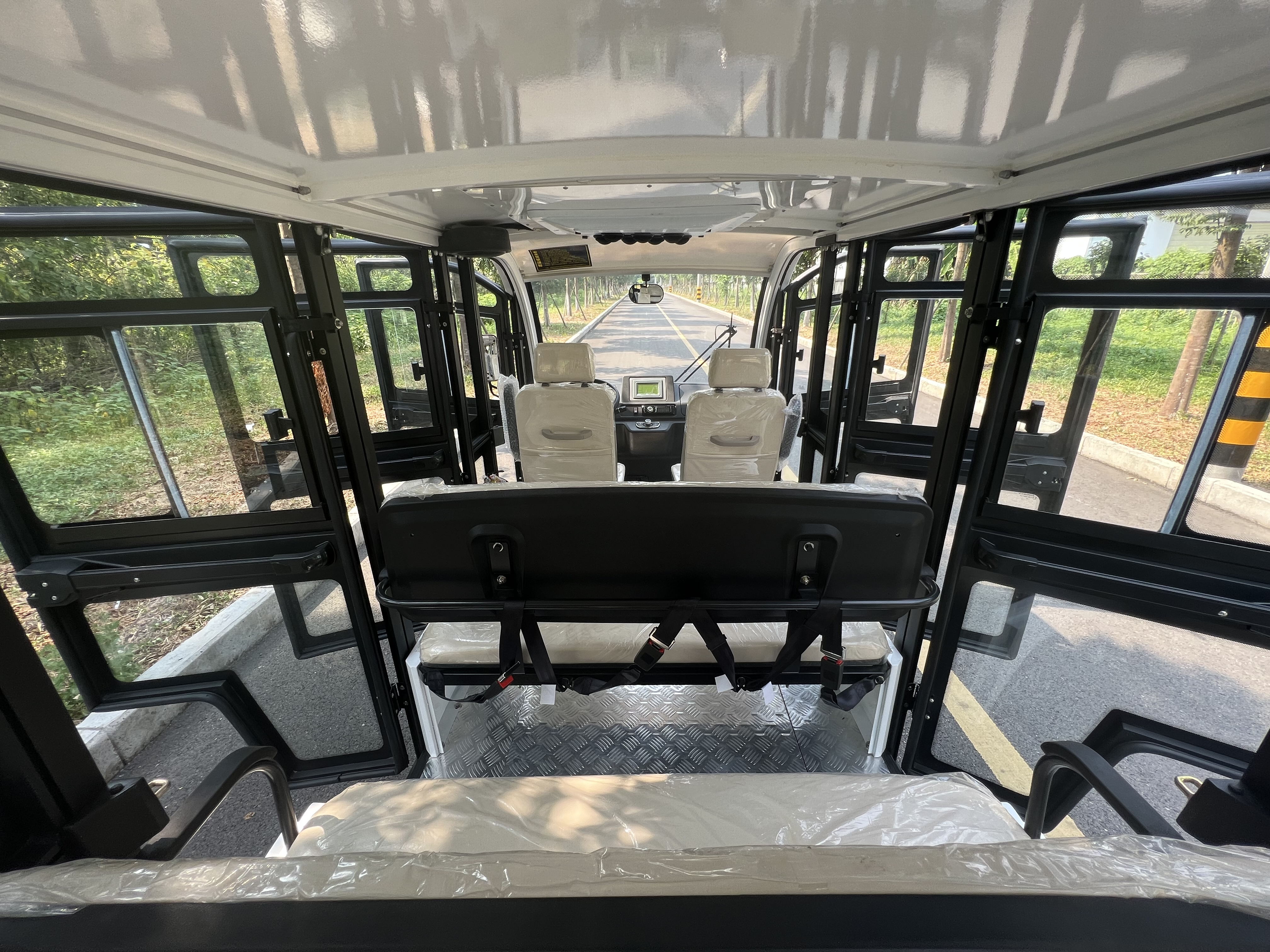

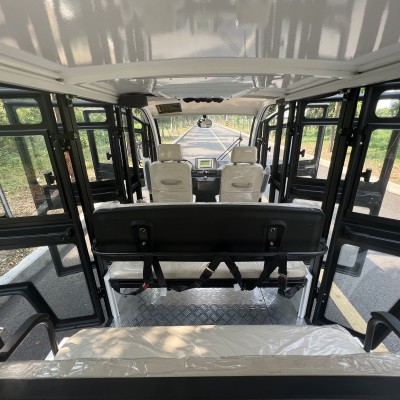

Seat

First row 1+1 single seat (leather fabric + high resilience PU, angle adjuster, driver seat    with slide rail front and rear adjustable, off-white) Rear three-person seat (leather fabric + high resilience PU , off-white), equipped with two-point seat belts, safety ropes on both     sides of the body.

Body and frame

Aluminum alloy body frame, high-strength rectangular steel tube welded chassis frame, electrostatic spraying and electrophoresis anti-rust treatment.

Body

High-strength FRP shell and ABS plastic moldings, automotive-grade paint spray/aluminum frame.

Floor

High anti-corrosion aluminum-zinc plate + aluminum alloy pattern plate double-layer floor, aluminum alloy floor skirting strip.

Dashboard

Polyurethane foam one-piece instrument panel, with lock access cover, reserved defrost air conditioner outlet.

 Front windshield

Double layer laminated front windshield, wide field manual external rearview mirror + middle built-in rearview mirror.

★Rear windshield

Wide, high-definition tempered glass (prevent dust and rain back).

★ steering system

1..Bus class steering pipe string can be adjusted according to the need of up, down, front, back four directions;

2.Mechanical power drive Angle drive gear;

3.double ball head double push rod gear rack belt clearance compensation direction machine.

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Front suspension system

McPherson independent suspension + injection plastic tire waterproof cover.

★Rear suspension system

Non-independent suspension, double stiffness 5 plate spring (3 equal section plate spring + 2 variable section plate spring) + cylinder hydraulic shock absorber + injection plastic tire waterproof cover.

 rear axle

High efficiency motor direct connection type large speed ratio gear reduction integral rear axle.

Braking

Front disc and rear drum + hydraulic double pipe brake;

Mechanical rear-wheel parking brake device；

Tire

165/70R13C vacuum radial tires, steel rims.
