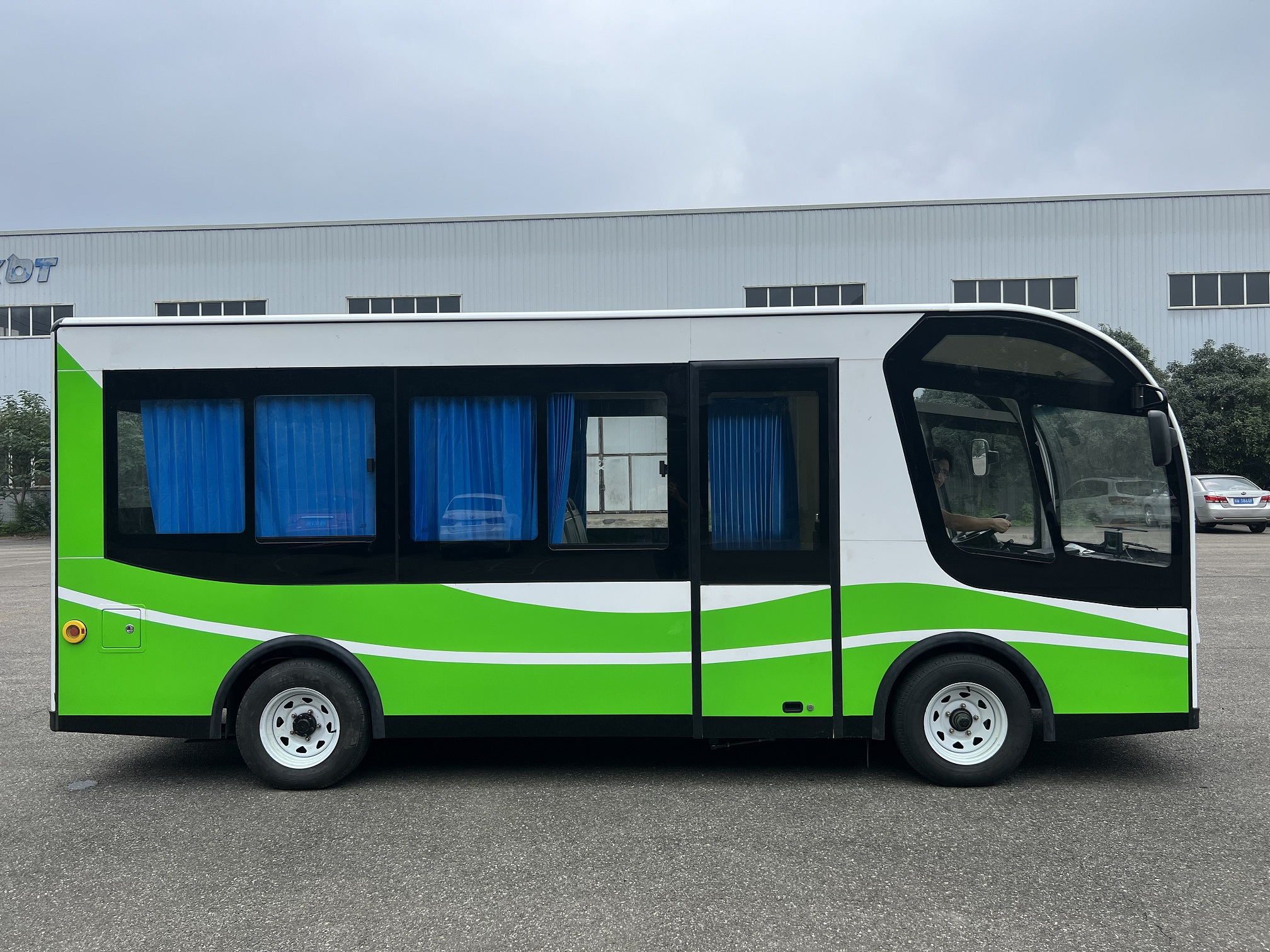

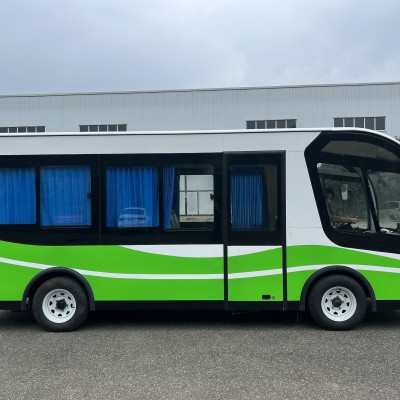

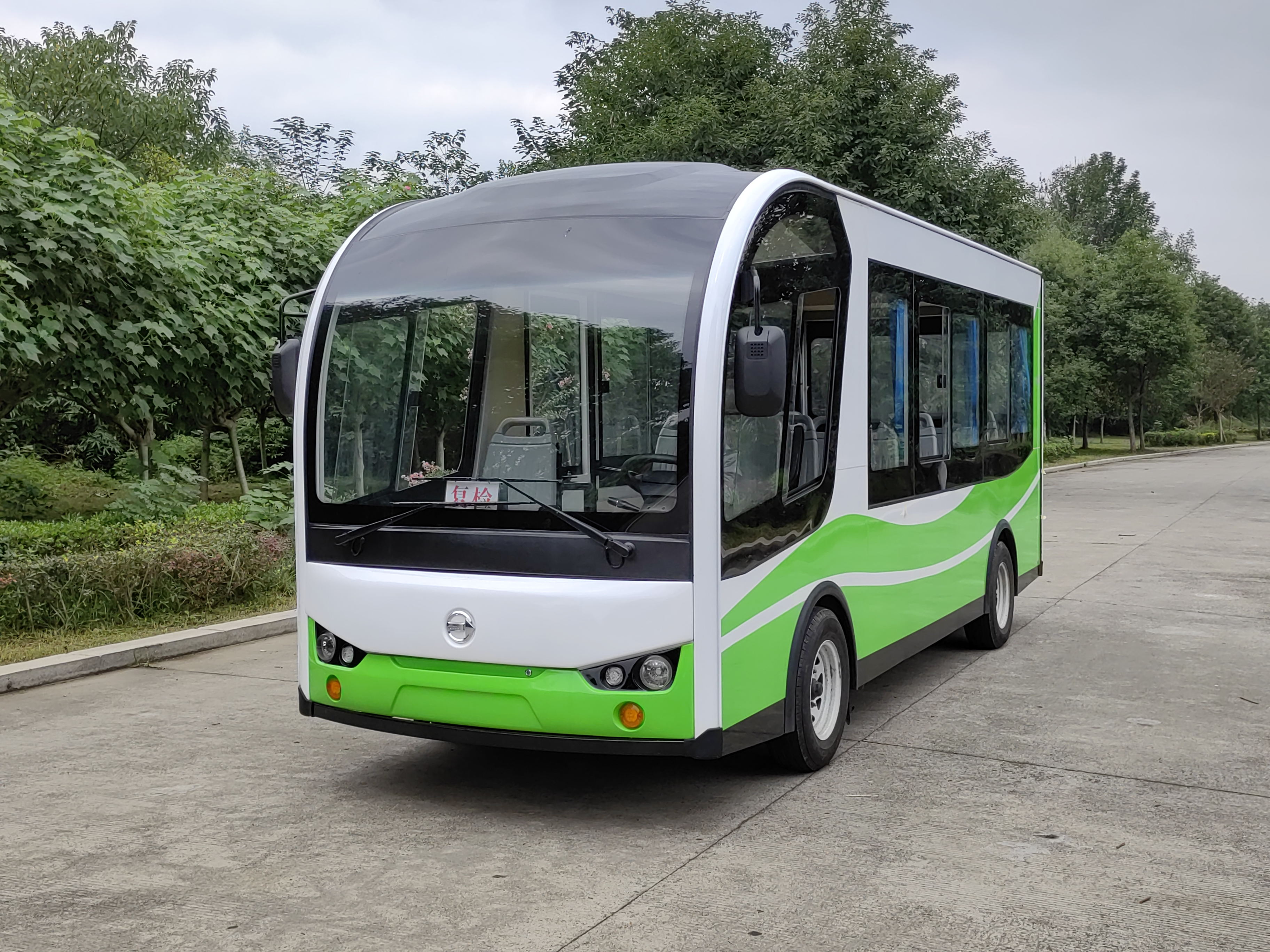

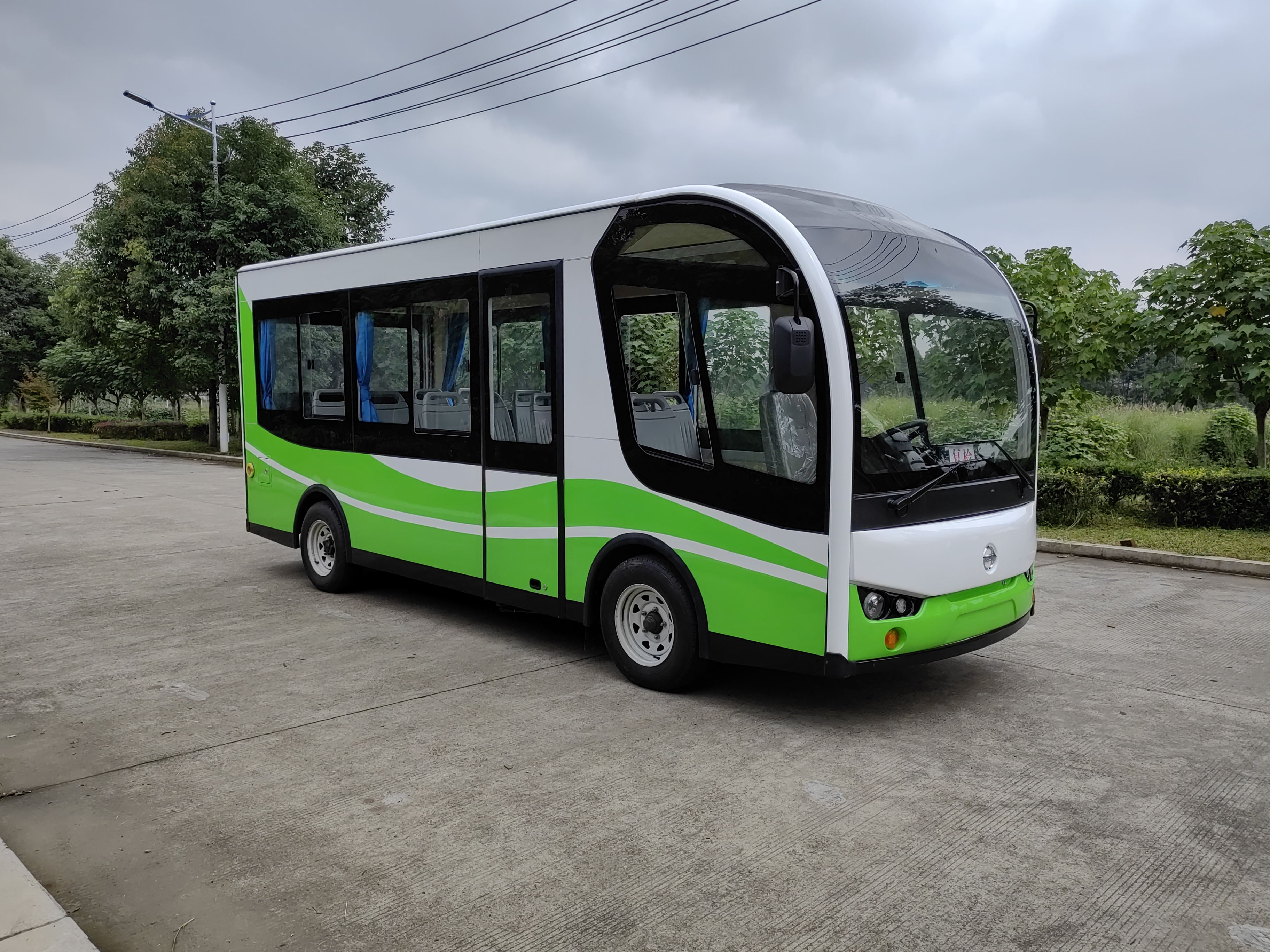

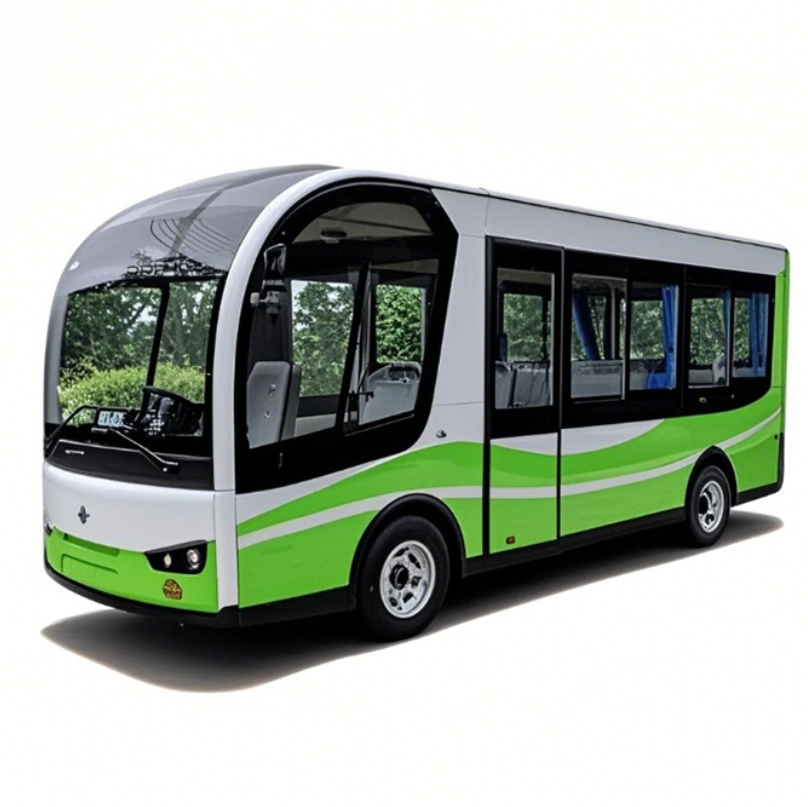

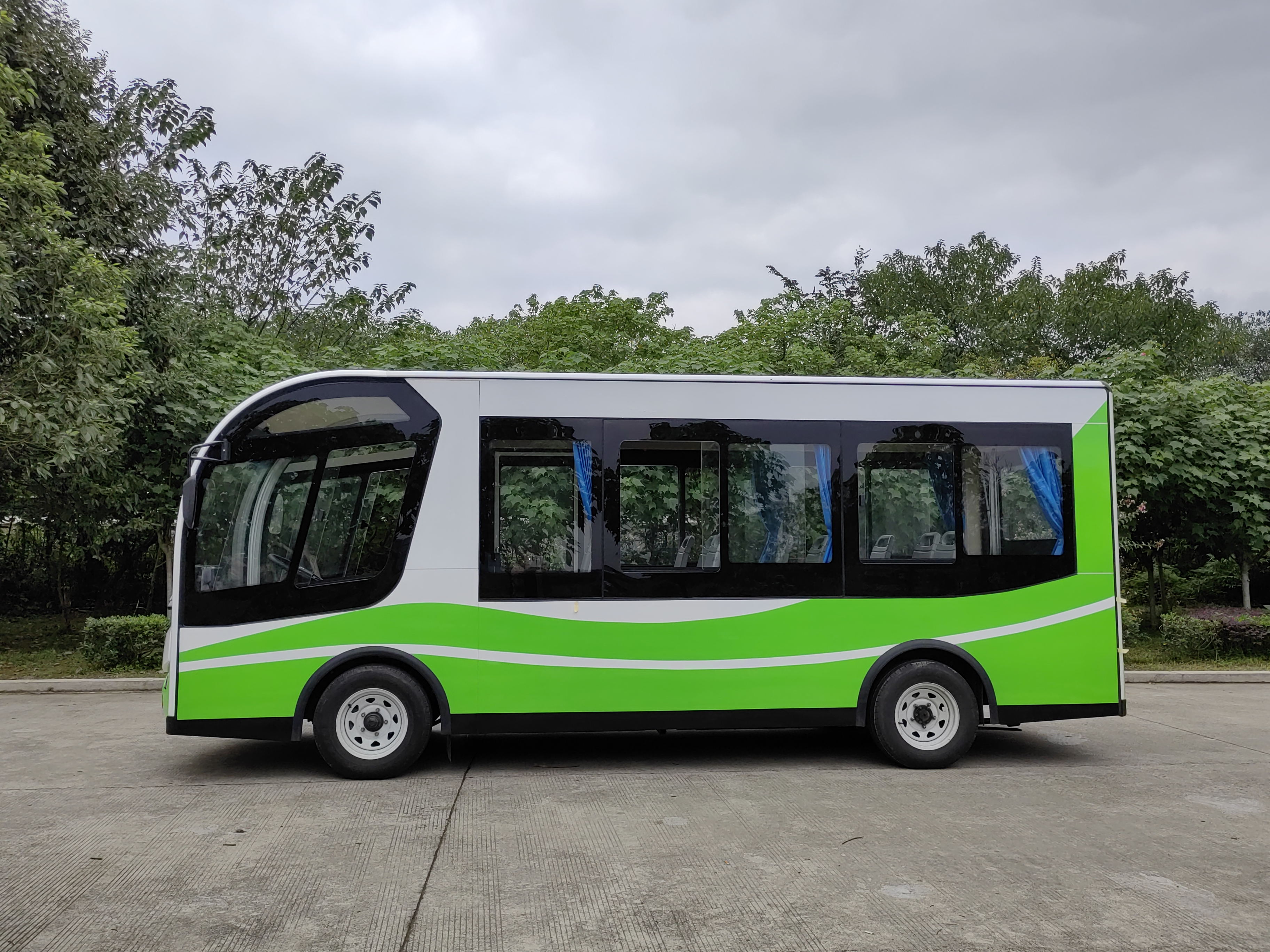

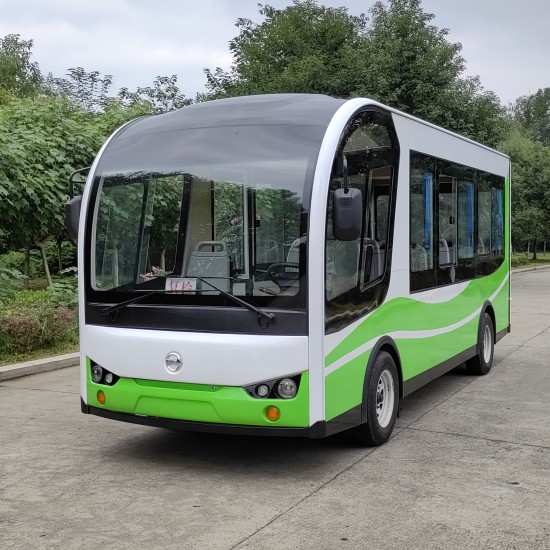

220V Long Range 17 Seats School Mini Electric Bus

T

e

c

h

n

i

c

a

l

p

a

r

a

m

e

t

e

r

Vehicle model

FB17

Configuration code

Rated occupant

17 to 19 persons

Dimensions

5790*1800*2450mm (L*W*H)

1900mm (inside height)

Top speed

60 to 80km/h (adjustable)

Charging input voltage

220V or 380V

Wheelbase

3200mm

Front and

rear track

1563/ 1570mm

Minimum ground clearance

150mm

Minimum

turning

radius

7.4m

Braking distance

≤5m

Gradeability

15%

Curb weight

( 1950 to 2500kg)

Maximum

driving

mileage

100 to 450km

E

l

e

c

t

r

i

c

a

l

S y s t  e

m

Battery

Large-capacity LiFePO4 (LFP) power battery pack (configured according to requirements).

Power system

150V high-efficiency Permanent Magnet Synchronous Motor control system, 15/30KW high-efficiency Permanent Magnet Synchronous Motor.

Charger

AC220/DC144V high-efficiency vehicle-mounted intelligent charger or 380V charging pile (depending on the power of the battery pack)

Lights and Signals

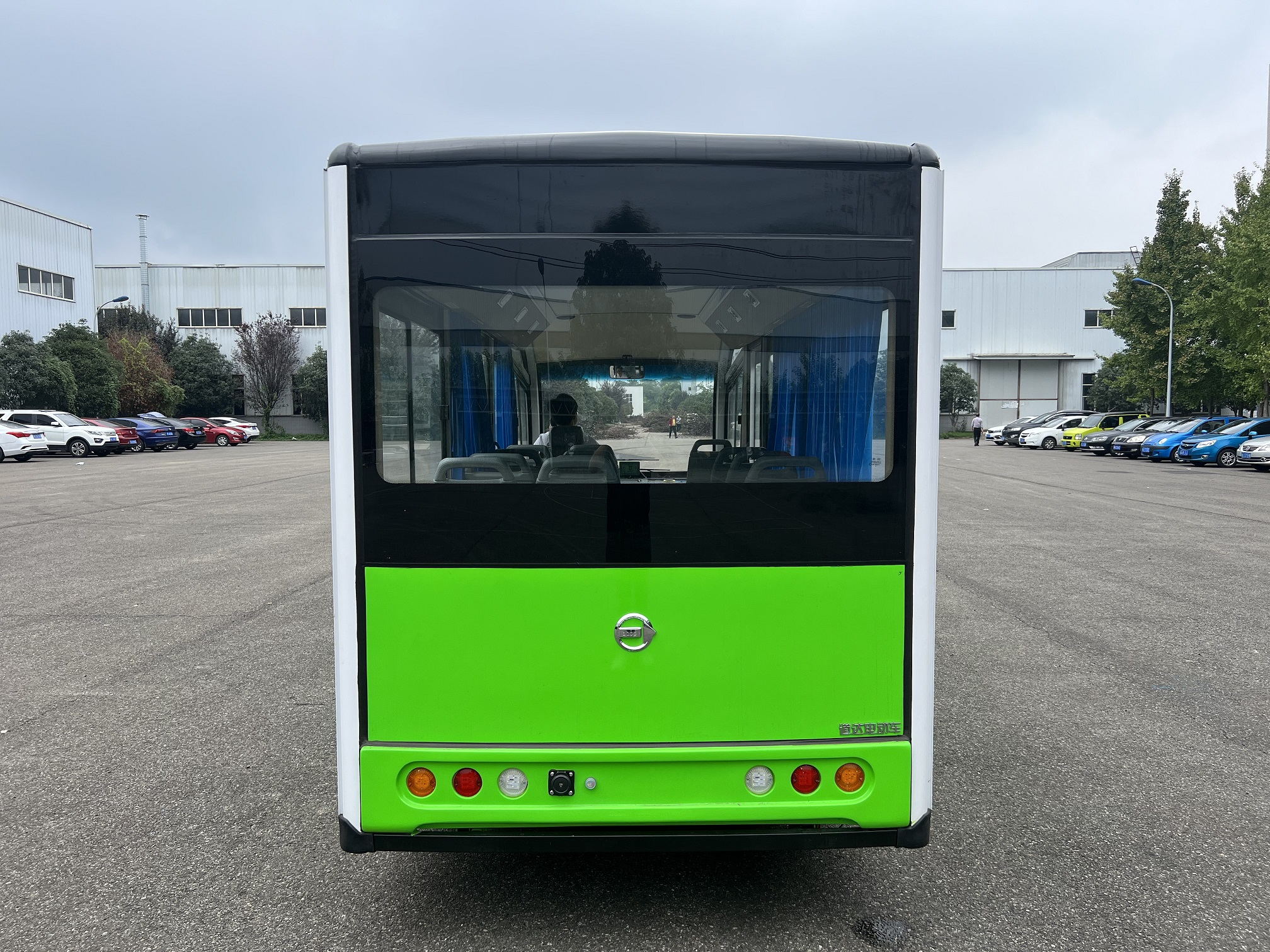

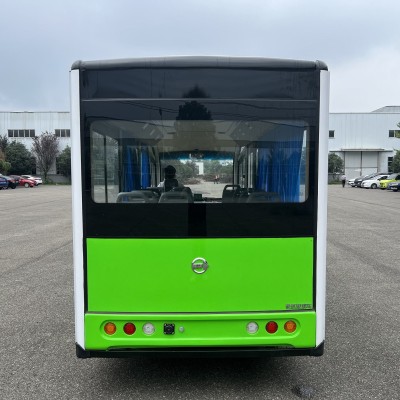

Headlights, turn signals, combined rear taillights, brake lights, electric horns and reversing buzzers.

Audio

Car MP3 audio machine, high-fidelity speakers.

Switch

Key start switch, light and wiper combination switch, warning light and reversing buzzer rocker switch, emergency power off switch.

Instrument

LCD instrument (including voltage, current, vehicle speed, mileage, light, front and rear commutation and other signals).

Speed,Drive and

Reverse control

Floor type electronic accelerator, luxurious handle shift switch, stepless speed regulation system, slope anti-slip control.

B

O

D

y

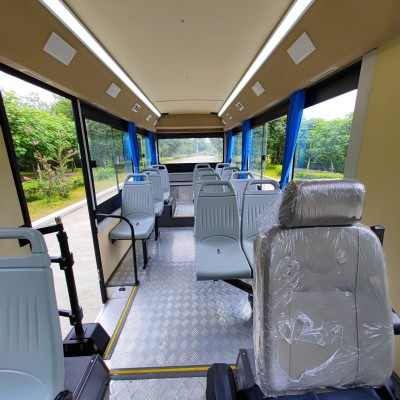

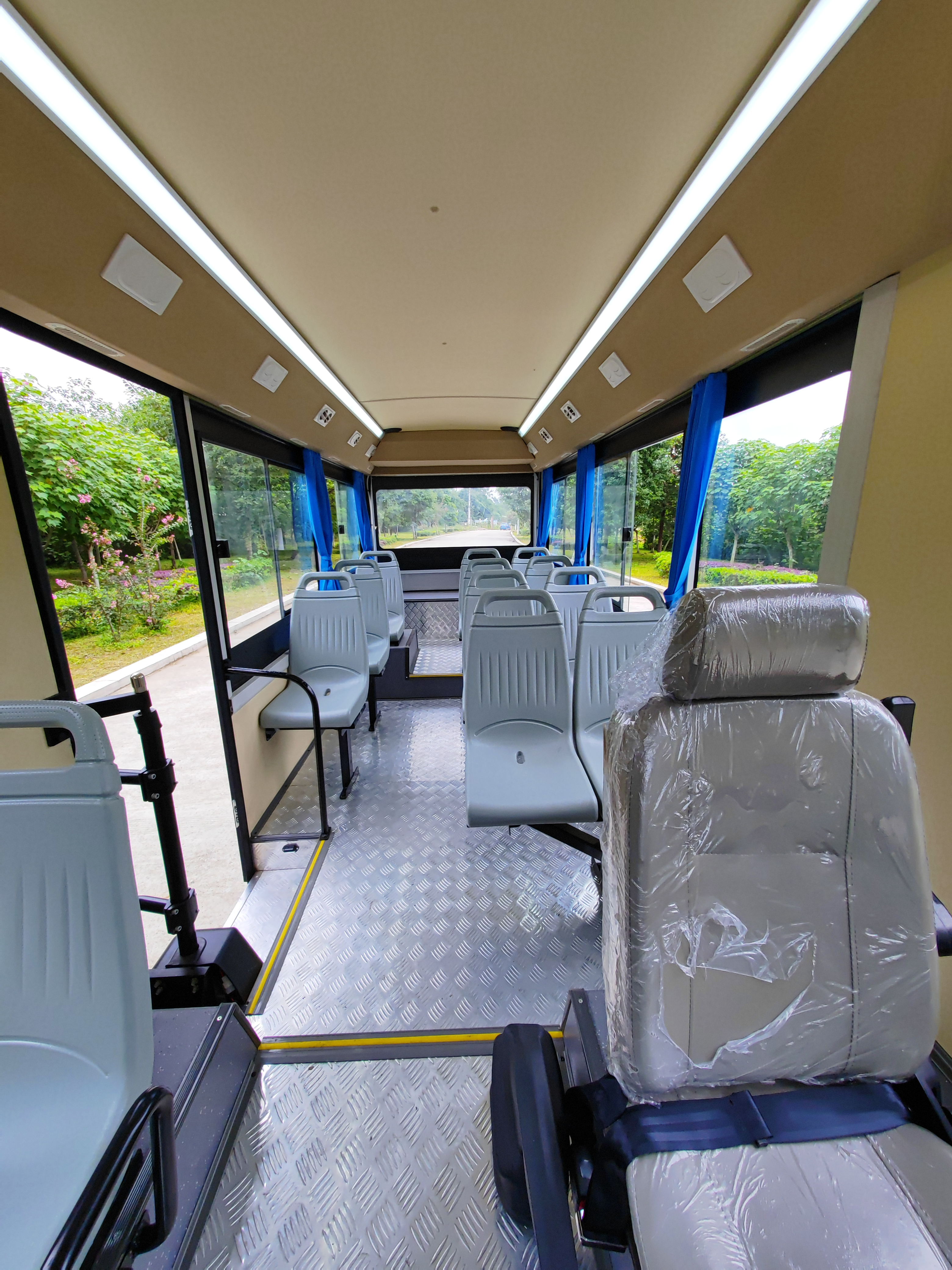

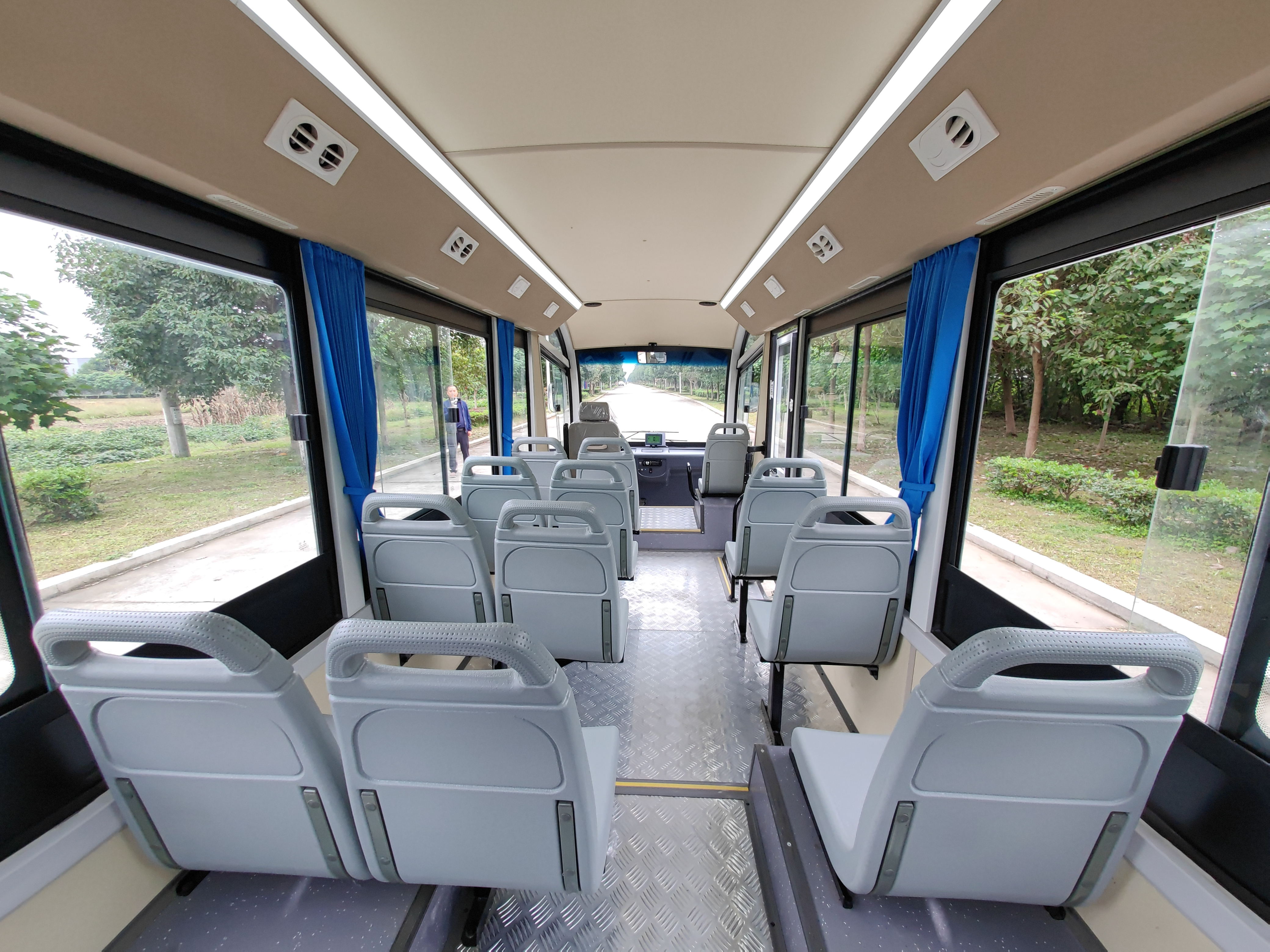

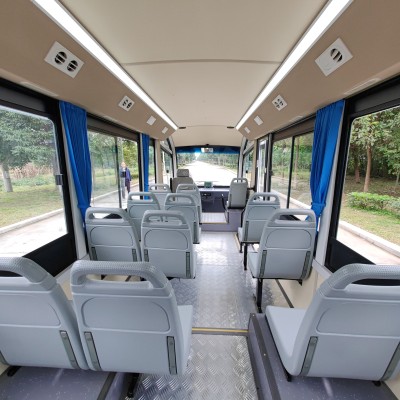

Seat

The driver's seat is made of leather fabric + high resilience PU seat, the seat and backrest can  be adjusted, the  passenger's seat  is  a  bus seat,  equipped with a two-point safety belt.

Frame

Aluminum alloy body frame, high-strength Q355 steel plate stamping and welding chassis frame, pickling phosphating electrostatic spraying and electrophoresis

anti-rust treatment.
