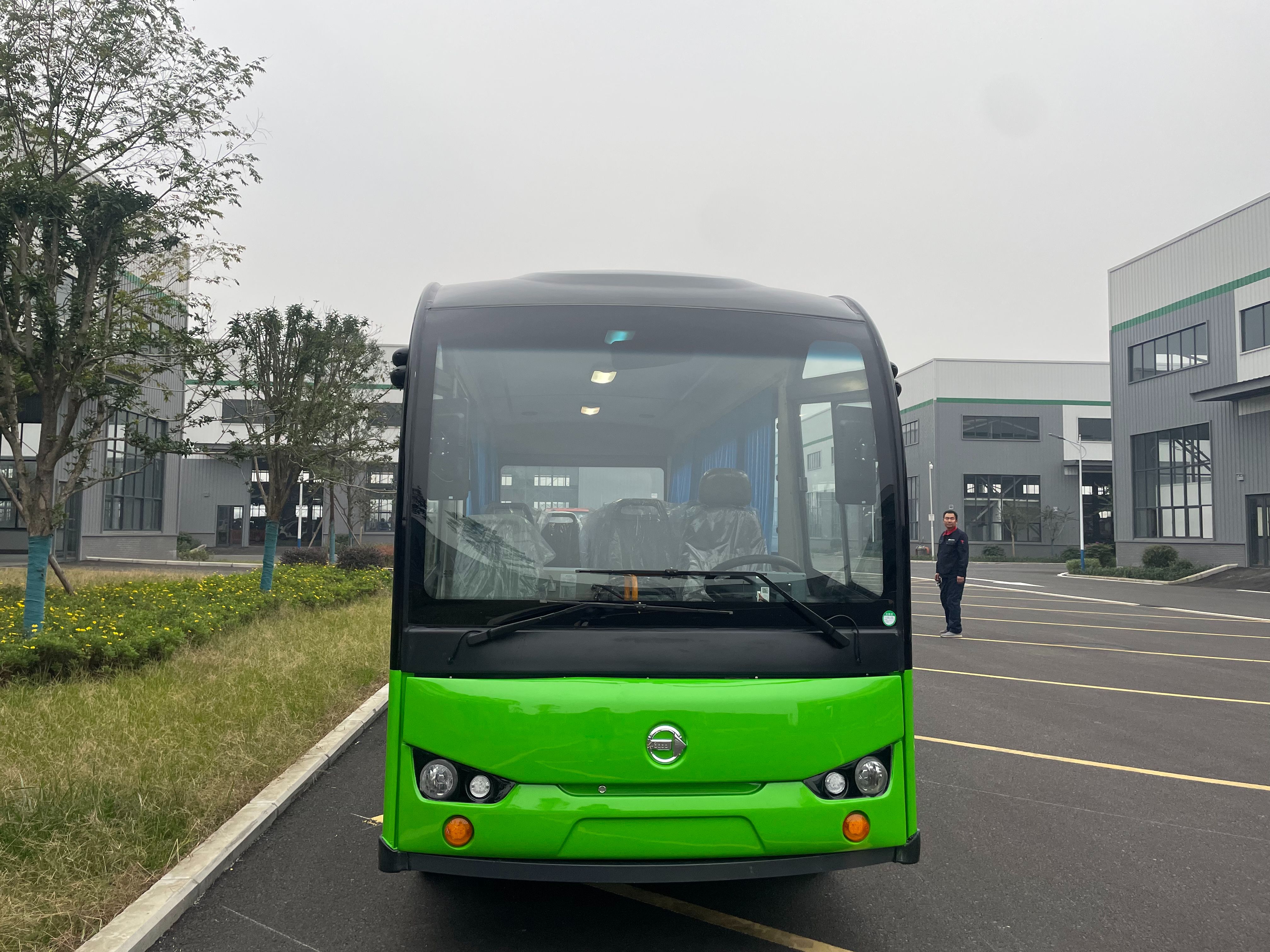

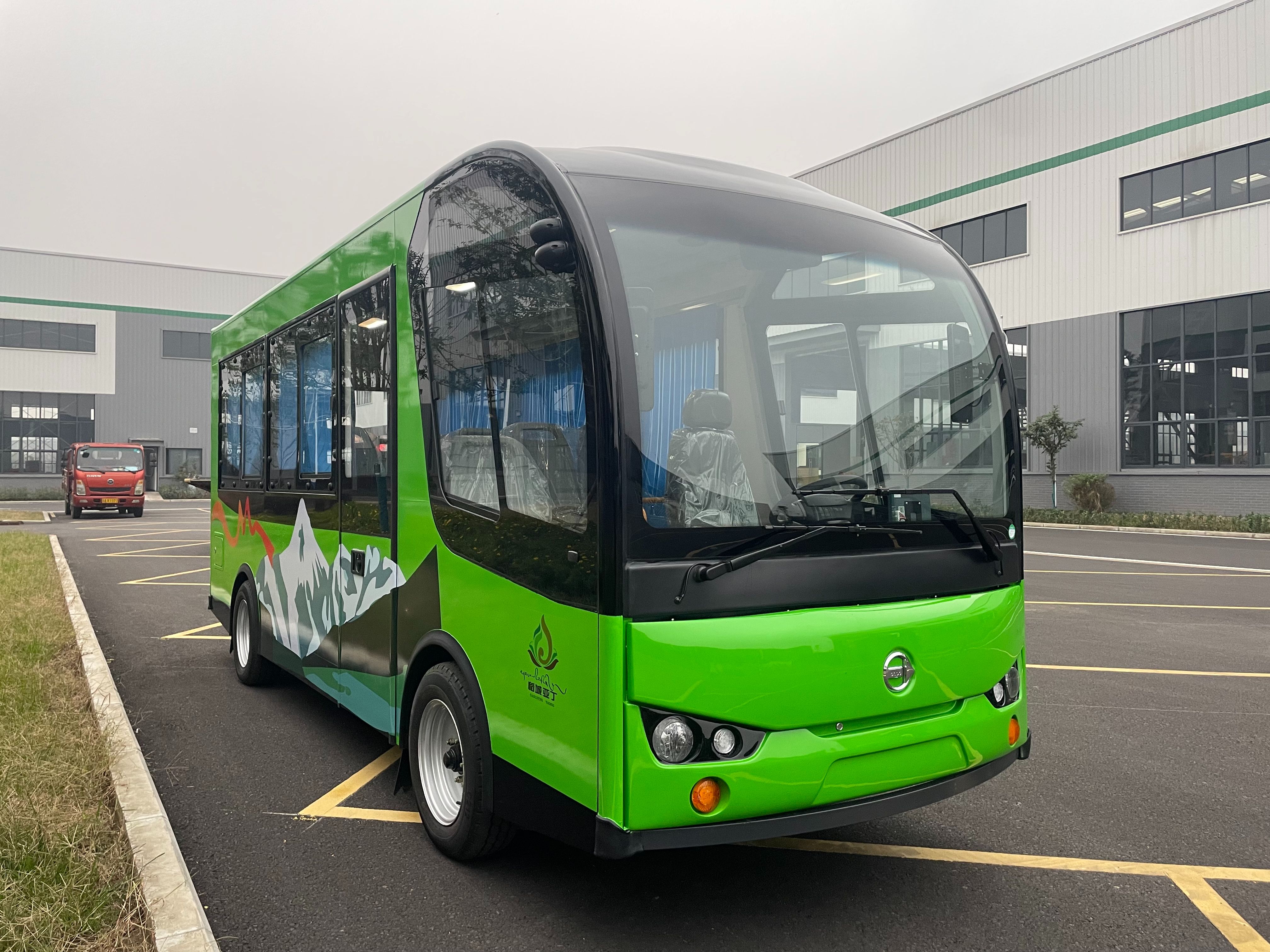

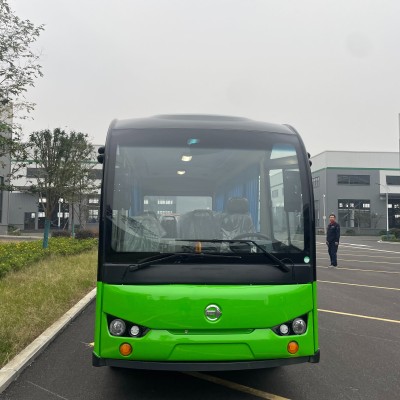

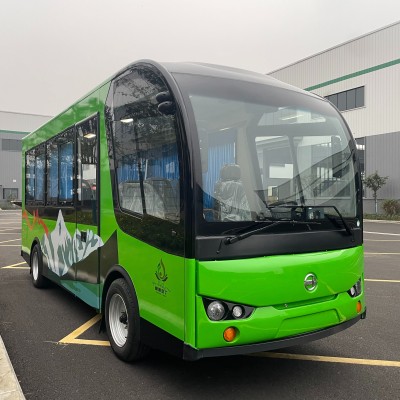

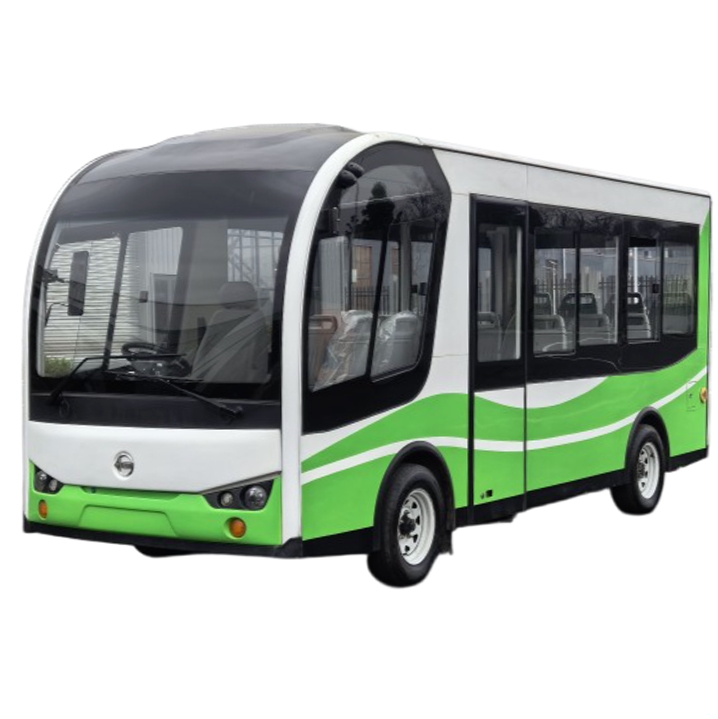

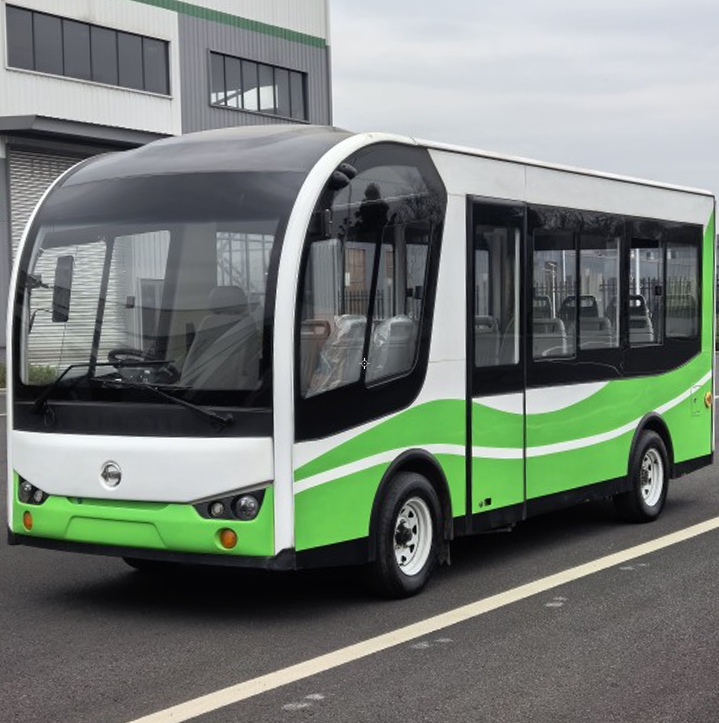

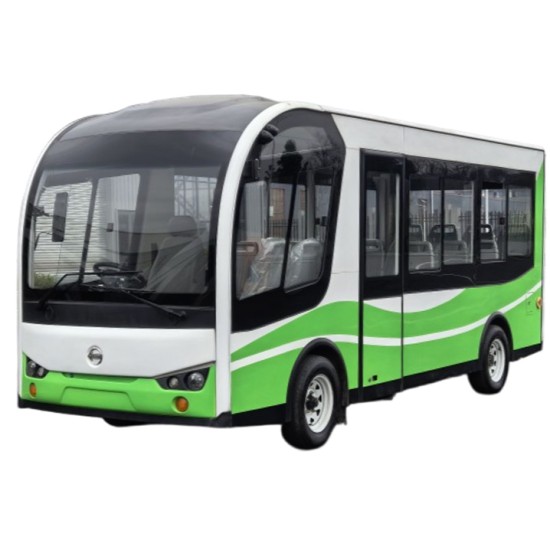

New Engineering Vehicle Specialized Engineering Transportation Electric Bus Hot Sale

Technical

parameter

Vehicle Model

FWB17

Configuration Code

L24T

Rated occupant

18 persons

Dimension

6570*1950*2550mm（L*W*H）

Top Speed

15～30km/h（adjustable）

Charging input voltage

220V

Wheelbase

3950mm

Front and rear track

1700/1700mm

Minimum ground clearance

200mm

Minimum turning radius

8.9m

Braking distance

≤5m

Gradeability

10%

Curb weight

2450kg

Maximum driving mileage

280km（Unloaded, flat road）

Electrical

system

Battery

153.6V 70Kwh Lithium iron phosphate power battery pack

Power system

144V high-efficiency permanent magnet synchronous motor control system, 15KW maintenance-free brushless permanent magnet synchronous motor.

Charger

AC220/DC144V high-efficiency intelligent vehicle-mounted charger, 8-12 hours charging time (discharging rate 80%）

Lights and signals

Headlights/turn signals/combined rear tail lights/brake lights/electric horn and reversing buzzer

Audio

Car MP3 audio player, high-fidelity speakers

Switch

Key start switch/light and wiper combined switch/warning lamp/reversing buzzer warping switch/emergency power-off switch/Strip LED interior ceiling light

Dashboard

LCD instrument(signals including voltage/electric current/mileage/speed/light/forward and rear commutation)

Speed,Drive and Reverse control

Floor-mounted electronic throttle, deluxe handle shift switch, stepless speed control system, ramp anti-skid control

Body

and chassis

Seat

Slide rail in driver seat (PU high-resilience sponge + leather fabric) adjustable front and back, adjustable seat backrest angle

Passenger position: 2+1 coach seat, equipped with a two-point automatic retractable seat belt

Frame

Aluminum alloy body frame, high-strength cold plate stamping and welding chassis frame, pickling phosphating electrostatic spraying and electrophoresis anti-rust treatment.

Body

High-strength fiberglass shell and ABS plastic molding parts, automotive-grade baking paint spraying/aluminum skeleton

Door

All-aluminum skeleton, electric outswing door

Floor

High anti-corrosion aluminum-zinc plate + aluminum alloy pattern plate double-layer floor, aluminum alloy floor skirting strip

Dashboard

Vacuum ABS leather-covered unibody dashboard

Windshield and rearview mirrors

Double-layer laminated front windshield glass + tempered glass, wide-view manual exterior mirror + enlarged interior mirror

Steering system

PEPS electric power steering system + four-way adjustable steering column, polyurethane foam steering wheel.

Front axle and suspension

Integral front axle, high-strength composite leaf springs, barrel hydraulic shock absorption

Rear axle and suspension

High-efficiency motor direct-connected high-speed ratio gear reduction integral full-floating rear axle, leaf spring + barrel hydraulic shock absorption, Hotchkiss suspension structure.

Braking system

Front disc type, rear drum type vacuum power double-circuit hydraulic driving brake system + electronic rear wheel parking brake device + Mechanical rear parking brake

Tire

225/70R15 Vacuum coarse pattern tires, steel rims.

Others

1、1 pc 1kg dry powder fire extinguisher, 1 set of vehicle tools, 1 pc 220V 2.5m charging power cord

2、High-power built-in air conditioner

3、The middle section of the vehicle is equipped with a wood grain floor

4、Display played independently behind the passenger seat/small table/USB charging port

5、TV screen/a microphone/a station announcer /a station screen

6、High-power car refrigerator

7、18 seats + 1 wheelchair space
