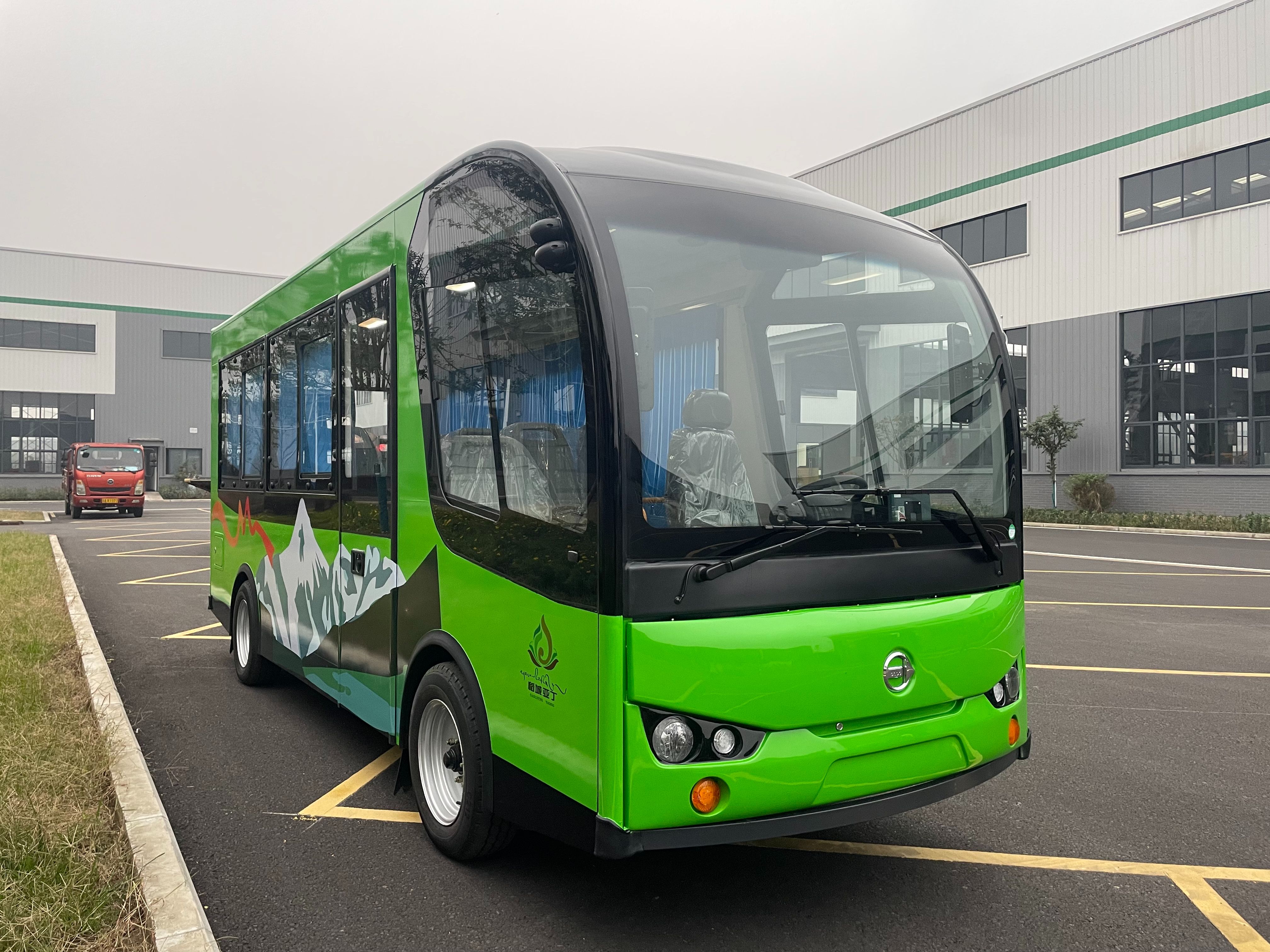

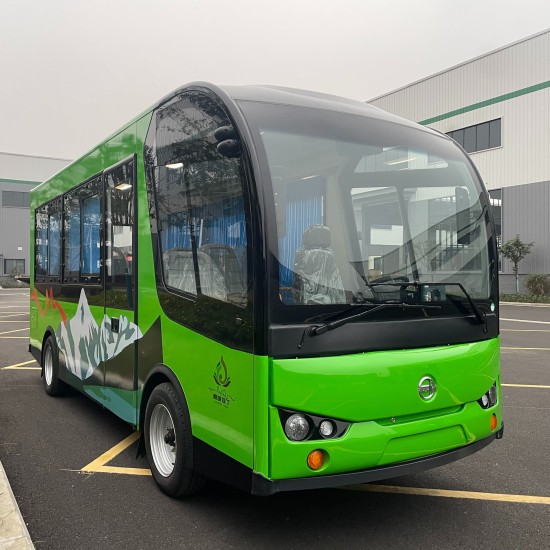

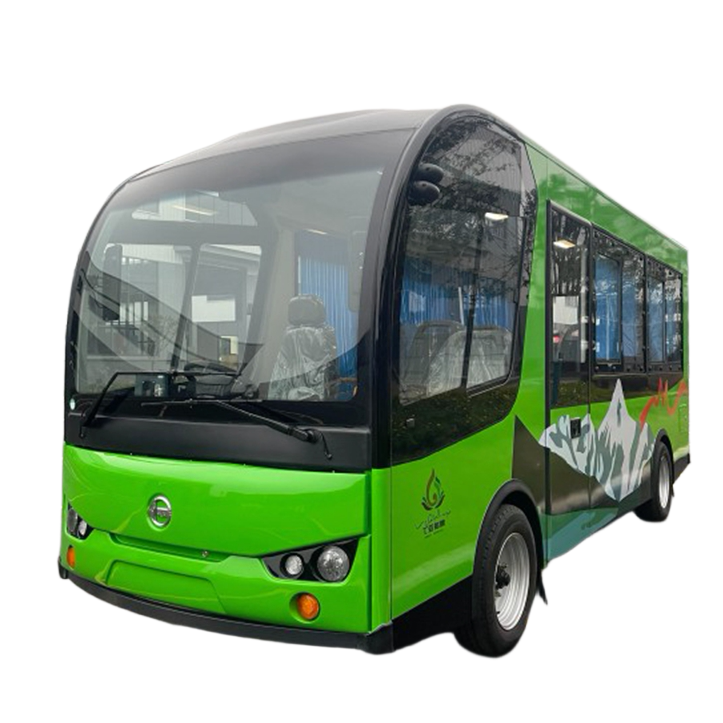

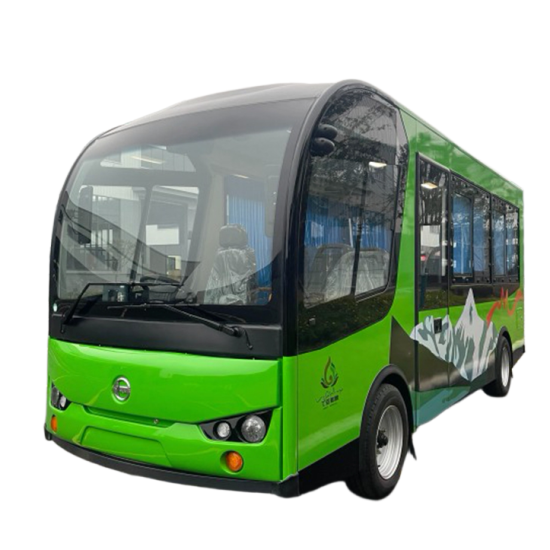

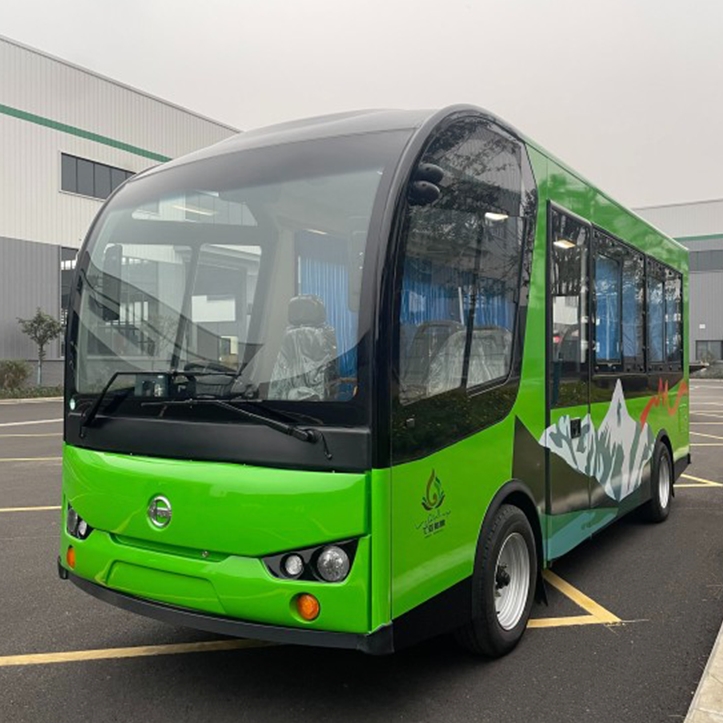

Aluminum Alloy Pattern Plate Double-Layer Floor Electric Luxurious Minibuses with High-Power Built-in Air Conditioner and Independent Display
|
Technical parameter
|
Vehicle Model |
FWB17 |
|
|
|
Configuration Code |
L24T |
|||
|
Rated occupant |
18 persons |
|||
|
Dimension |
6570*1950*2550mm（L*W*H） |
|||
|
Top Speed |
15～30km/h（adjustable） |
|||
|
Charging input voltage |
220V |
|||
|
Wheelbase |
3950mm |
Front and rear track |
1700/1700mm |
|
|
Minimum ground clearance |
200mm |
Minimum turning radius |
8.9m |
|
|
Braking distance |
≤5m |
Gradeability |
10% |
|
|
Curb weight |
2450kg |
Maximum driving mileage |
280km（Unloaded, flat road） |
|
|
Electrical system |
Battery |
153.6V 70Kwh Lithium iron phosphate power battery pack |
||
|
Power system |
144V high-efficiency permanent magnet synchronous motor control system, 15KW maintenance-free brushless permanent magnet synchronous motor. |
|||
|
Charger |
AC220/DC144V high-efficiency intelligent vehicle-mounted charger, 8-12 hours charging time (discharging rate 80%） |
|||
|
Lights and signals |
Headlights/turn signals/combined rear tail lights/brake lights/electric horn and reversing buzzer |
|||
|
Audio |
Car MP3 audio player, high-fidelity speakers |
|||
|
Switch |
Key start switch/light and wiper combined switch/warning lamp/reversing buzzer warping switch/emergency power-off switch/Strip LED interior ceiling light |
|||
|
Dashboard |
LCD instrument(signals including voltage/electric current/mileage/speed/light/forward and rear commutation) |
|||
|
Speed,Drive and Reverse control |
Floor-mounted electronic throttle, deluxe handle shift switch, stepless speed control system, ramp anti-skid control |
|||
|
Body and chassis
|
Seat |

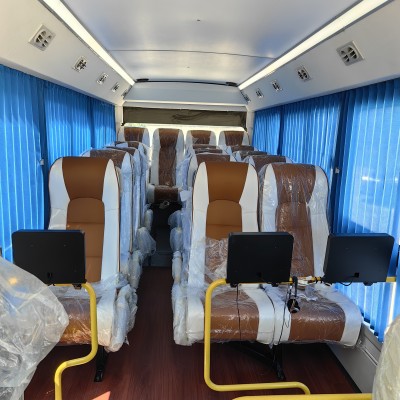

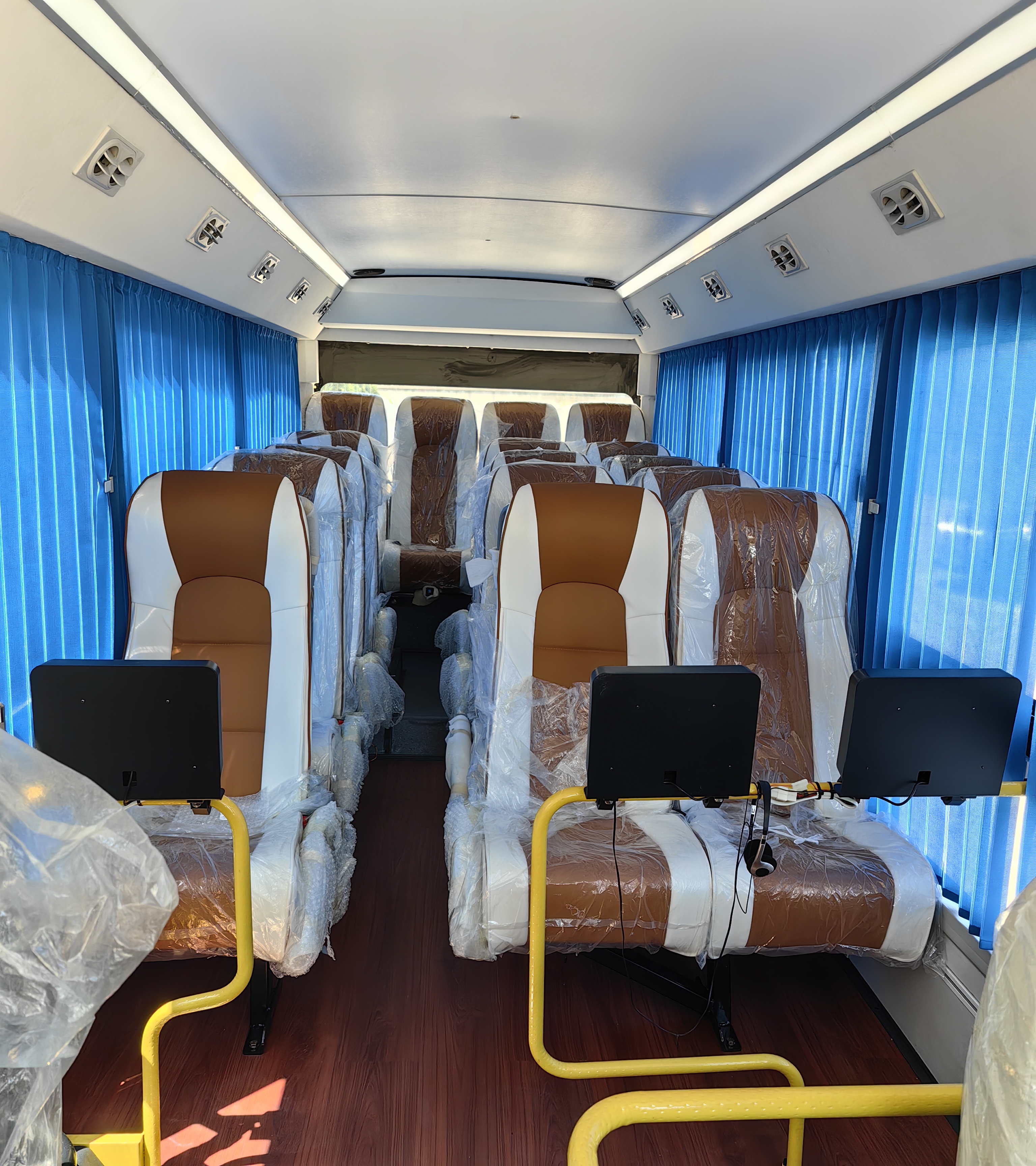

Slide rail in driver seat (PU high-resilience sponge + leather fabric) adjustable front and back, adjustable seat backrest angle Passenger position: 2+1 coach seat, equipped with a two-point automatic retractable seat belt |
||
|
Frame |
Aluminum alloy body frame, high-strength cold plate stamping and welding chassis frame, pickling phosphating electrostatic spraying and electrophoresis anti-rust treatment. |
|||
|
Body |
High-strength fiberglass shell and ABS plastic molding parts, automotive-grade baking paint spraying/aluminum skeleton |
|||
|
Door |
All-aluminum skeleton, electric outswing door |
|||
|
Floor |
High anti-corrosion aluminum-zinc plate + aluminum alloy pattern plate double-layer floor, aluminum alloy floor skirting strip |
|||
|
Dashboard |
Vacuum ABS leather-covered unibody dashboard |
|||
|
Windshield and rearview mirrors |
Double-layer laminated front windshield glass + tempered glass, wide-view manual exterior mirror + enlarged interior mirror |
|||
|
Steering system |
PEPS electric power steering system + four-way adjustable steering column, polyurethane foam steering wheel. |
|||
|
Front axle and suspension |
Integral front axle, high-strength composite leaf springs, barrel hydraulic shock absorption |
|||
|
Rear axle and suspension |
High-efficiency motor direct-connected high-speed ratio gear reduction integral full-floating rear axle, leaf spring + barrel hydraulic shock absorption, Hotchkiss suspension structure. |
|||
|
Braking system |
Front disc type, rear drum type vacuum power double-circuit hydraulic driving brake system + electronic rear wheel parking brake device + Mechanical rear parking brake |
|||
|
Tire |
225/70R15 Vacuum coarse pattern tires, steel rims. |
|||
|
Others |
1、1 pc 1kg dry powder fire extinguisher, 1 set of vehicle tools, 1 pc 220V 2.5m charging power cord 2、High-power built-in air conditioner 3、The middle section of the vehicle is equipped with a wood grain floor 4、Display played independently behind the passenger seat/small table/USB charging port 5、TV screen/a microphone/a station announcer /a station screen 6、High-power car refrigerator 7、18 seats + 1 wheelchair space |
|||
