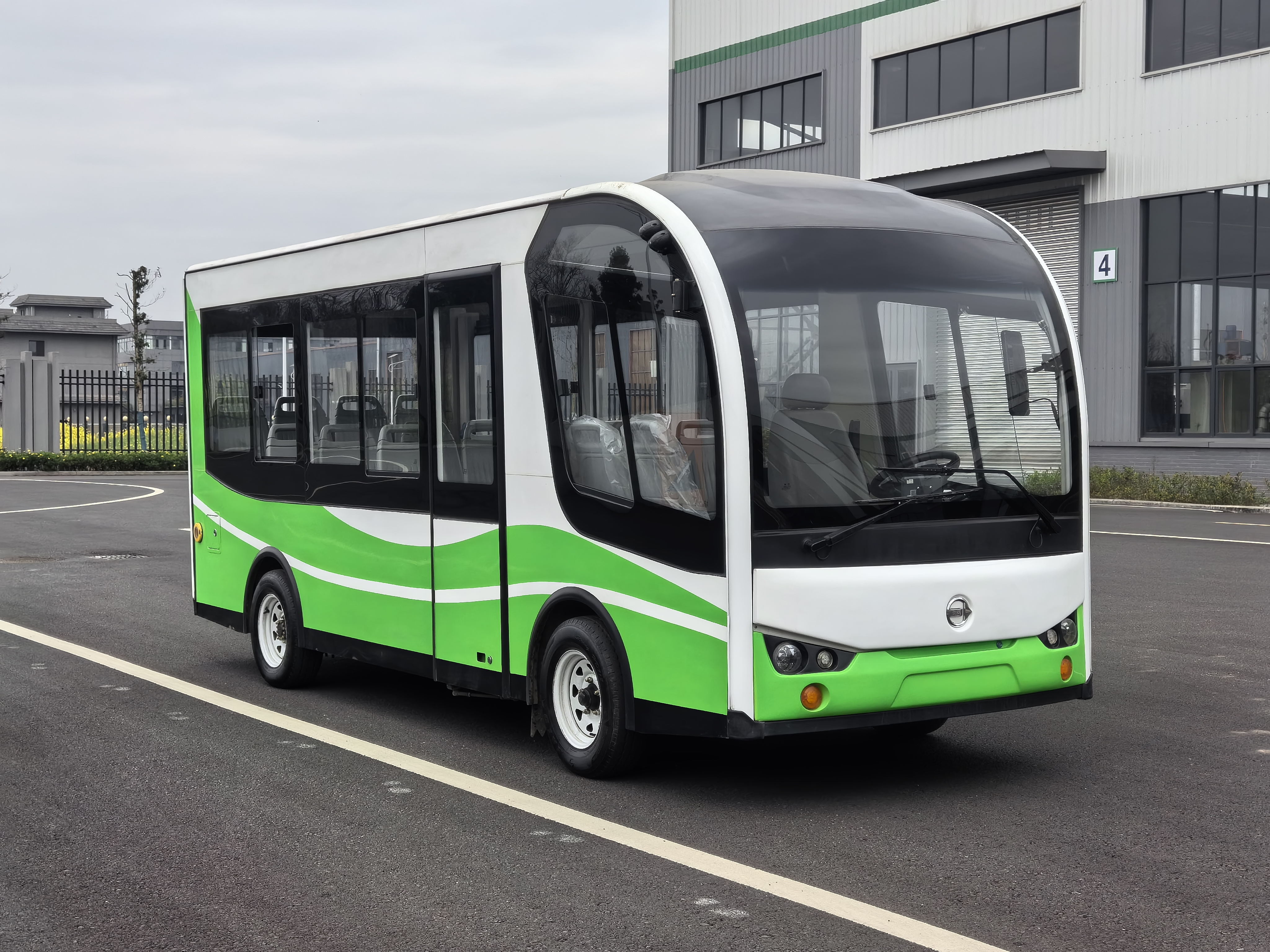

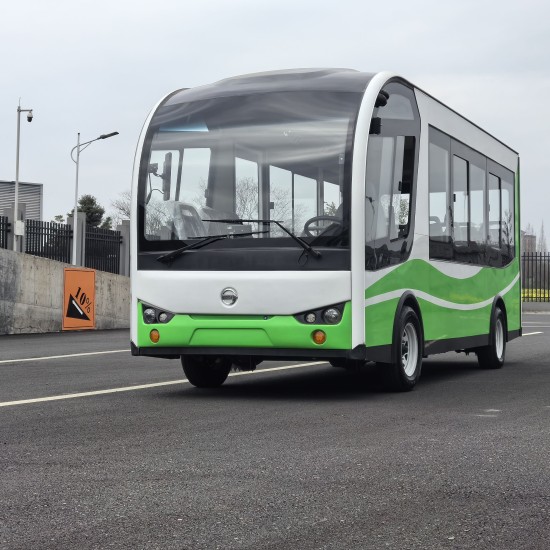

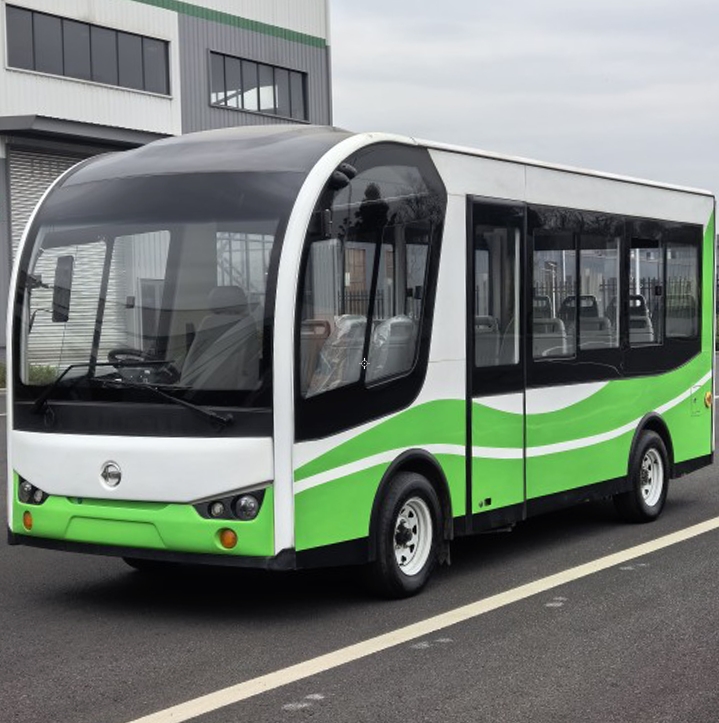

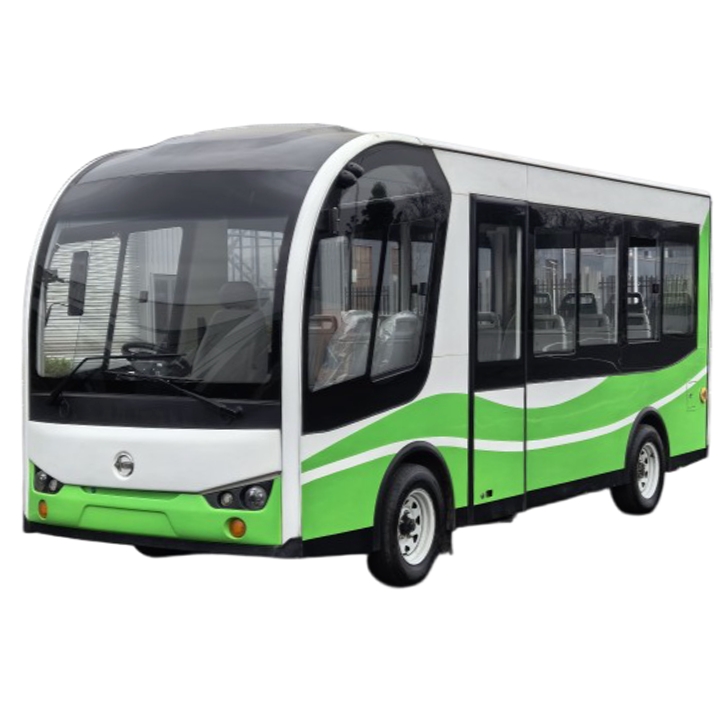

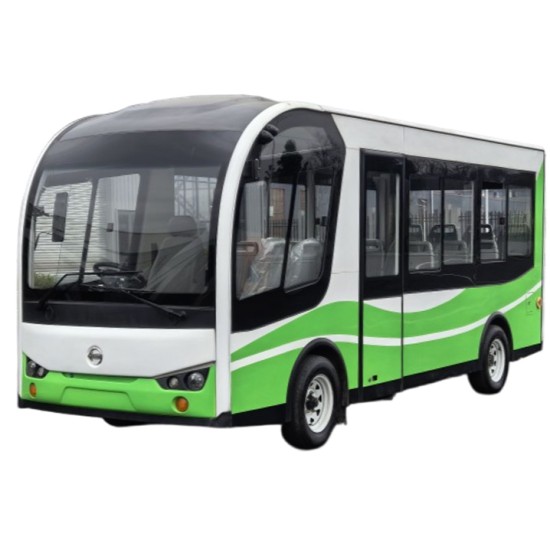

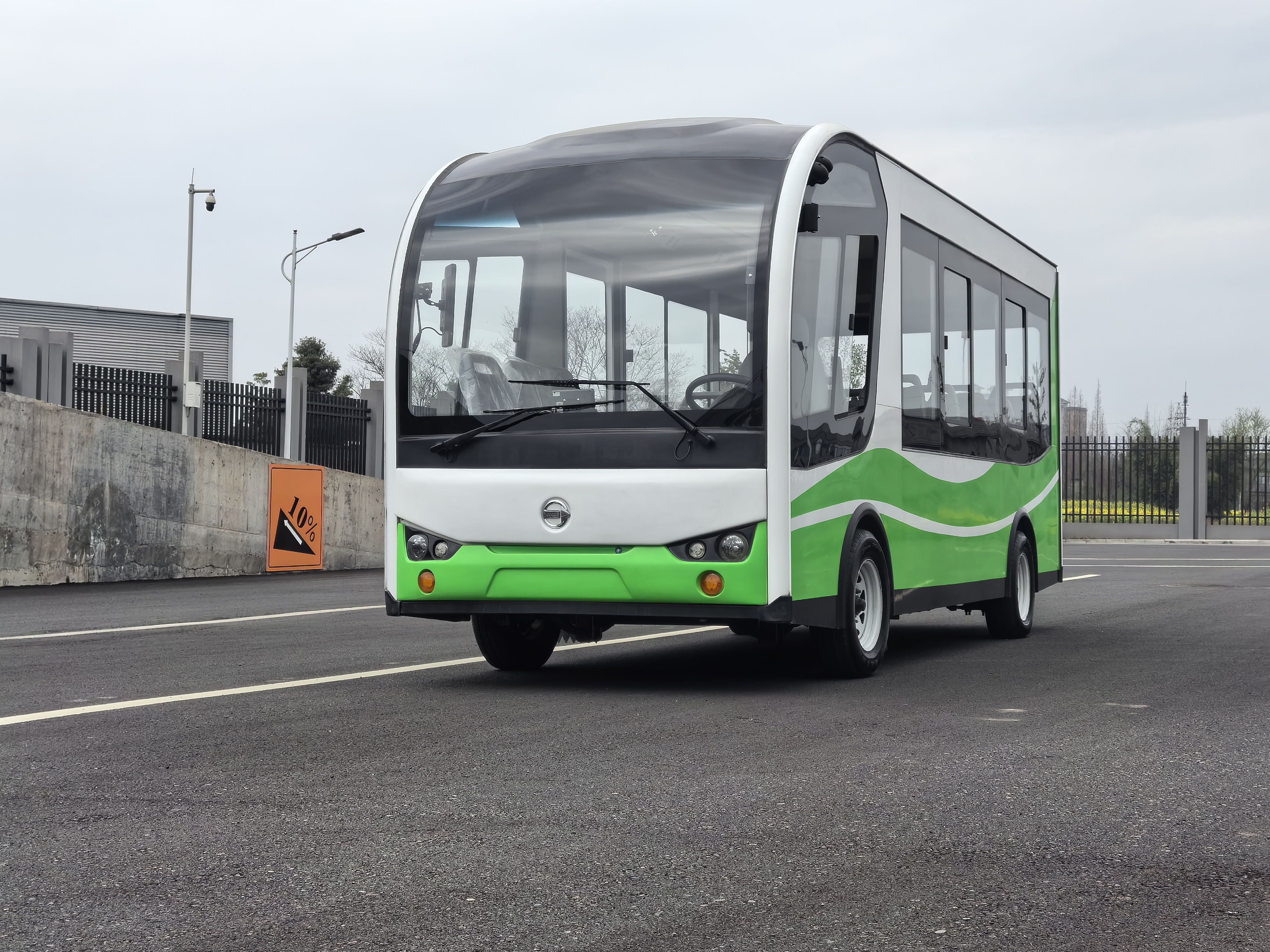

Daoda New Products Electric Mini Bus Sightseeing Shuttle Bus Wholesale Low Price for Tourism Transportation
|
Technical parameter
|
Vehicle Model |
FB17 |
|
|
|
Configuration Code |
|
|||
|
Rated occupant |
17~19 persons |
|||
|
Dimension |
5790*1800*2450mm（L*W*H） 1900mm（Interior height）
|
|||
|
Top Speed |
15～27km/h（adjustable） |
|||
|
Charging input voltage |
220V or 380V |
|||
|
Wheelbase |
3200mm |
Front and rear track |
1563/1570mm |
|
|
Minimum ground clearance |
150mm |
Minimum turning radius |
7.4m |
|
|
Braking distance |
≤5m |
Gradeability |
15% |
|
|
Curb weight |
（1950~2500kg） |
Maximum driving mileage |
100~450k(configured as required) |
|
|
Electrical system |
Battery |
Large-capacity lithium iron phosphate power battery packs (configured as required)。 |
||
|
Power system |
150V high efficiency permanent magnet synchronous motor control system, 15/30KW high efficiency permanent magnet synchronous motor. |
|||
|
Charger |
AC220/DC144V high-efficiency intelligent vehicle-mounted charger or 380V charging post (depending on the battery pack capacity) |
|||
|
Lights and signals |
Headlamp/turn signals/combined rear tail lights/brake lights/electric horn and reversing buzzer |
|||
|
Audio |
Car MP3 audio player, high-fidelity speakers |
|||
|
Switch |
Key start switch/light and wiper combined switch/Warning light rocker switch/emergency power-off switch |
|||
|
Dashboard |
LCD instrument(signals including voltage/electric current/mileage/speed/light/forward and rear commutation) |
|||
|
Speed,Drive and Reverse control |
Floor-mounted electronic throttle, deluxe handle shift switch, stepless speed control system, ramp anti-skid control |
|||
|
Body and chassis
|
Seat |
Slide rail in driver seat (PU high-resilience sponge + leather fabric) adjustable front and back, adjustable seat backrest angle Passenger position: bus seat with two-point seat belts |
||
|
Frame |
Aluminum alloy body skeleton, high-strength Q355 steel plate stamping and welding chassis frame, pickling phosphating electrostatic spraying and electrophoresis anti-rust treatment. |
|||
|
Body |
High-strength fiberglass shell and ABS plastic molding parts, automotive-grade baking paint spraying/aluminum skeleton |
|||
|
Door |
All-aluminum skeleton, electric outswing door |
|||
|
Floor |
High anti-corrosion aluminum-zinc plate + aluminum alloy pattern plate double-layer floor |
|||
|
Dashboard |
Vacuum ABS leather-covered unibody dashboard |
|||
|
Windshield and rearview mirrors |
Double-layer laminated front windshield glass + tempered glass, wide-view manual exterior mirror + enlarged interior mirror |
|||
|
Steering system |
PEPS electric power steering system + four-way adjustable steering column, polyurethane foam steering wheel. |
|||
|
Front axle and suspension |
Integral front axle, high-strength composite leaf springs, barrel hydraulic shock absorption |
|||
|
Rear axle and suspension |
High-efficiency motor direct-connected high-speed ratio gear reduction integral full-floating rear axle, leaf spring + barrel hydraulic shock absorption, Hotchkiss suspension structure. |
|||
|
Braking system |
Front disc type, rear drum type vacuum power double-circuit hydraulic driving brake system. Electronic EPB rear parking brake |
|||
|
Tire |
185R14C vacuum radial tires, steel rims. |
|||
|
Others |
1 pc 1kg dry powder fire extinguisher, 1 set of vehicle tools, 1 pc 220V 2.5m charging power cord |
|||
|
Optional |
High-power built-in electric air conditioner with air duct |
|||
