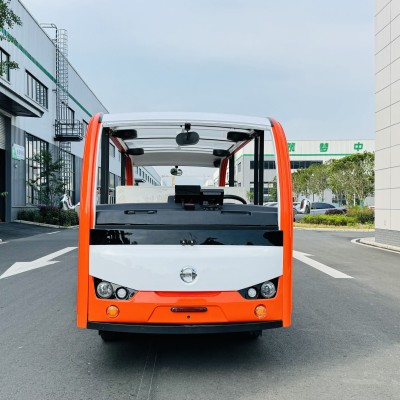

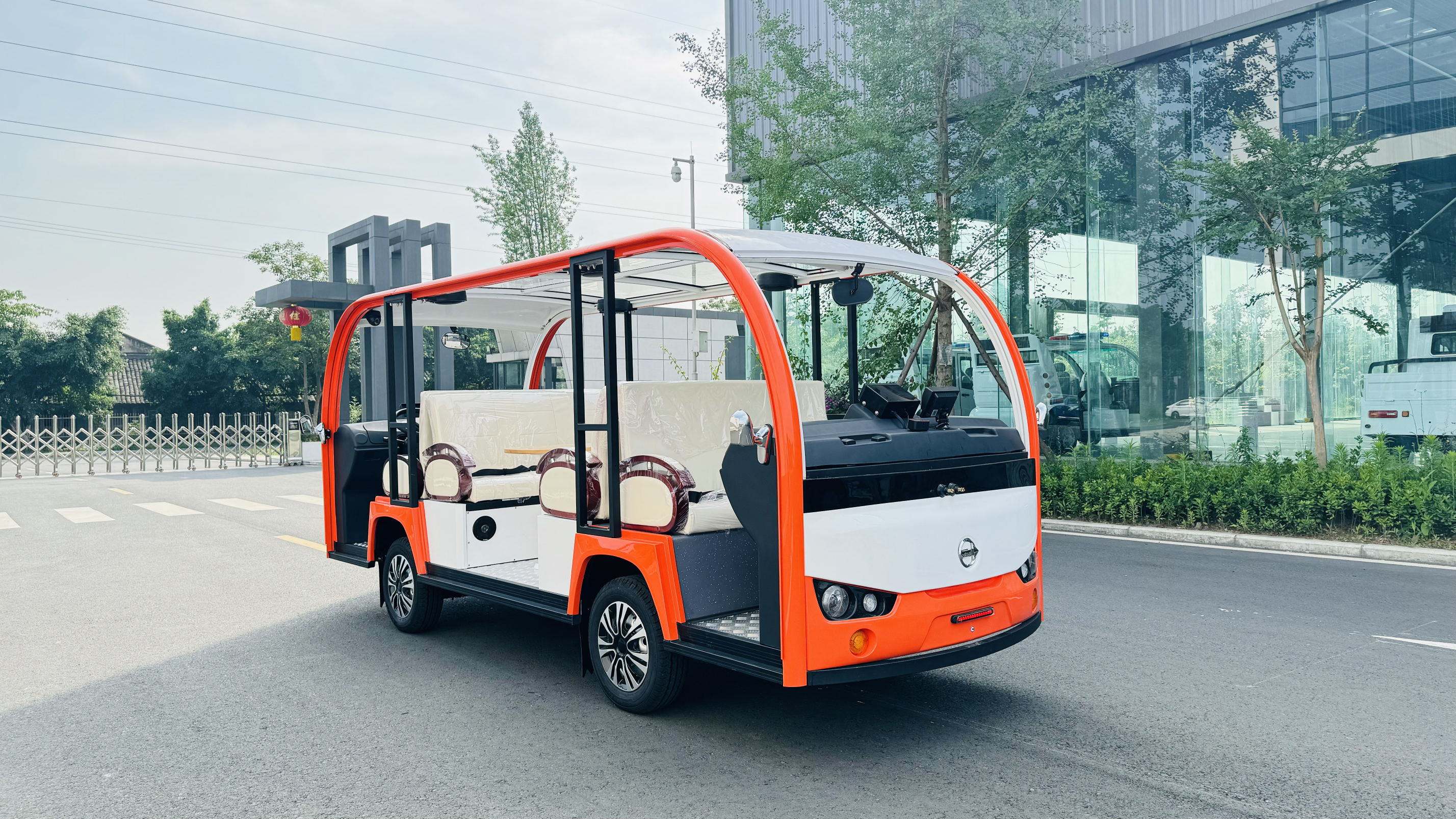

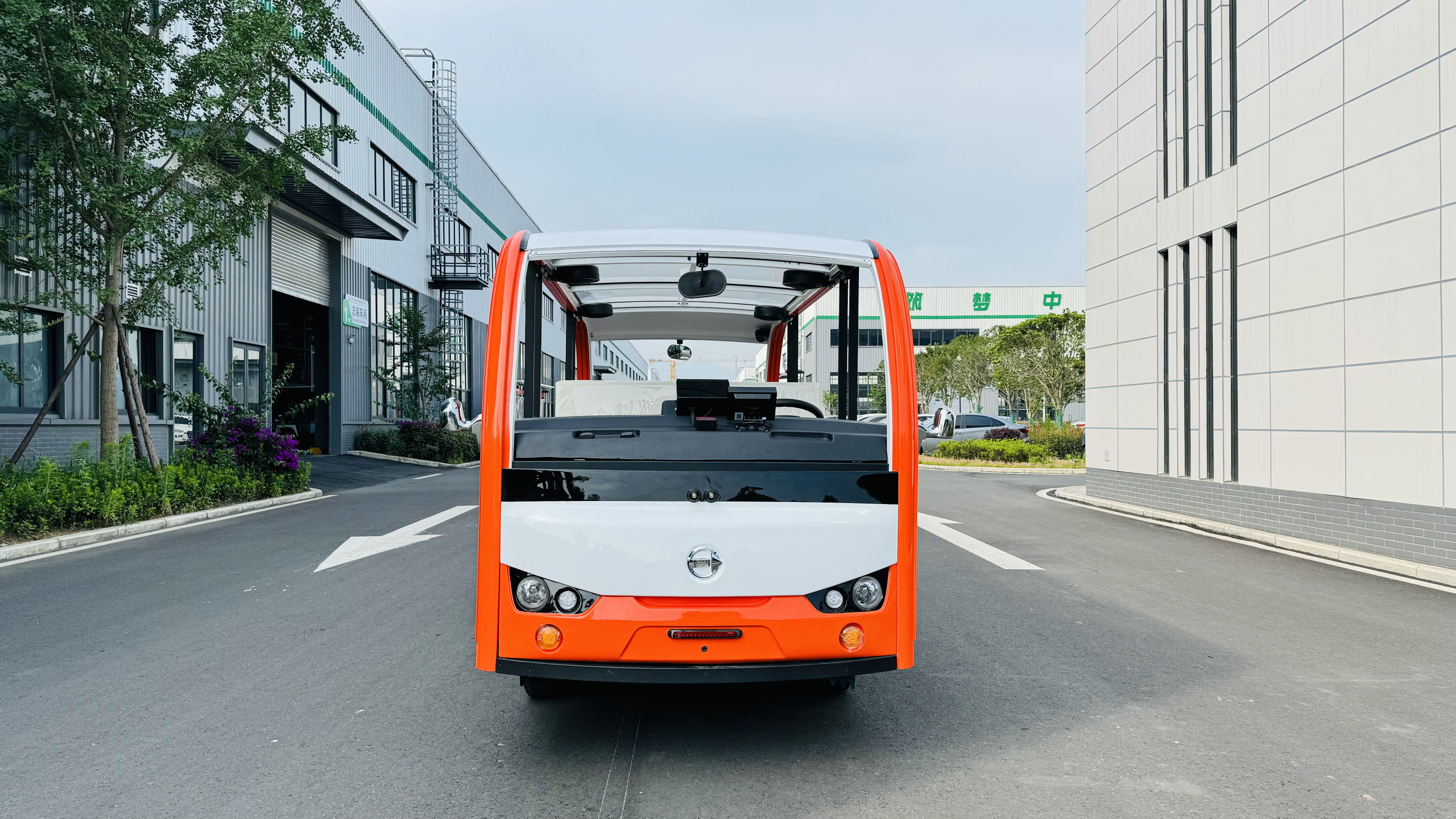

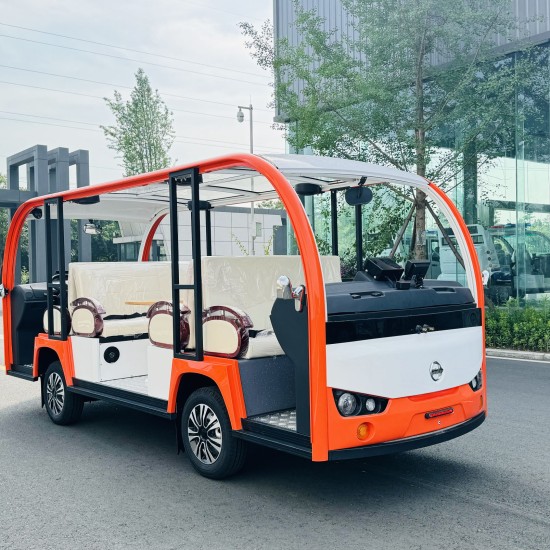

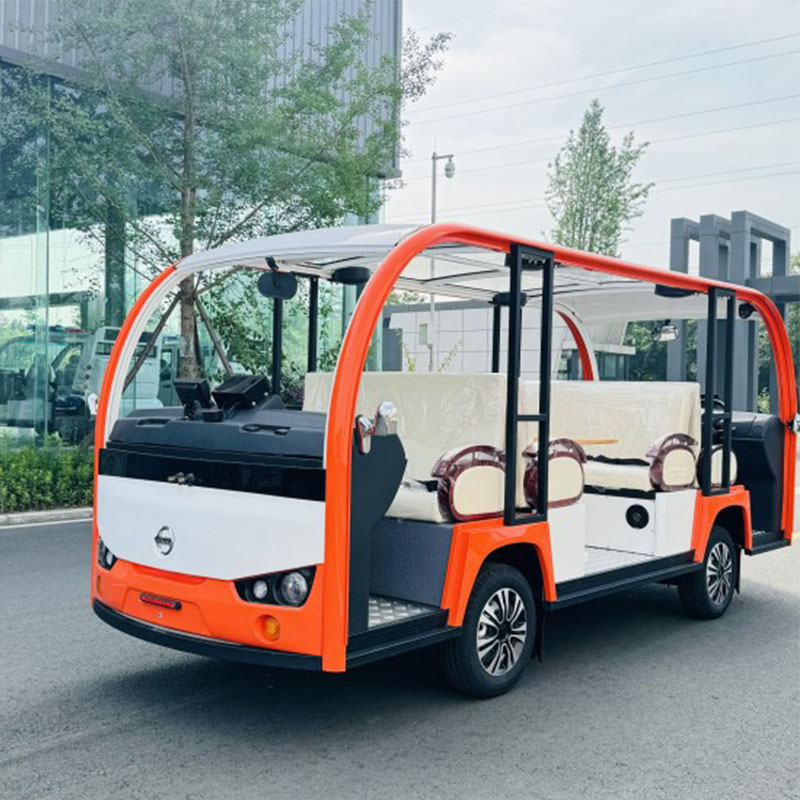

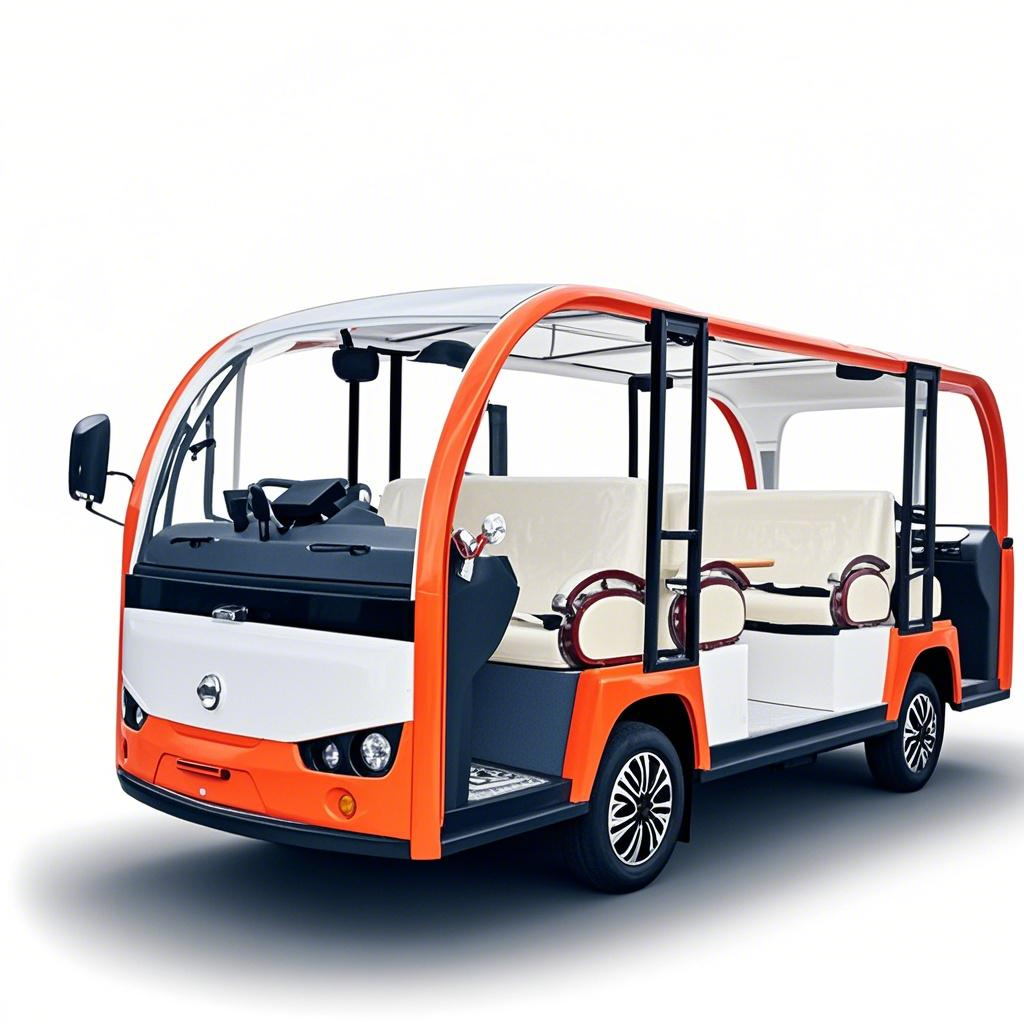

Beautiful New Style Electric Double-haed Car with 10 Seats

 T

 E

 C

 H

 N

 I

 C

 P

 A

 R

 A

 M

 E

 T

 E

 R

Vehicle model

FS10

Configuration code

QM12

Rated occupant

10人

Dimensions

5000×1570×1950mm±10%（L*W*H）

Top speed

15～30km/h（Adjustable）

Charging input voltage

220V

Wheelbase

2290mm

Front and

  rear track

1300/1280mm

Minimum ground clearance

150mm

Minimum

turning

 radius

5.1m

Braking distance

≤6m

Gradeability

15%

Curb weight

1250kg

Maximum

driving

  mileage

80km

E

L

E

C

T

R

I

C

A

L

S

Y

S

T

E

M

Battery

72V150AH maintenance-free lead-acid power battery pack (8V9pcs)

Power system

72V high-efficiency MOSFET AC motor control system, 7.5kw maintenance-free brushless AC inverter motor.

Charger

AC220/DC72V high-efficiency on-board intelligent charger, charging time 8-10 hours (discharge rate 80%)

Lights and

Signals

Headlights, turn signals, combined rear taillights, brake lights, electric horn and reversing buzzer.

Audio

Car MP3 audio player, Hi-Fi speakers.

Switch

Key start switch, light and wiper combination switch, warning light rocker switch, emergency power off switch.

Meter

LCD instrument (including voltage, current, speed, mileage, lights, front and rear commutation and other signals).

Speed,Drive and

Reverse control

Electronic throttle, luxury knob-type shift switch, stepless speed regulation system, anti- slip control on slopes.

 B

 O

 D

 Y

 A

 N

 D

 C

 H

 A

 S

 I

 S

Seat

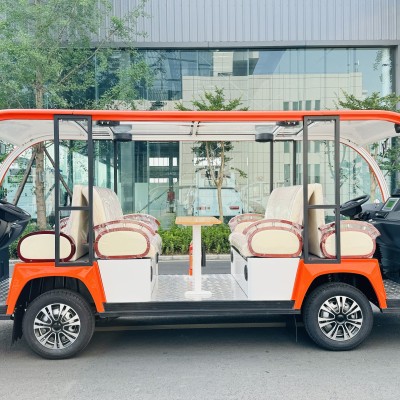

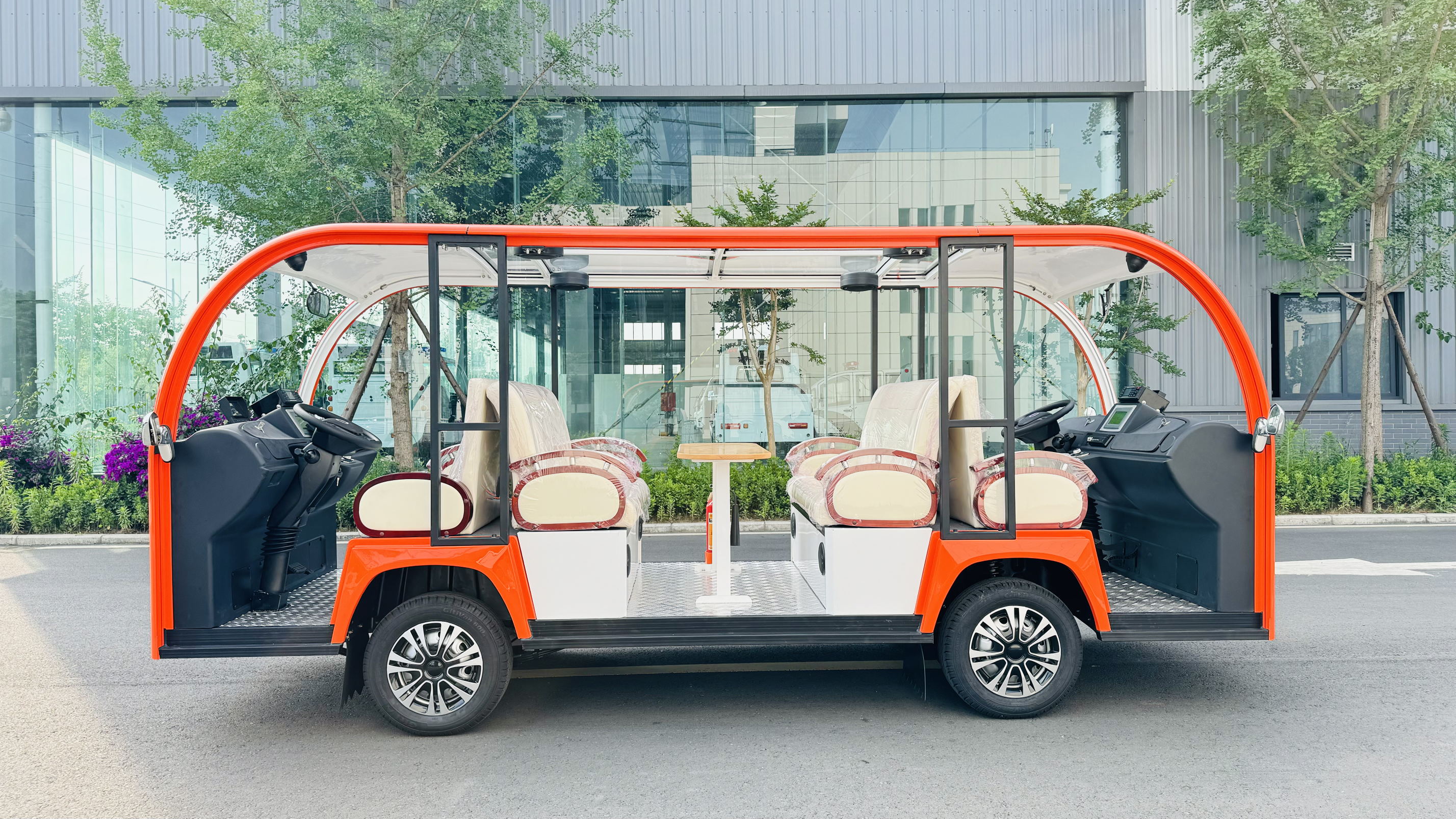

1+1 single seats in the first row \ fourth row (leather fabric + high resilience PU, corner adjuster, driver's seat with slide rails adjustable front and rear, off-white) Three-person seats in the middle, a small table is reserved in the middle, equipped with two-point safety belts, and safety protection ropes on both sides of the body.

Body and frame

Aluminum alloy body frame, high-strength rectangular steel tube welded chassis frame, electrostatic spraying and electrophoresis anti-rust treatment.

Body, Closed Doors

High-strength FRP shell and ABS molded parts, automotive-grade paint/aluminum skeleton.

Floor

High anti-corrosion aluminum-zinc sheet + aluminum alloy pattern board double-layer floor, aluminum alloy floor hemline.

Dashboard

Polyurethane foamed one-piece instrument panel with locking access cover and reserved air conditioning outlet for defrosting.

Windshields and mirrors

Double-layer laminated front windshield, small exterior mirror + interior mirror, two-speed wide-field wiper with wide field of view, glass washing function.

Steering system

Polyurethane softened steering wheel, four-way adjustable steering column, electrically assisted EPS, High-efficiency rack and pinion type direction machine with gap compensation.

Front axle and suspension

MacPherson independent suspension (coil spring + cylinder hydraulic shock absorption).

Rear axle and suspension

High-efficiency motor, direct-connected high-speed ratio gear reduction, integral rear axle, leaf spring + barrel hydraulic shock absorber, non-independent suspension.

Braking system

Front disc, rear drum brake, dual circuit hydraulic service brake, electronic EPB rear parking brake.

Tire

165/70R13C vacuum radial tires, steel rims.

Bumper

Front and rear steel bumpers with rubber protective corners.

Other

1kg carbon dioxide fire extinguishers, a set of on-board tools, and 1 220V2.5m charging power cord.

1. Add 2 sets of (front and rear) 360-degree driving camera systems; 2. The ceiling is transparent with organic film (panorama)
