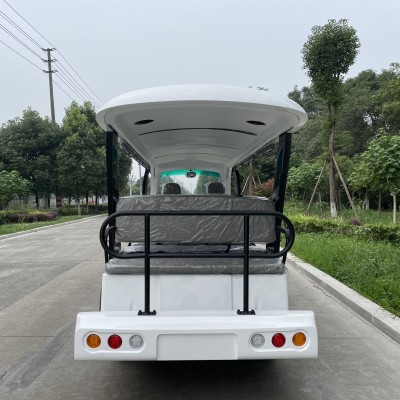

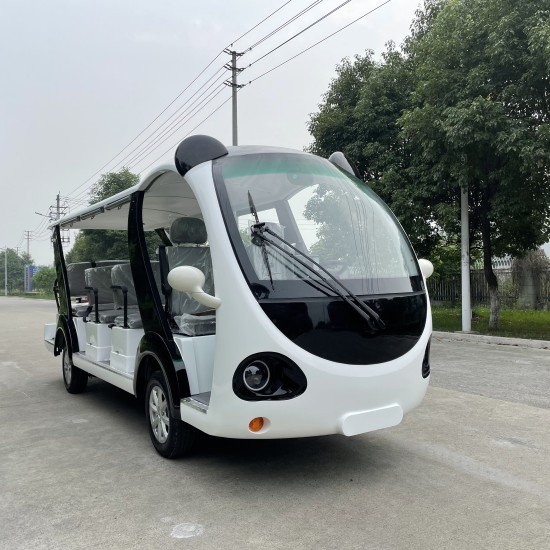

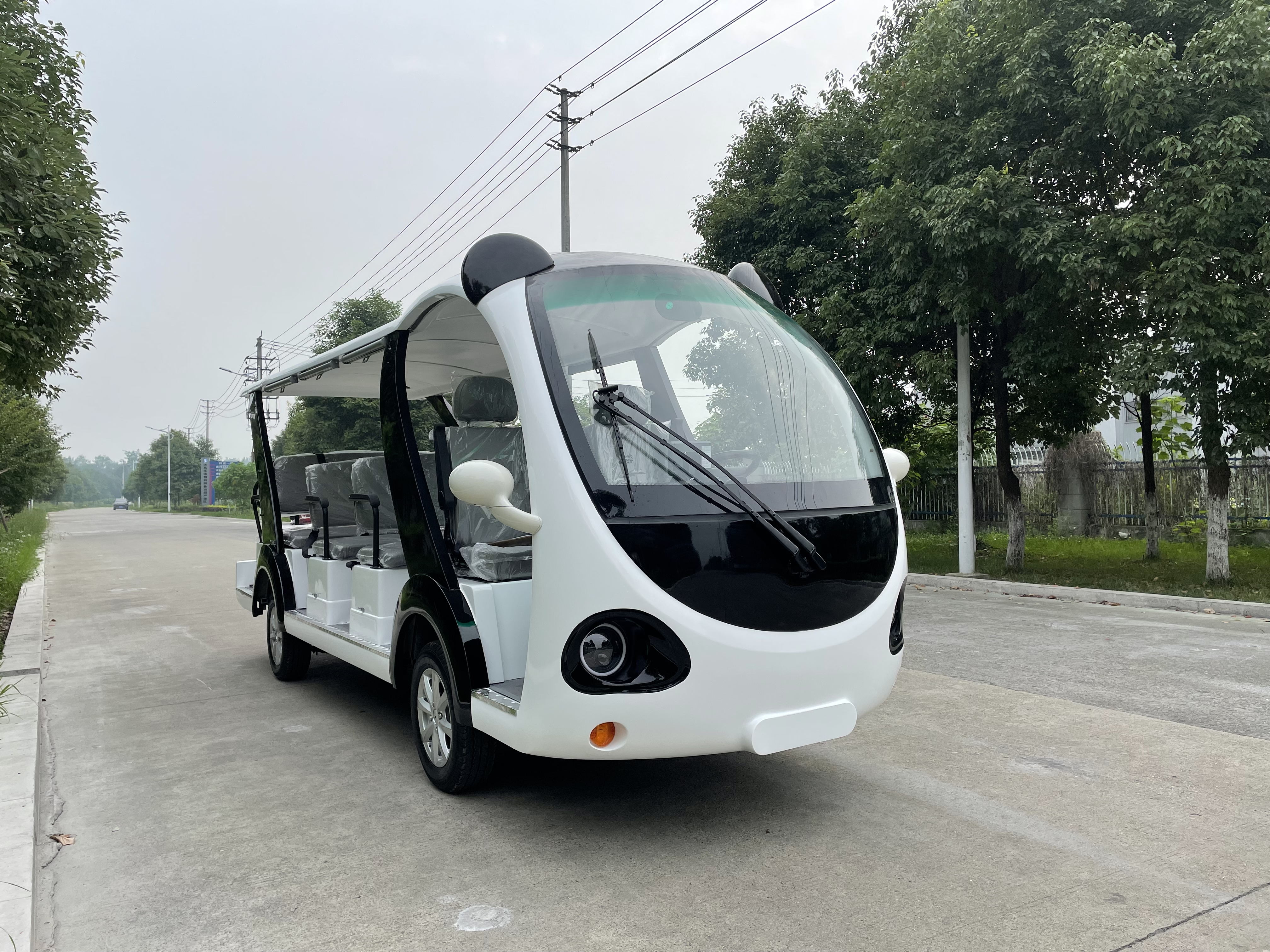

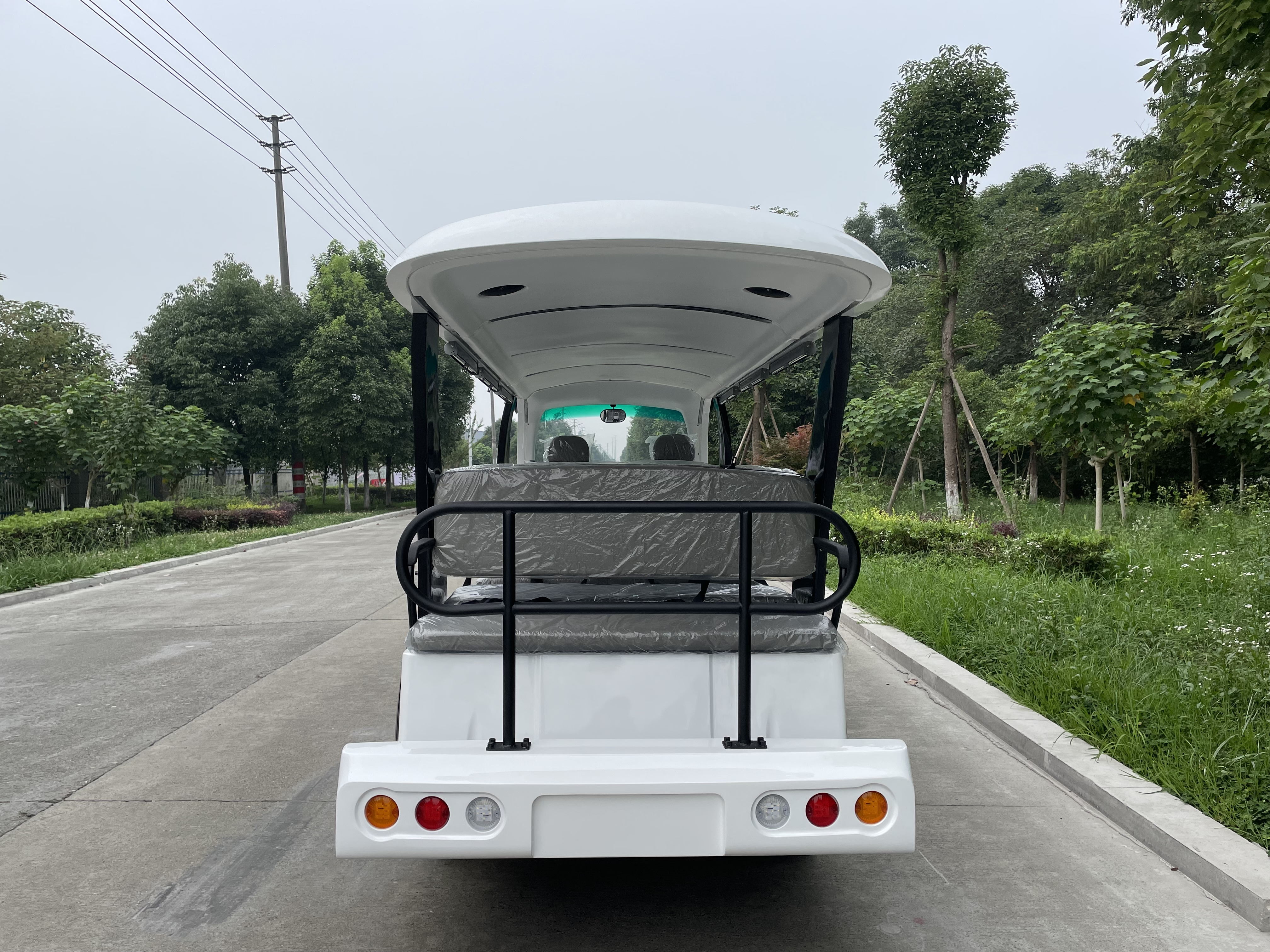

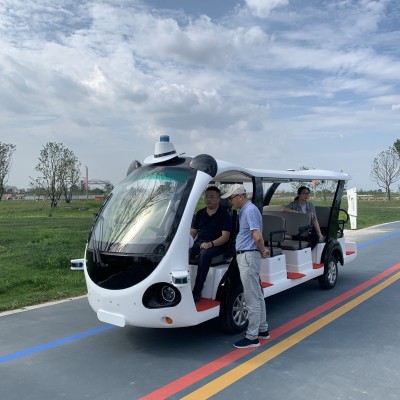

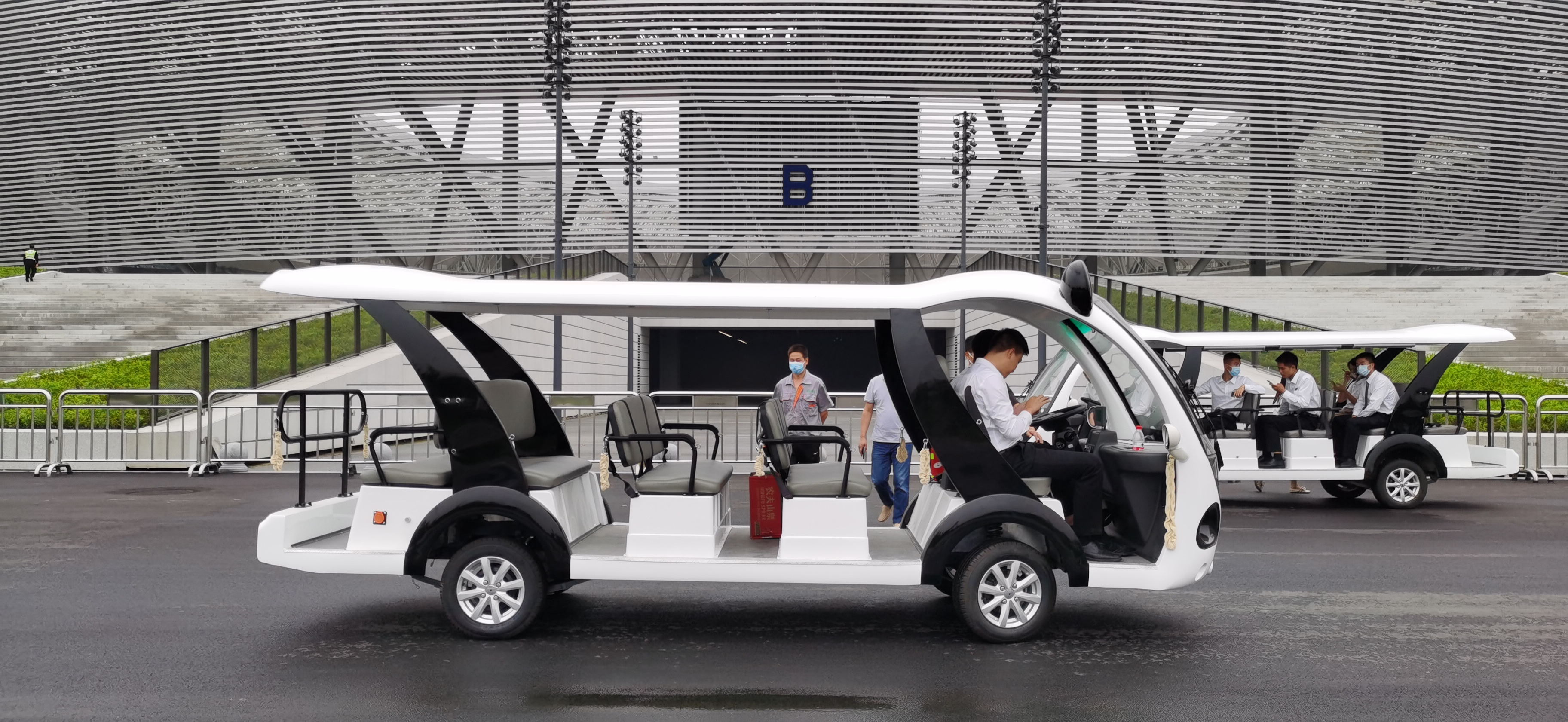

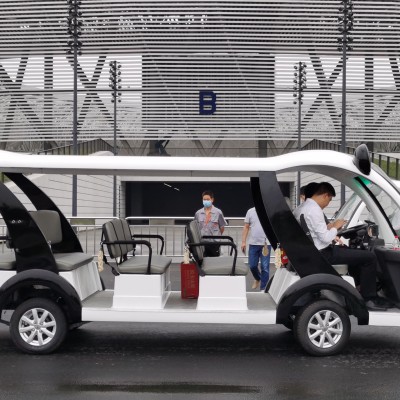

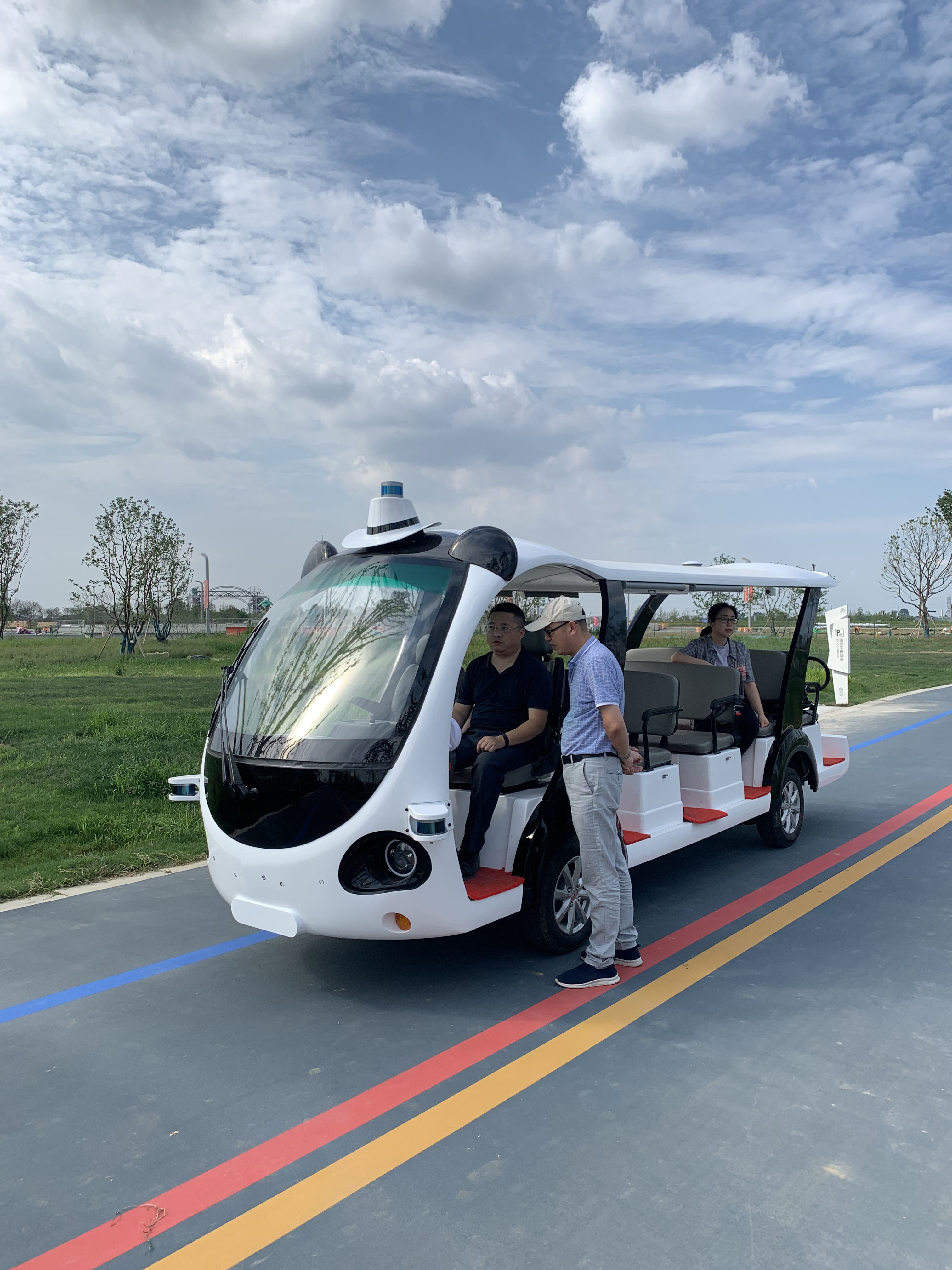

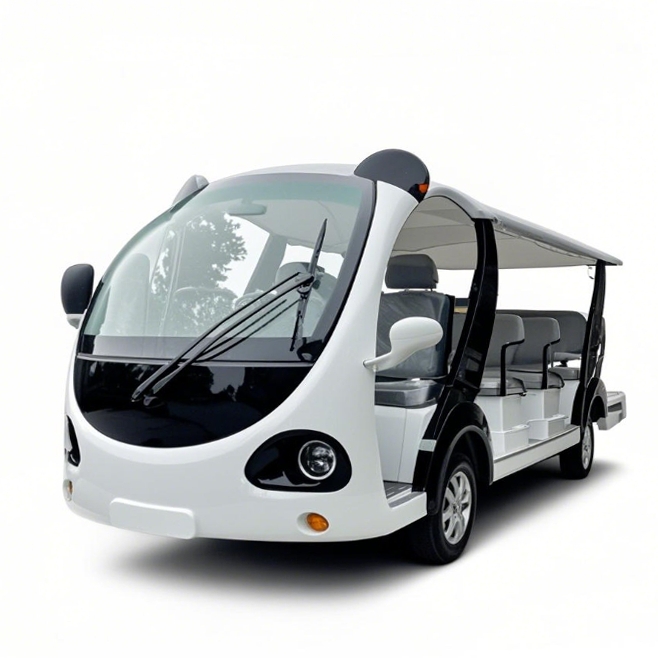

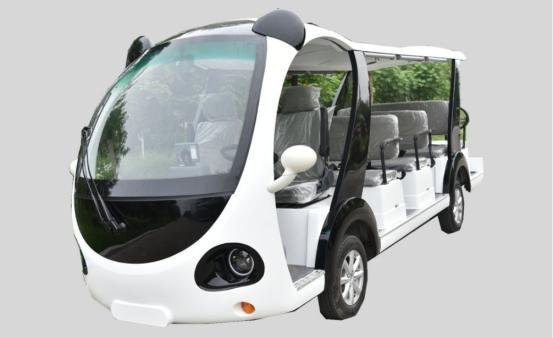

Battery Powered Stable 14 Seats Electric Panda Sightseeing Car
|
T e c h n i c a l
p a r a m e t e r |
Vehicle model |
PD14 |
|
|
|
Configuration code |
QM13 |
|||
|
Rated occupant |
14 persons |
|||
|
Dimensions |
5730× 157=34× 2030mm（L*W*H） |
|||
|
Top speed |
15～30km/h（ adjustable） |
|||
|
Charging input voltage |
220V |
|||
|
Wheelbase |
2760mm |
Front and rear track |
1300/ 1280mm |
|
|
Minimum ground clearance |
150mm |
Minimum turning radius |
5.7m |
|
|
Braking distance |
≤6m |
Gradeability |
15% |
|
|
Curb weight |
1350kg |
Maximum driving mileage |
100km |
|
|
E l e c t r i c a l
S y s t e m |
Battery |
72V120AH maintenance-free lead-acid power battery pack. |
||
|
Power system |
72V high efficiency MOSFET AC motor control system, 5kw maintenance free brushless AC variable frequency motor. |
|||
|
Motor
|
7.5kw maintenance-free carbon-free brushless AC inverter motor. |
|||
|
Charger |
AC220/DC72V high-efficiency vehicle-mounted intelligent charger, charging time is 8- 10 hours (discharge rate is 80%). |
|||
|
Lights and Signals |
Headlights, turn signals, combined rear tail lights, brake lights, electric horn and reversing buzzer. |
|||
|
Audio |
Car MP3 audio player, Hi-Fi speakers. |
|||
|
Switch |
Key start switch, light and wiper combination switch, warning light rocker switch, emergency power off switch. |
|||
|
Meter |
LCD instrument (including voltage, current, speed, mileage, light, front and rear commutation and other signals). |
|||
|
Speed,Drive and Reverse control |
Electronic throttle, luxury knob-type shift switch, stepless speed regulation system, anti- slip control on slopes. |
|||
|
B o d y
a n d
C h a s s i s |
Seat |
First row 1+1 single seat (leather fabric + high resilience PU, angle adjuster, driver seat with slide rail front and rear adjustable, off-white) Rear three-person seat (leather fabric + high resilience PU , off-white), equipped with two-point seat belts, safety ropes on both sides of the body. |
||
|
Body and frame |
Aluminum alloy body frame, high-strength rectangular steel tube welded chassis frame, electrostatic spraying and electrophoresis anti-rust treatment. |
|||
|
Body |
High-strength FRP shell and ABS plastic moldings, automotive-grade paint spray/aluminum frame. |
|||
|
Floor |
High anti-corrosion aluminum-zinc plate + aluminum alloy pattern plate double-layer floor, aluminum alloy floor skirting strip. |
|||
|
Dashboard |
Polyurethane foam one-piece instrument panel, with lock access cover, reserved defrost air conditioner outlet. |
|||
|
Windshields and mirrors |
Double-layer laminated front glass + tempered rear glass, wide-view manual exterior rear -view mirror + interior rear-view mirror, two-speed large-view wiper, and glass spray washing function. |
|||
|
Steering system |
Polyurethane softened steering wheel, four-way adjustable steering column, mechanical power steering, high-efficiency rack and pinion steering gear with clearance compensation. |
|||
|
Front axle and suspension |
MacPherson independent suspension (coil spring + cylinder hydraulic shock absorption). |
|||
|
B o d y
a n d
C h a s s i s |
Rear axle and suspension |
High-efficiency motor direct-connected large-speed ratio gear reduction integral rear axle, leaf spring + cylinder type hydraulic shock absorption type non-independent suspension. |
||
|
Braking system |
Front disc, rear drum brake, dual circuit hydraulic service brake, electronic EPB rear parking brake. |
|||
|
Tire |
165/70R13C vacuum radial tires, steel rims. |
|||
|
|
Other |
1 pc 1kg dry powder fire extinguisher, 1 set of vehicle tools, 1 pc 220V 2.5m charging power cord. |
||
