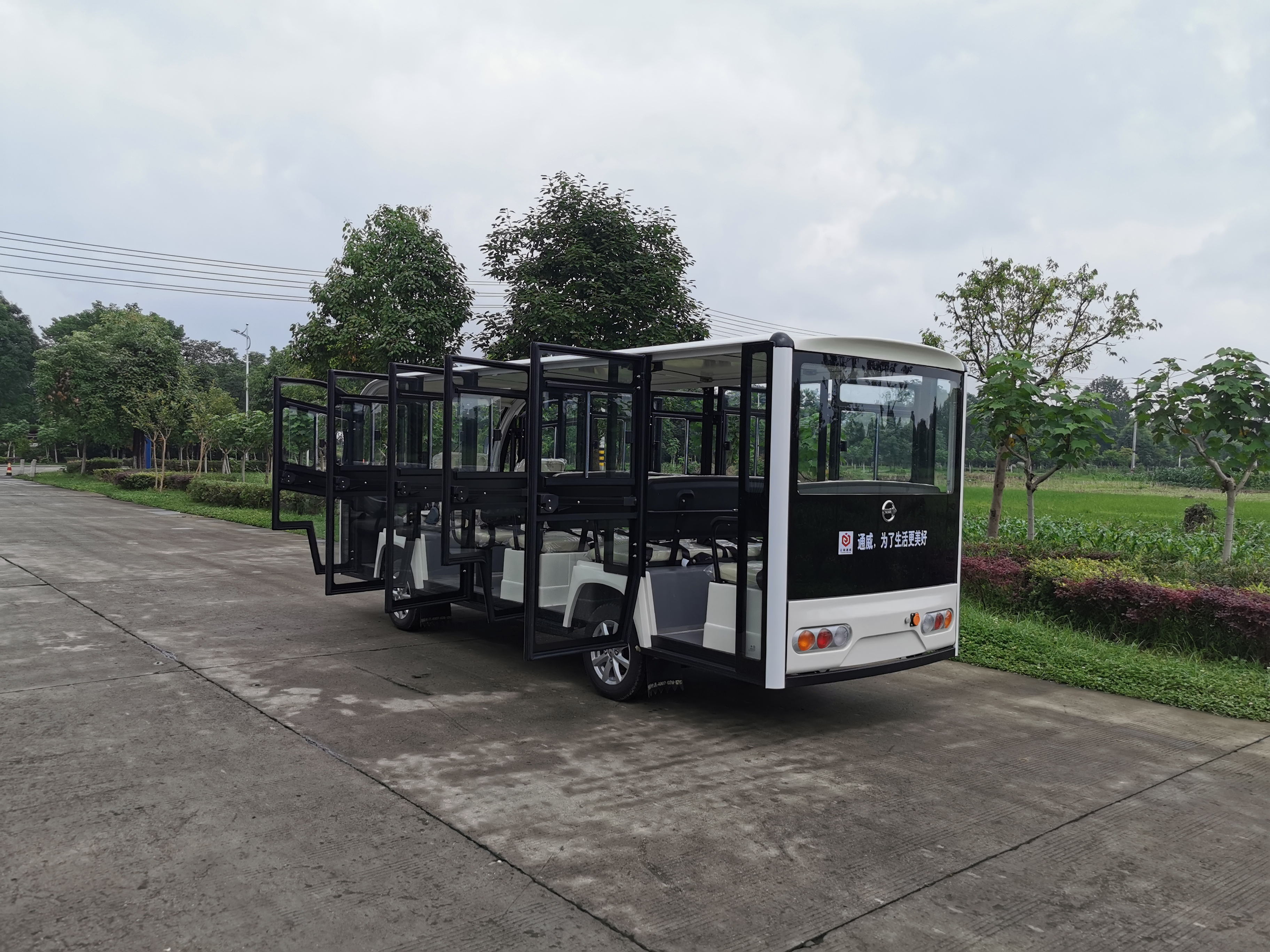

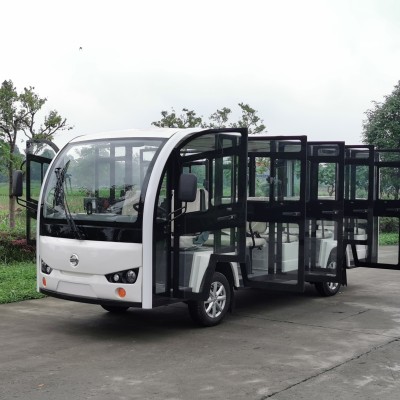

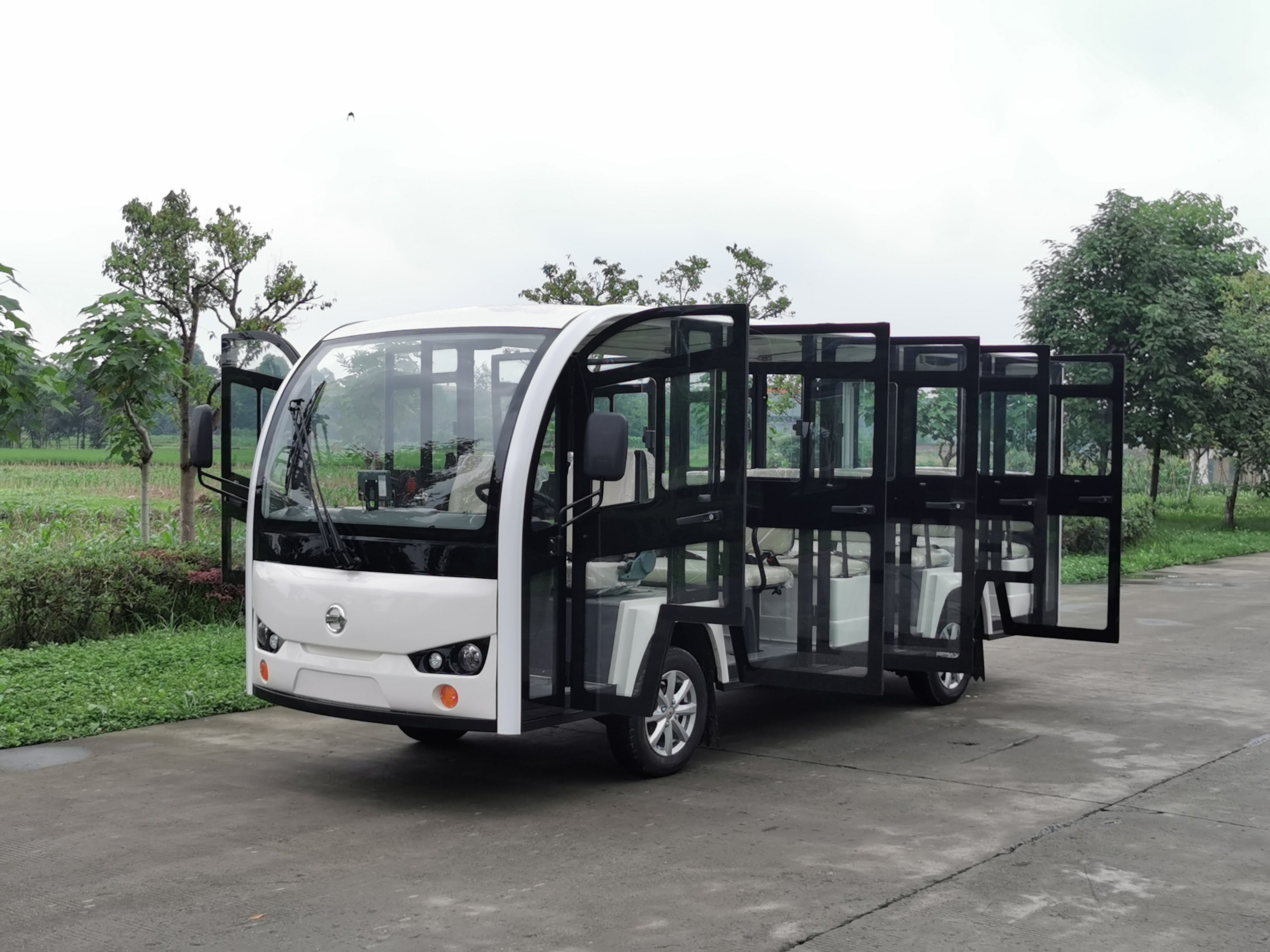

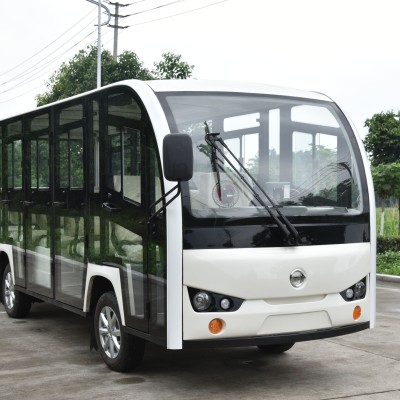

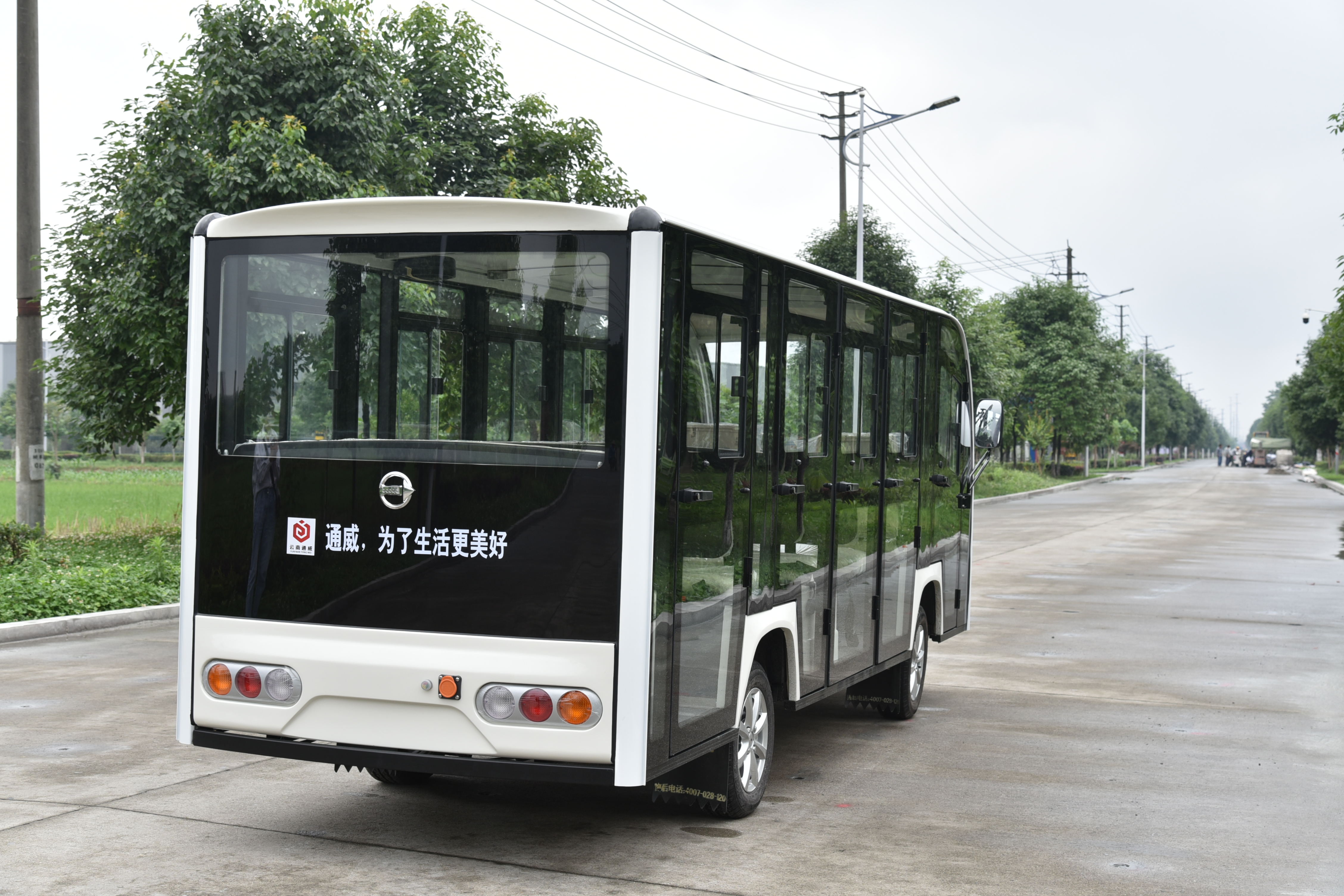

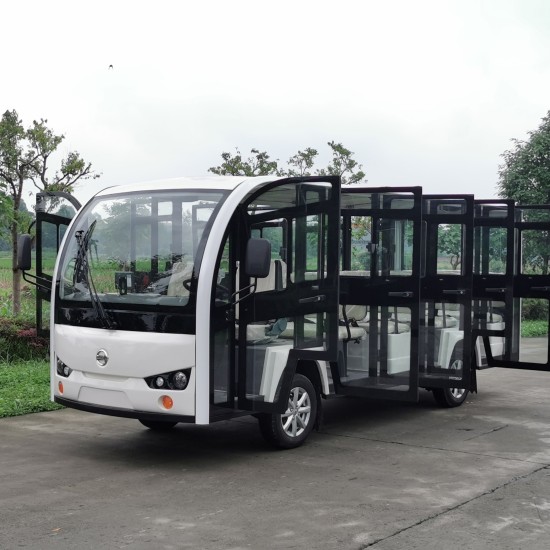

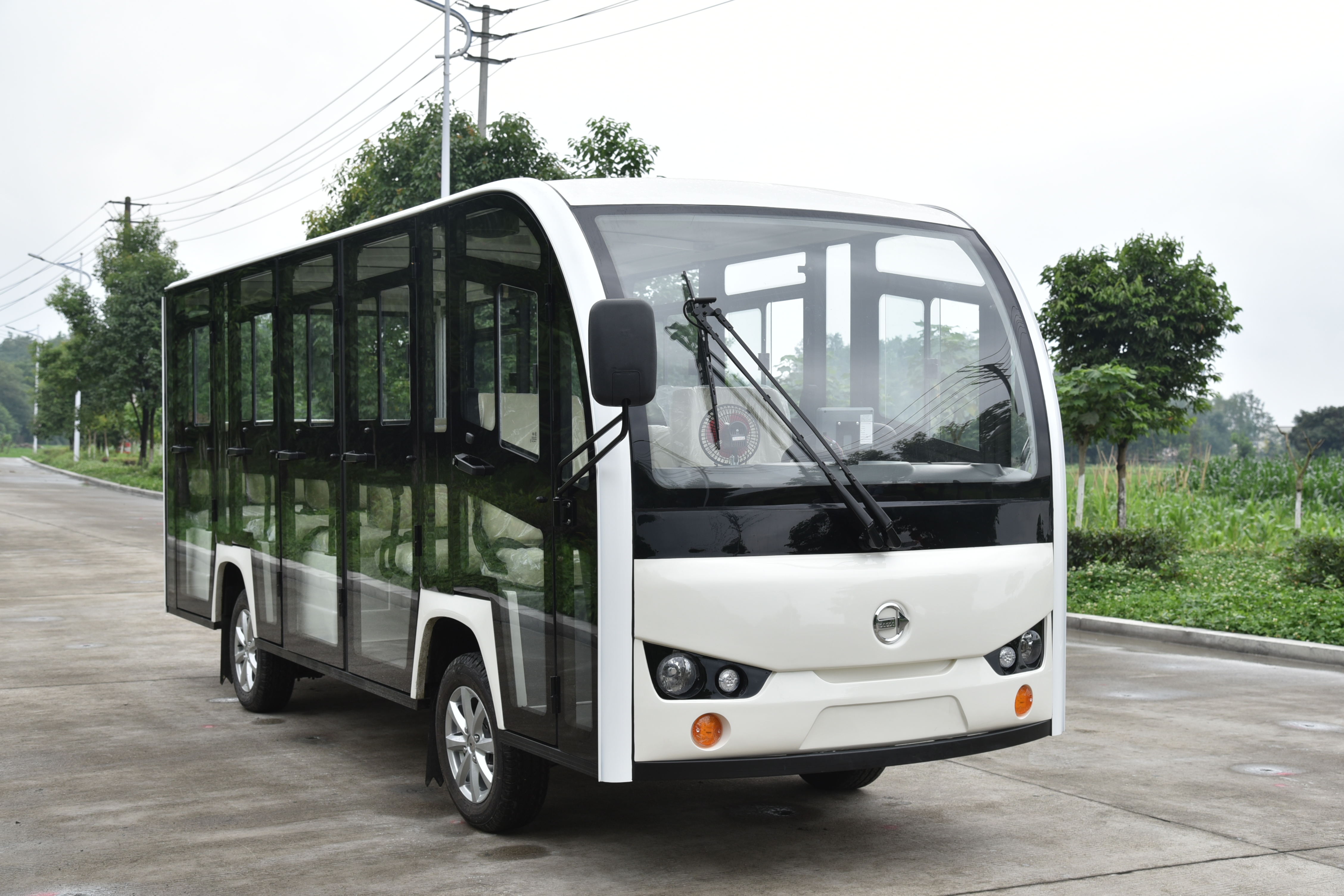

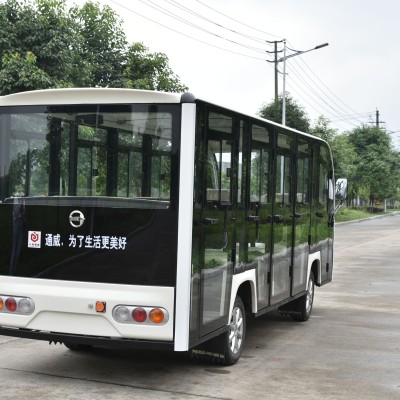

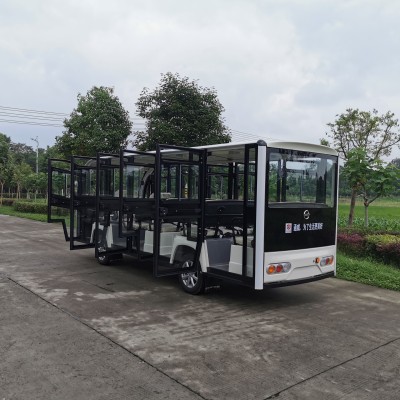

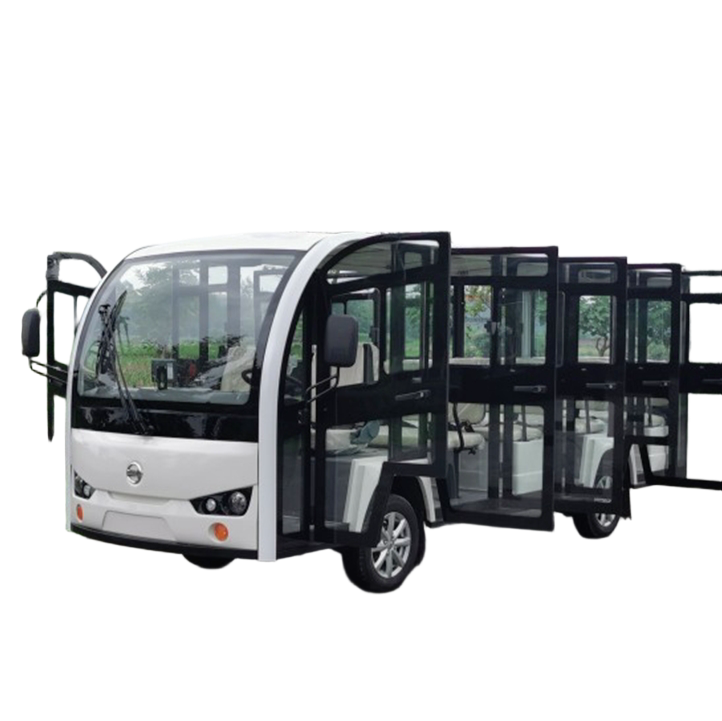

Utility Energy-efficient 14 Seats Enclosed Sightseeing Car

T

e

c

h

n

i

c

a

l

p

a

r

a

m

e

t

e

r

Vehicle model

F14-M

Configuration code

QM13

Rated occupant

14 Person

Dimensions

5228×1570×1950mm（L*W*H）

Top speed

15～30km/h（adjustable）

Charging input voltage

220V

Wheelbase

2620mm

Front and

rear track

1300/1280mm

Minimum ground clearance

150mm

Minimum

turning

radius

5.7m

Braking distance

≤6m

Gradeability

15%

Curb weight

1670kg

Maximum

driving

mileage

80km

E

l

e

c

t

r

i

c

a

l

S y s t  e

 m

★Battery

72V200AH Maintenance-free lead-acid power battery pack

★Electrically controlled

72V high efficiency MOSFET AC motor control system, with ACC uphill anti-slip function, downhill can achieve energy recovery；

★Motor

7.5 kW free brushless AC frequency conversion motor.

Charger

AC220 / DC72V efficient on-board intelligent charger, charging time of 8-10 hours (discharge rate of 80%).

Lights and signals

Front near and far light integrated headlights, turn signal lights, combination of rear taillights, brake lights, electric horn and reversing buzzer.

Audio

Car MP3 sound machine, hi-fi speakers.

Switch

Key start switch, light and wiper combination switch, warning lamp warping switch, emergency power switch.

Dashboard

LCD instrument (including voltage, current, speed, mileage, light, front and rear change direction, hand brake indication, etc.).

Speed and advance and retreat control

Electronic throttle, deluxe knob type shift switch, stepless speed control system.

★Wiper

Double-speed large-field wiper, glass spray washing function.

车 身及底盘

★Seats

1. Five rows are all forward (to prevent passengers from dizziness);

2.The driver's seat with a slide rail, front and rear adjustable, the back of the adjustable Angle;

3.The rear four rows of connected seats, equipped with two-point seat belt;

Body

High-strength rectangular steel pipe welded chassis frame, electrostatic spraying and electrophoretic anti-rust treatment.

Body, closed door

High strength FRP shell and ABS forming parts, automotive grade paint / aluminum frame, removable aluminum alloy frame full glass door.

★Floor

High anticorrosion aluminum plated zinc plate + aluminum alloy pattern plate double floor, aluminum alloy floor skirt edge.(Use for ten years)

Instrument Panel

Polyurethane foam integrated forming instrument panel, with lock repair cover, reserved defrost air conditioning tuyere.

 Front windshield

Double layer laminated front windshield, wide field manual external rearview mirror + middle built-in rearview mirror.

★Rear windshield

Wide, high-definition tempered glass (prevent dust and rain back).

★Steering System

1.Bus class steering pipe string can be adjusted according to the need of up, down, front, back four;

2.Mechanical power drive Angle drive gear;

3.Horizontal axis EPS electronic power system;

4.Double ball head double push rod gear rack belt clearance compensation direction machine.

★Front suspension system

McPherson independent suspension + injection plastic tire waterproof cover.

★Rear suspension system

Non-independent suspension, double stiffness 5 plate spring (3 equal section plate spring + 2 variable section plate spring) + cylinder hydraulic shock absorber + injection plastic tire waterproof cover.

 Rear axle

High efficiency motor direct connection type large speed ratio gear reduction integral rear axle.

Braking

1.Front disc and rear drum + hydraulic double pipe brake;

2.Vacuum brake power force;

3.Mechanical rear-wheel parking brake device;

Tire

165/70R13C vacuum radial tires, steel rims.

★Bumper

Front and rear steel collision bumper, rubber protection angle.

Other

11kg dry powder fire extinguisher, one set of tools on board, 1220V2.5m charging power cable.
