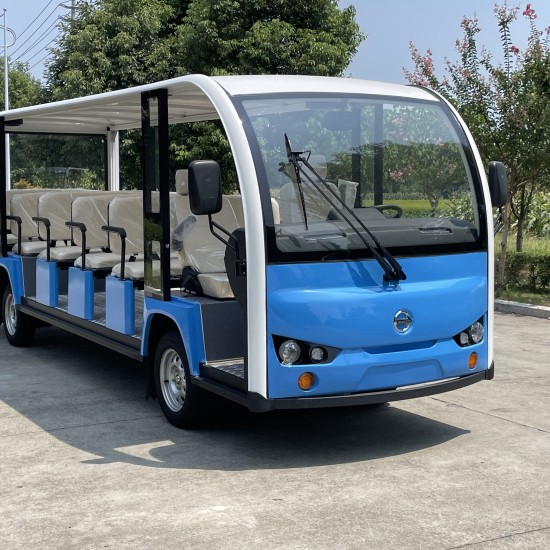

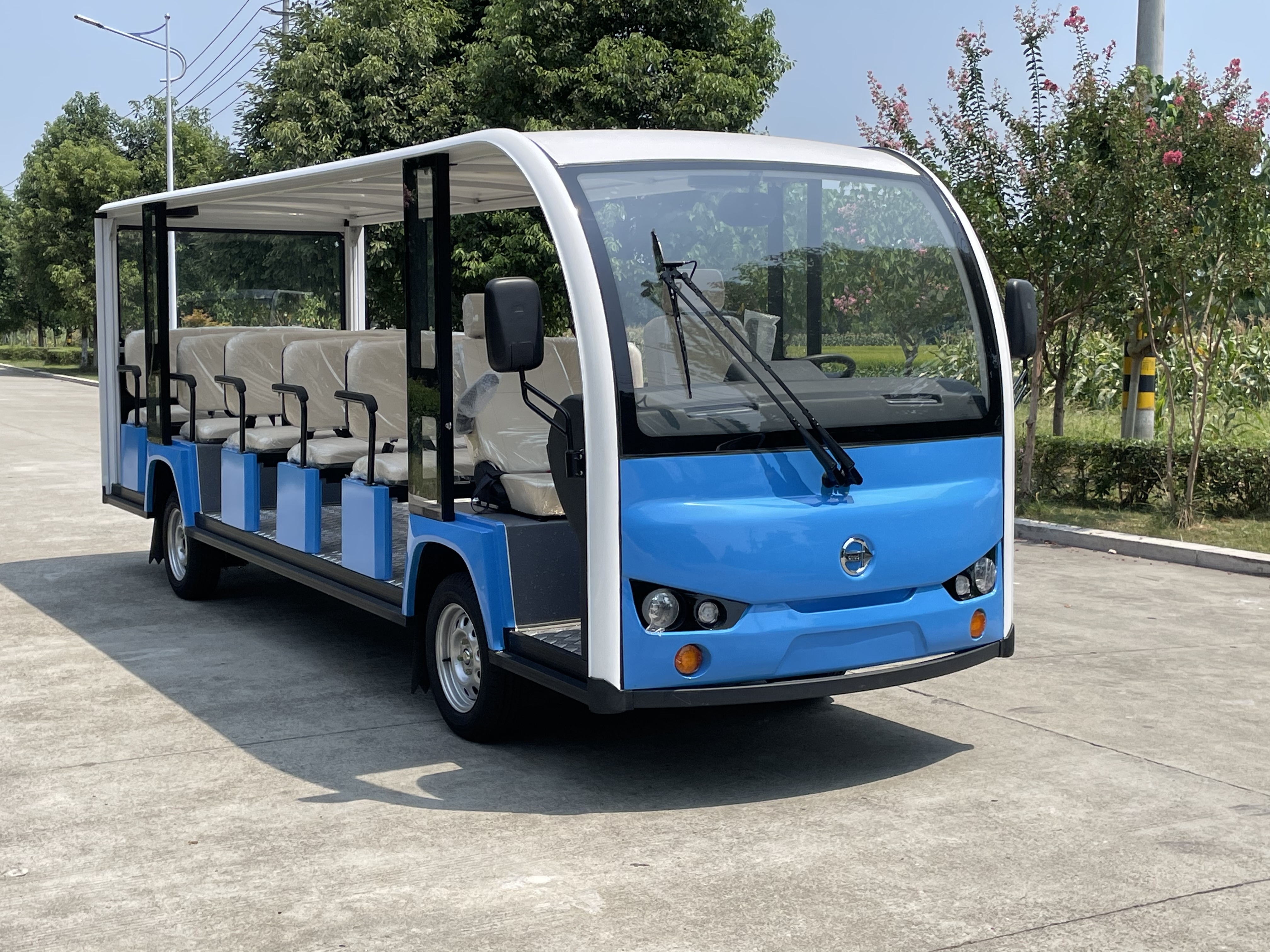

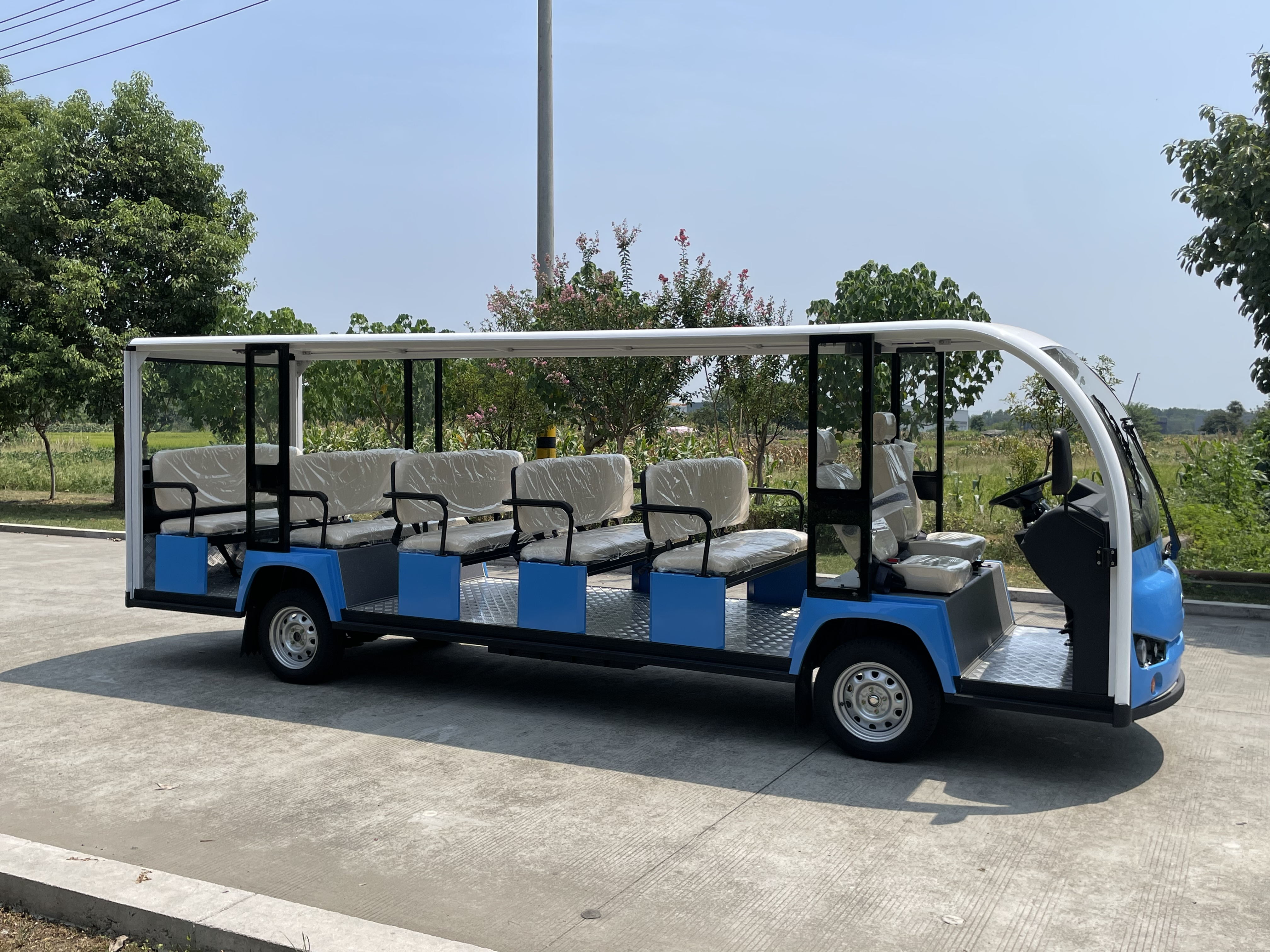

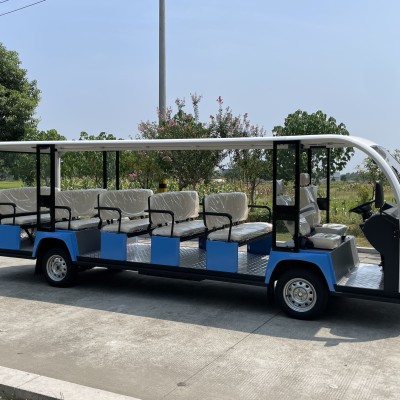

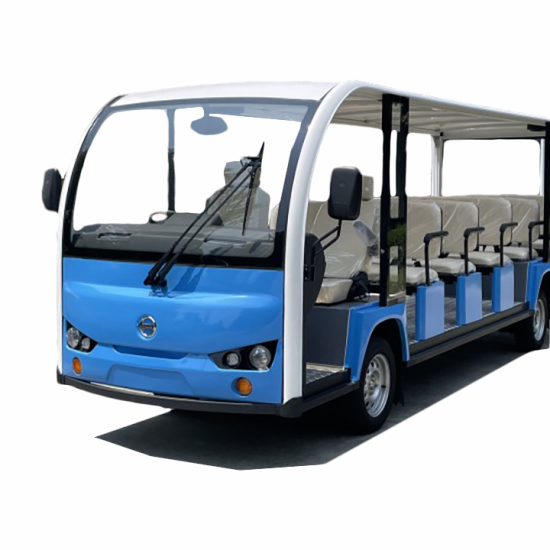

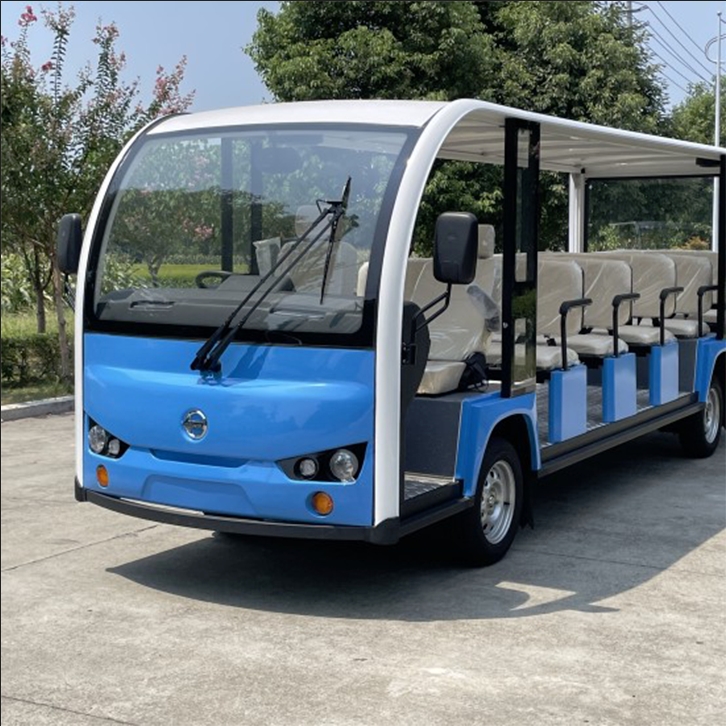

Best Price Professional 17 Seats Electric Sightseeing Car

T

e

c

h

n

i

c

a

l

p

a

r

a

m

e

t

e

r

Vehicle model

F17

Configuration code

QM13

Rated occupant

17 persons

Dimensions

6018× 1570× 1950mm（L*W*H）

Top speed

15～30km/h（ adjustable）

Charging input voltage

220V

Wheelbase

3410mm

Front and

rear track

1300/ 1280mm

Minimum ground clearance

150mm

Minimum

turning

radius

7m

Braking distance

≤6m

Gradeability

15%

Curb weight

1430kg

Maximum

driving

mileage

70km

E

l

e

c

t

r

i

c

a

l

S y s t  e

m

Battery

72V200AH maintenance-free lead-acid power battery pack.

Power system

72V high-efficiency MOSFET AC control system, with over-temperature and over-current protection functions, with ACC uphill anti-slip function, downhill charging and energy recovery.

Charger

AC220/DC72V high-efficiency on-board intelligent charger, charging time 8-10 hours (discharge rate 80%), (automatic stop when fully charged).

Lights and

Signals

Headlights, turn signals, combined rear tail lights, brake lights, electric horn and reversing buzzer.

Motor

7.5kw maintenance-free carbon-free brushless AC inverter motor.

Audio

Car MP3 audio player, Hi-Fi speakers.

Switch

Key start switch, light and wiper combination switch, warning light rocker switch, emergency power off switch.

Meter

LCD instrument (including voltage, current, speed, mileage, light, front and rear commutation and other signals).

Speed,Drive and

Reverse control

Electronic throttle, luxury knob-type shift switch, stepless speed regulation system, anti- slip control on slopes.

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Seat

1. All six rows are forward (to prevent passengers from getting off the bus and dizzy);

2. The driver's seat has slide rails, adjustable front and rear, and the backrest can be adjusted at an adjustable angle;

3. The rear five rows of seats are equipped with two-point seat belts;

4. Both sides of the body are equipped with safety ropes.

Frame

High-strength rectangular steel tube welded chassis frame, electrostatic spraying and electrophoresis anti-rust treatment.

Body

High-strength FRP shell and ABS plastic molded parts, aluminum alloy body frame, automotive-grade paint spraying

Floor

High anti-corrosion aluminum-zinc sheet + aluminum alloy pattern board double-layer floor, aluminum alloy floor skirt strip. (10 years old)

Dashboard

Polyurethane foamed one-piece instrument panel, locking access cover, reserved defrost air conditioning tuyere.

Windshields and mirrors

Double-layer laminated front windshield, wide-field manual exterior mirror + central interior mirror.

Steering system

1. The bus-grade steering column can be adjusted in four directions according to the needs of up, down, front and rear;

2. a mechanical power-assisted angle actuator;

3. Horizontal axis EPS electronic assistance;

 4. Double ball head double push rod rack and pinion type with gap compensation direction machine.

Front axle and suspension

MacPherson independent suspension + injection-molded tire waterproof cover.

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Rear axle and suspension

Non-independent suspension, two-stage stiffness 6-piece leaf springs (4 equal section plate springs + 2 variable section plate springs) + barrel hydraulic shock absorber + injection molded tire waterproof cover.

Braking system

1. Front disc and rear drum + hydraulic double pipeline brake;

2. Vacuum brake assistance;

3, mechanical rear wheel parking brake device;

Tire

165/70R13C vacuum radial tires, steel rims.

Bumper

Front and rear steel bumpers with rubber protective corners.

Other

1 pc 1kg dry powder fire extinguisher, 1 set of vehicle tools, 1 pc 220V 2.5m charging power cord.
