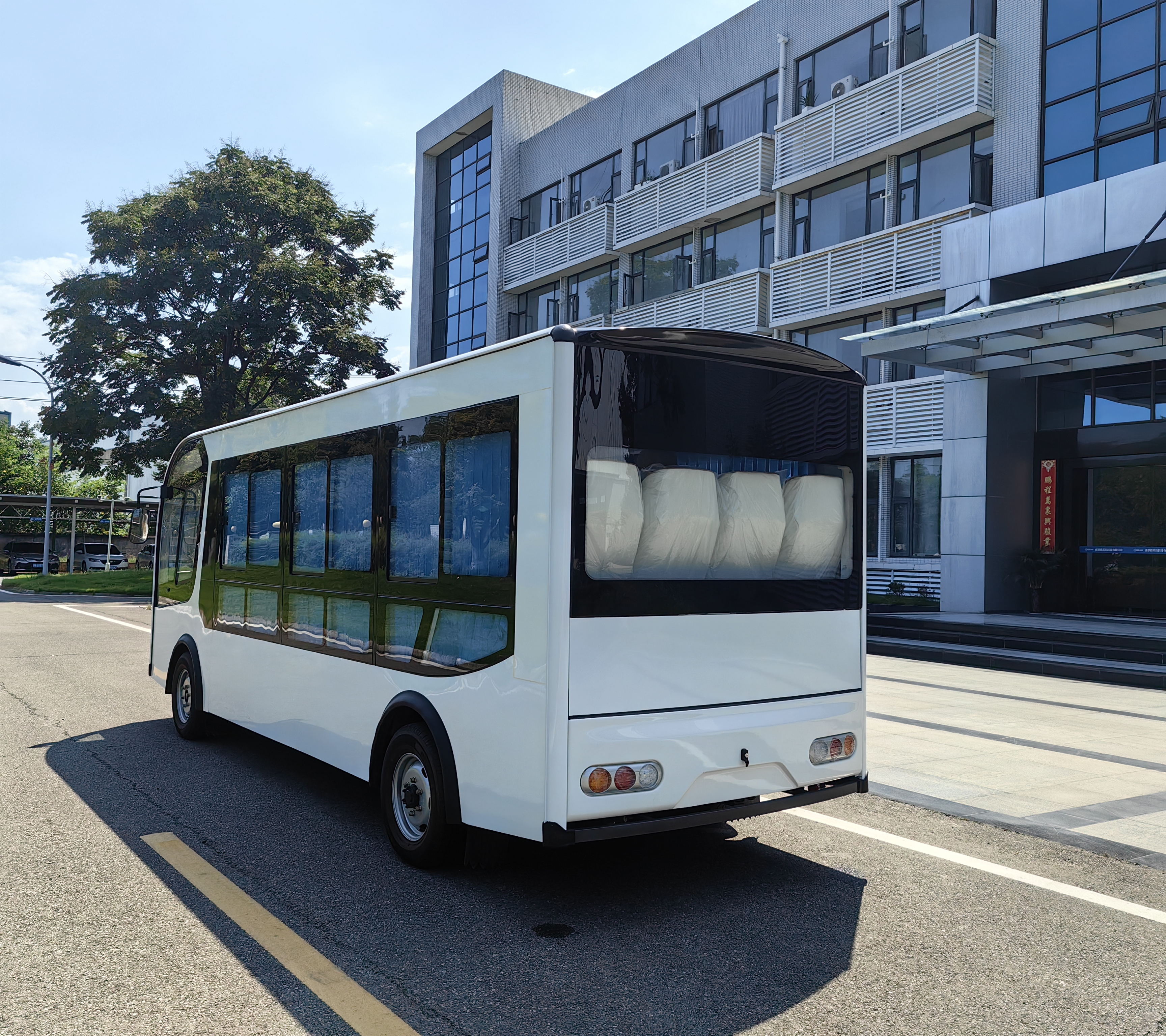

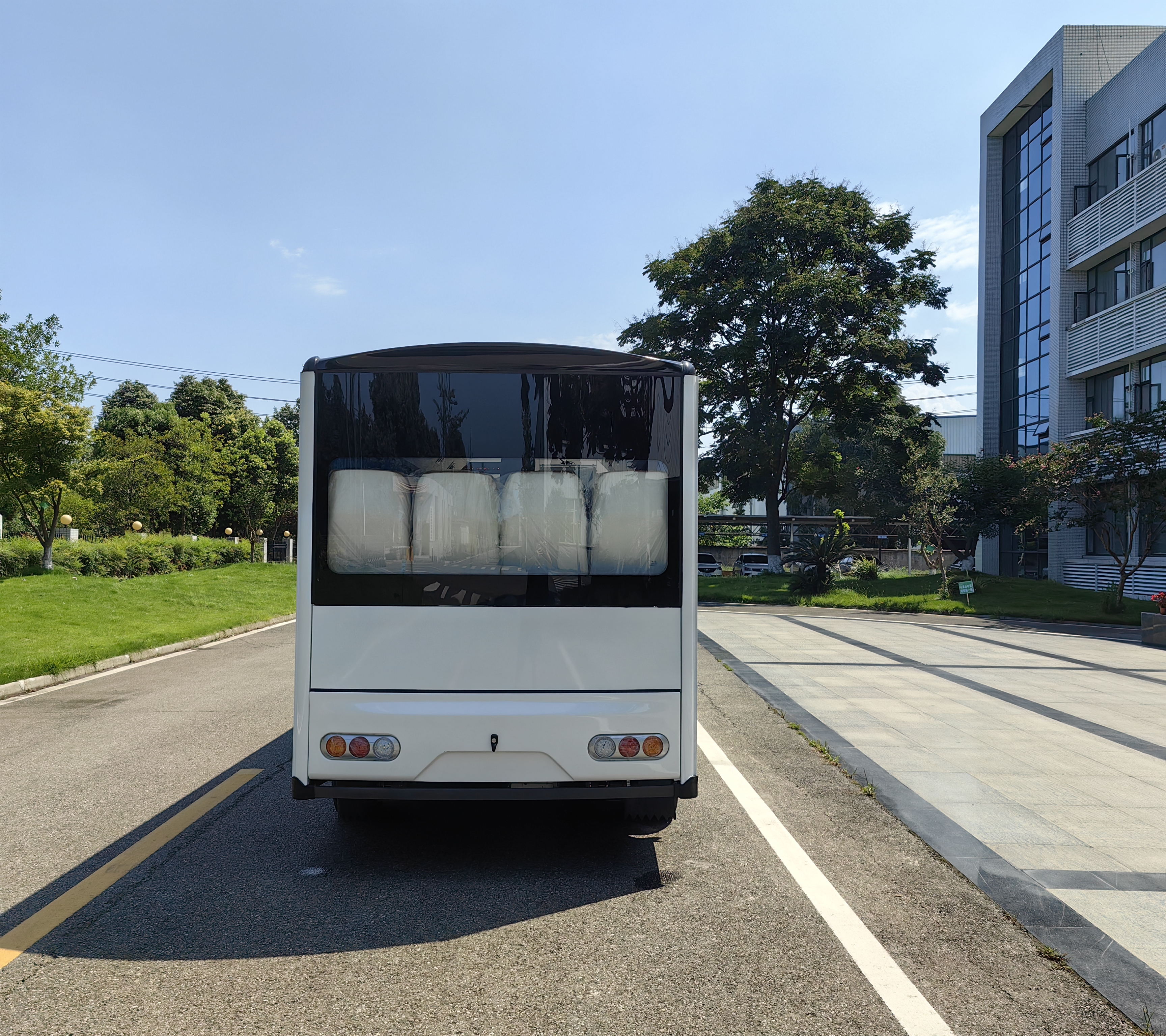

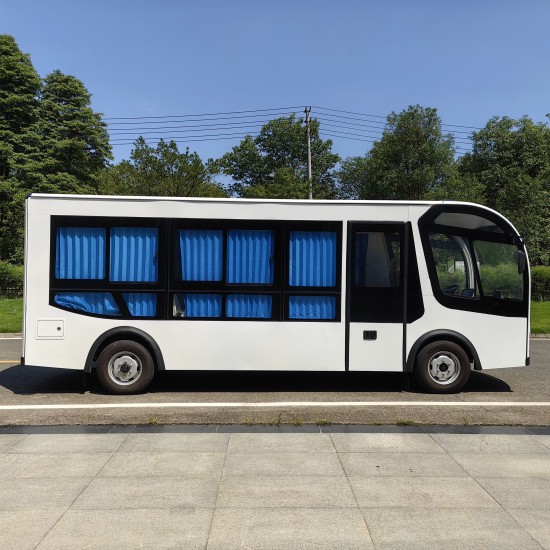

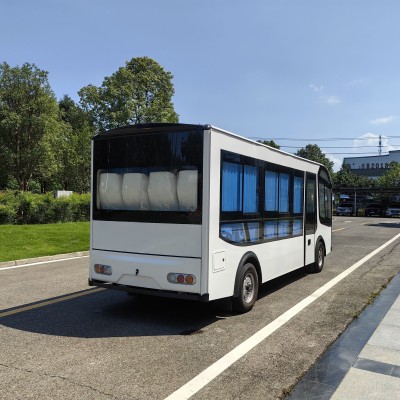

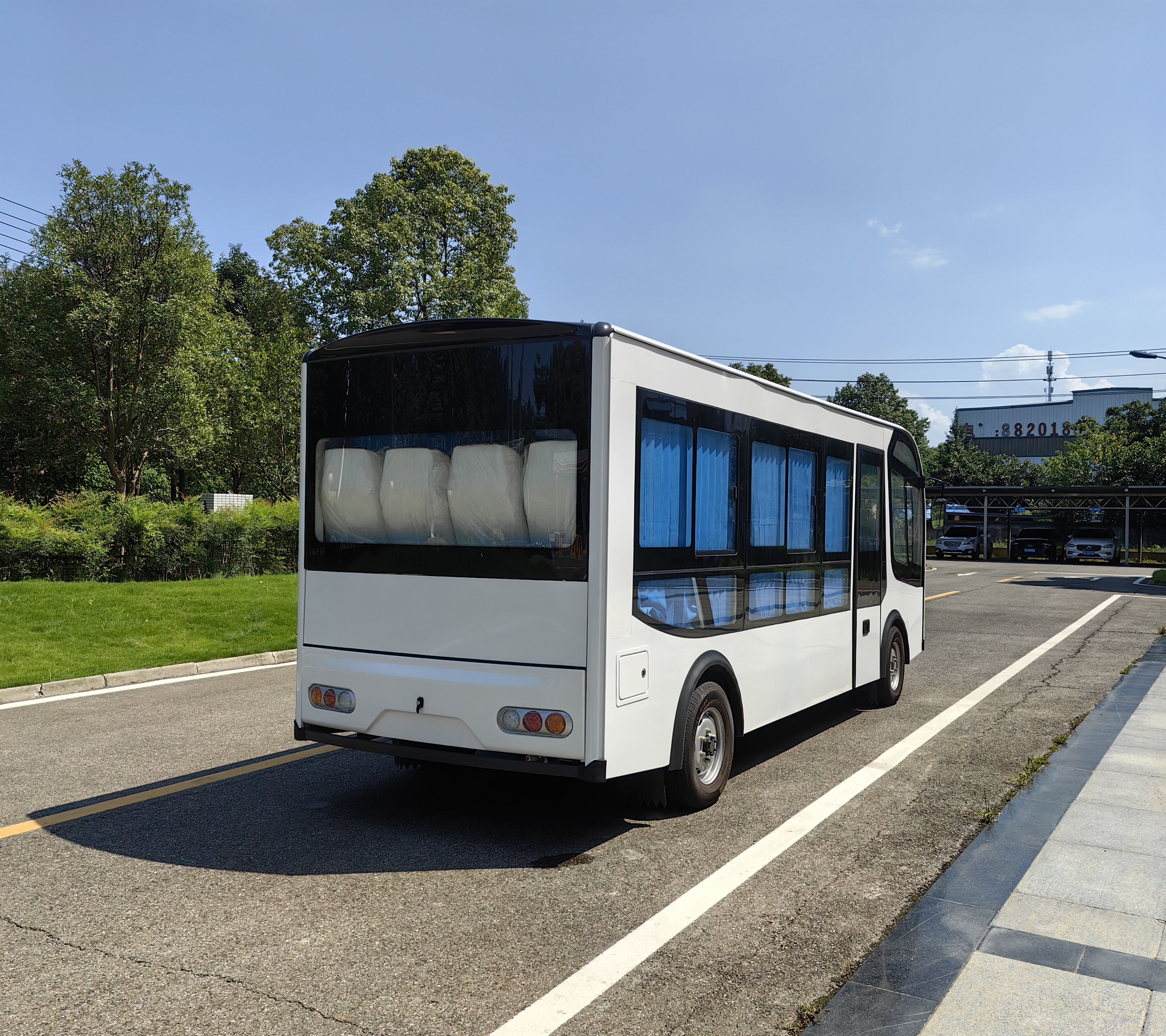

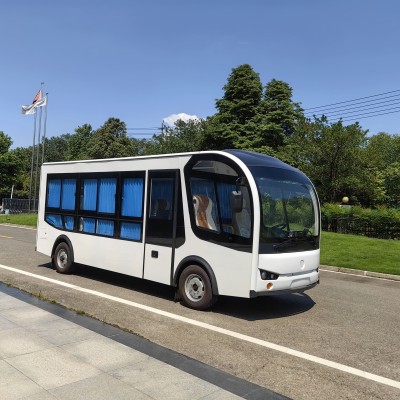

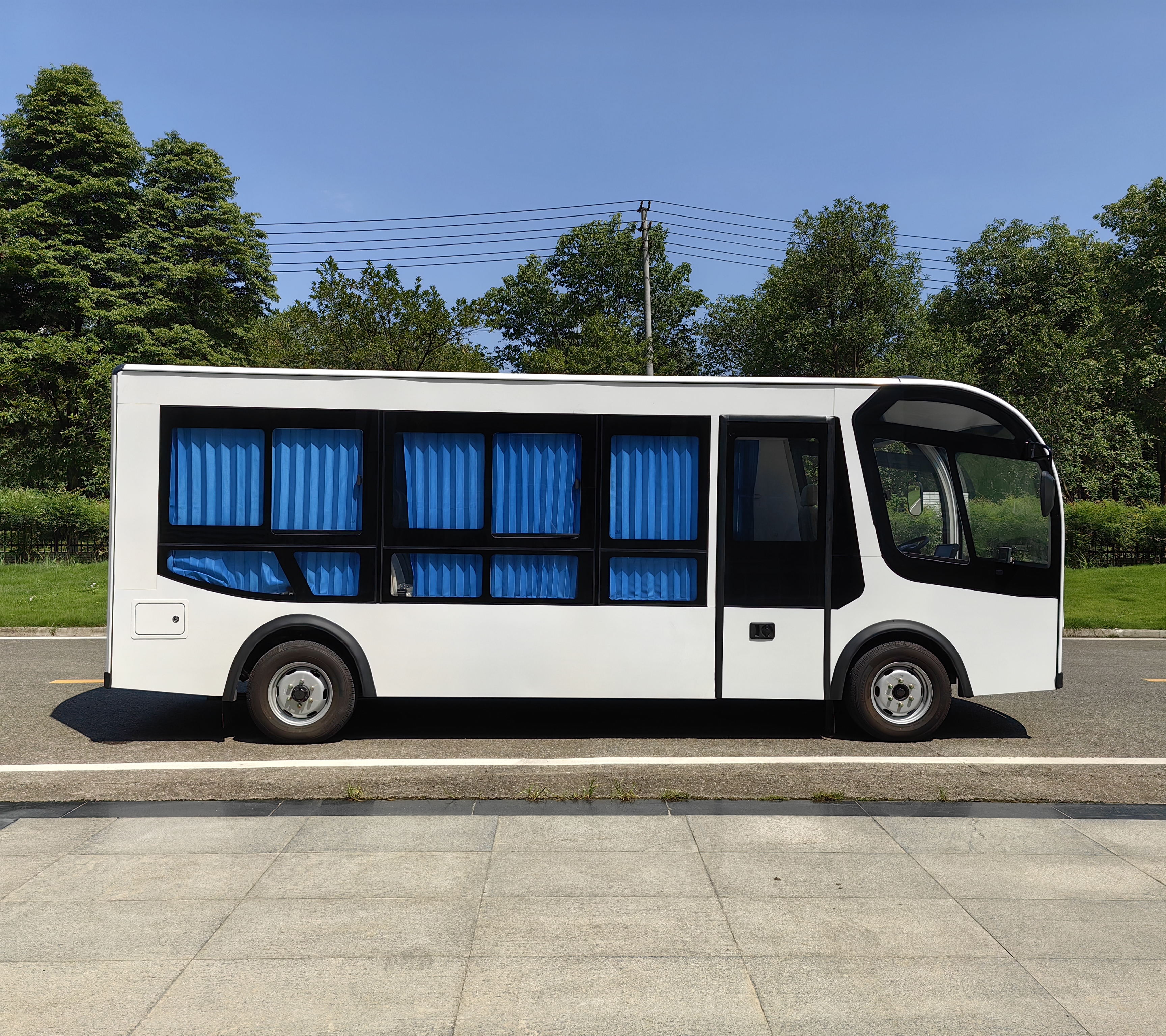

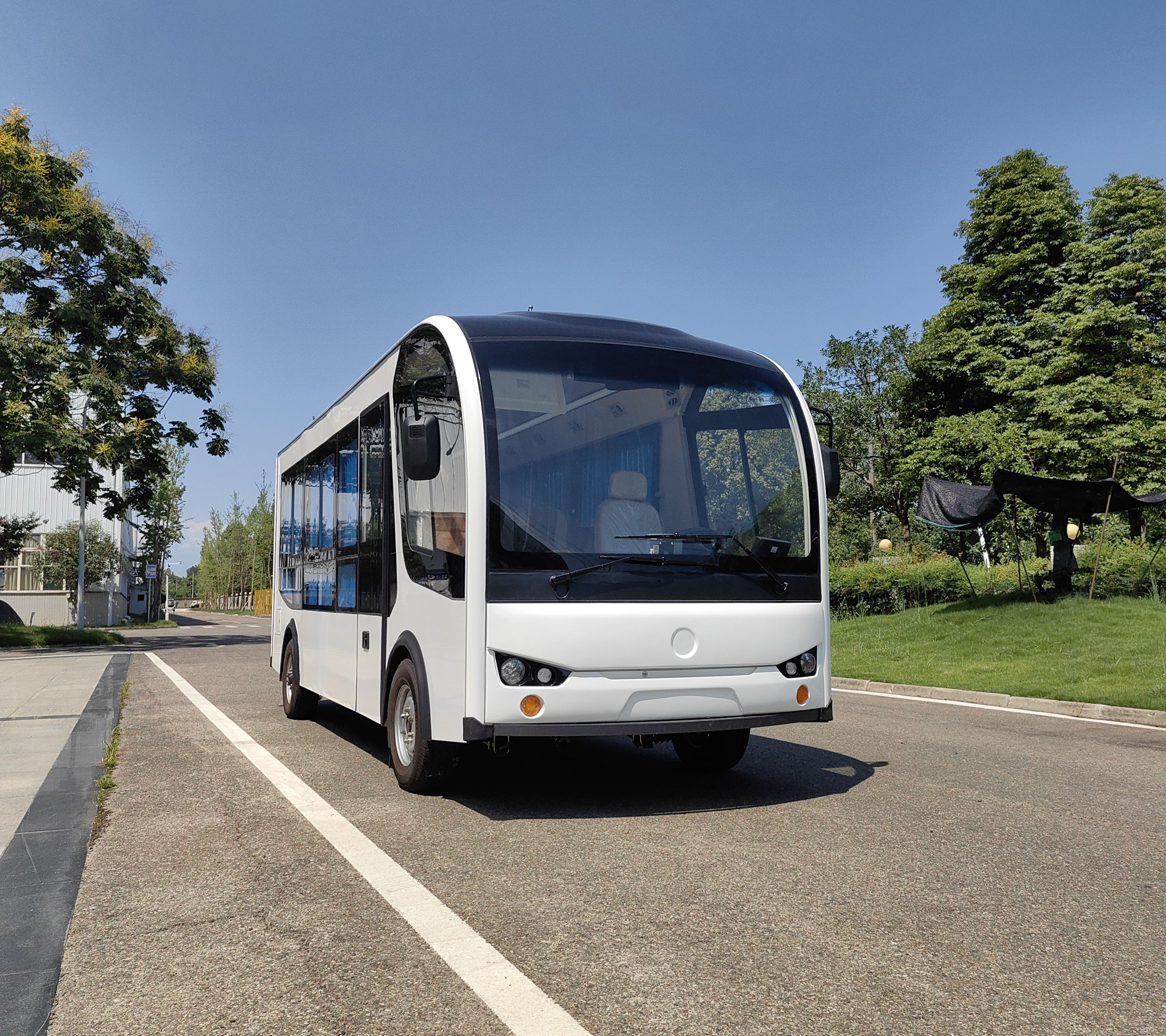

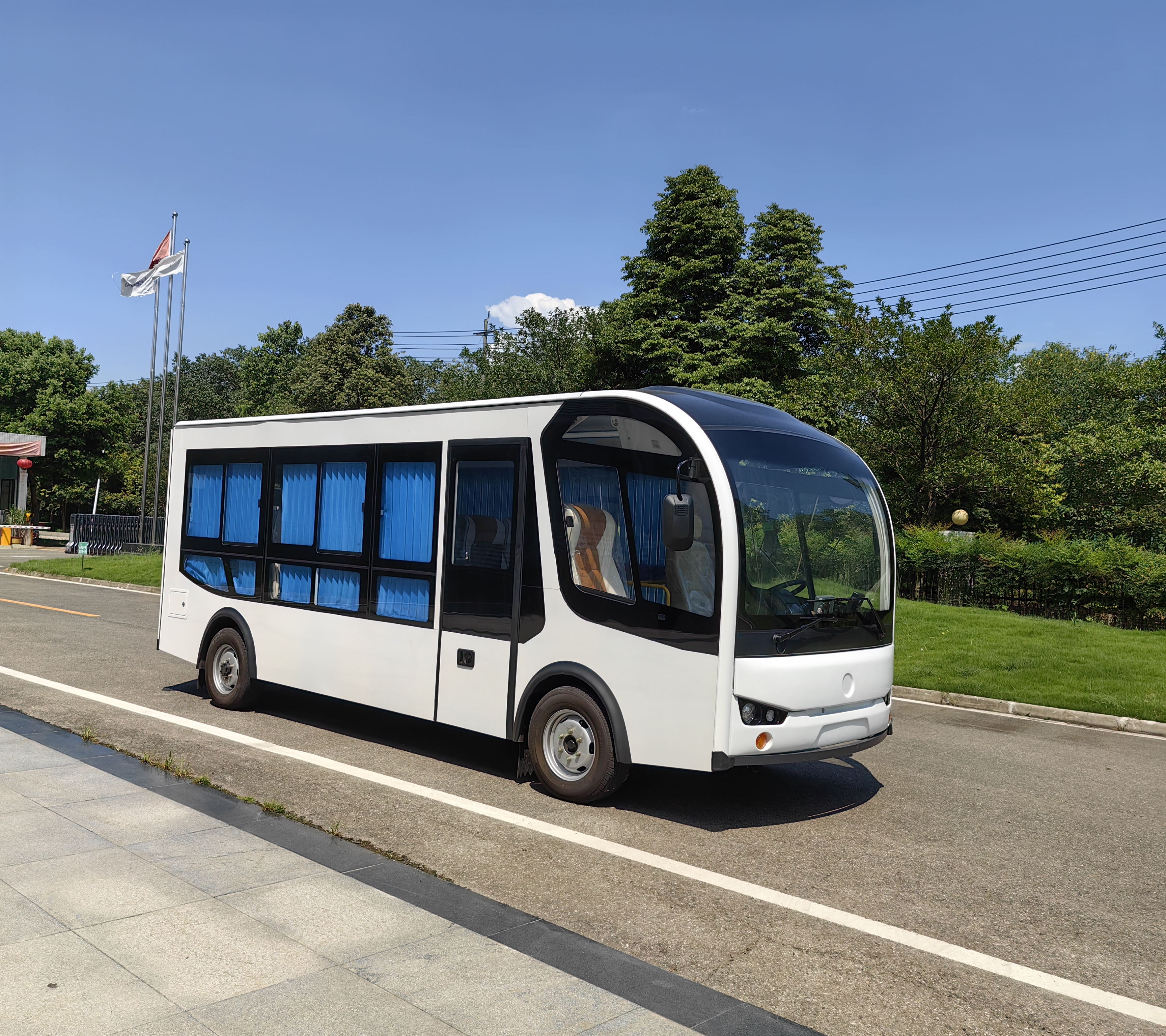

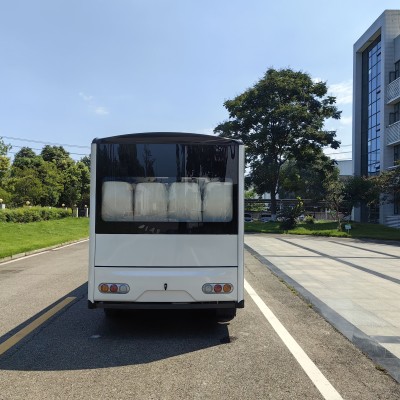

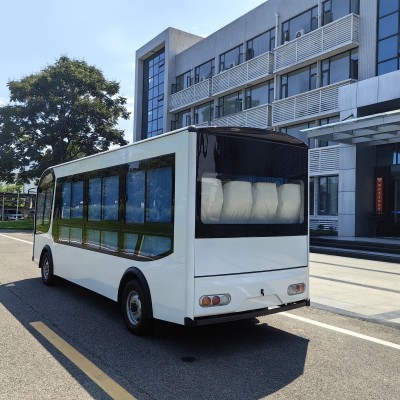

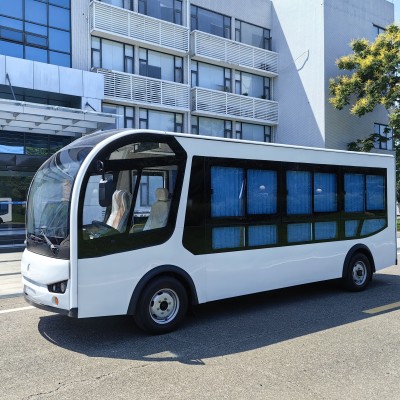

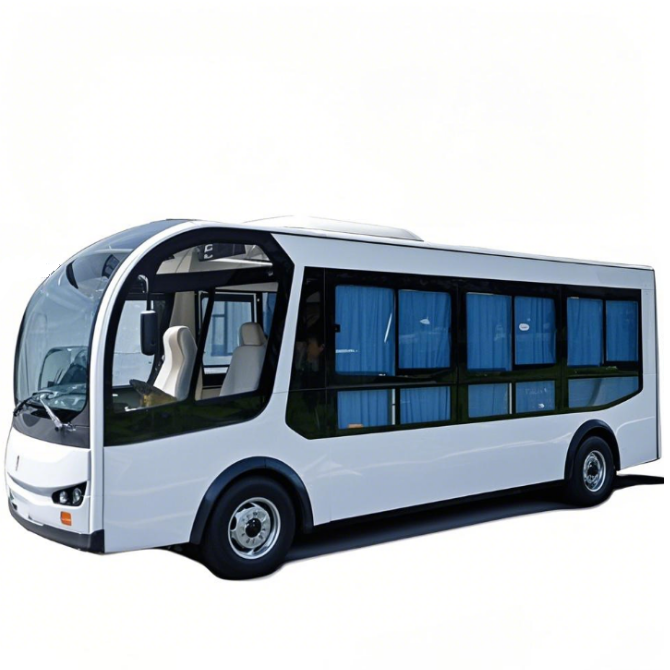

Luxury Comfortable 18 Seats Electric Mini Bus
|
Technical parameter |
Vehicle model |
FWB18 |
|
|
|
Configuration code |
L24T |
|||
|
Rated occupant |
18 persons |
|||
|
Dimensions |
6570*1950*2550mm (L*W*H) |
|||
|
Top speed |
50km/h |
|||
|
Charging input voltage |
220V |
|||
|
Wheelbase |
3950mm |
Front and rear track |
1700/1700mm |
|
|
Minimum ground clearance |
200mm |
Minimum turning radius |
8.9m |
|
|
Braking distance |
≤5m |
Gradeability |
10% |
|
|
Curb weight |
2700kg |
Maximum driving mileage |
280km (flat road, constant speed, no load) |
|
|
Electrical System |
Battery |
153.6V 70Kwh LiFePO4 (LFP) power battery pack |
||
|
Power system |
144V high-efficiency Permanent Magnet Synchronous Motor control system, 15KW Maintenance-free brushless permanent magnet synchronous motor |
|||
|
Charger |
AC220/DC144V Efficient vehicle-mounted intelligent charger, charging time 8-12 hours (80% discharge rate) |
|||
|
Lights and Signals |
Headlights, turn signals, combined rear taillights, brake lights, electric horns and reversing buzzers |
|||
|
Audio |
Vehicle MP3 audio machine, high-fidelity speakers. |
|||
|
Switch |
Key start switch, light and wiper combination switch, warning light and reversing buzzer rocker switch, emergency power off switch, long strip LED interior dome light |
|||
|
Instrument |
LCD instrument (including voltage, current, vehicle speed, mileage, light, front and rear commutation and other signals) |
|||
|
Speed,Drive and Reverse control |
Floor-mounted electronic throttle, luxurious knob-type shift switch, stepless speed regulation system, slope anti-slip control |
|||
|
B O D y
A N d
C H A S S I S |
Seats |
The driver's seat is made of leather fabric + high resilience PU seat, and the seat and backrest can be adjusted; Passenger seats are leather fabric 2+1 tourist bus seats, equipped with two-point automatic retract seat belts |
||
|
Frame |
Aluminum alloy body frame, high-strength cold plate stamping and welding chassis frame, pickling and phosphating electrostatic spraying and electrophoresis anti-rust treatment |
|||
|
Body |
High-strength fiberglass shell and ABS plastic moldings, automotive-grade paint spraying/aluminum frame |
|||
|
Door |
All-aluminum frame, electric swing door |
|||
|
Floor |
High anti-corrosion galvanized plate + aluminum alloy checkered plate double-layer floor, aluminum alloy floor skirt strip |
|||
|
Dashboard |
Vacuum-absorbed plastic-covered one-piece dashboard |
|||
|
Windshield and mirrors |
Double-layer laminated front windshield + tempered glass, wide-view manual exterior rearview mirror + enlarged interior rearview mirror |
|||
|
Steering system |
PEPS electric power steering system + four-way adjustable steering column, polyurethane foam steering wheel |
|||
|
Front axle and suspension |
Integral front axle, high-strength composite material leaf spring, cylinder hydraulic shock absorber |
|||
|
Rear axle and suspension |
High-efficiency motor direct connection type large speed ratio gear reduction integral type full floating rear axle, leaf spring + cylinder hydraulic shock absorption, Hotchkiss suspension structure |
|||
|
Braking System |
Front disc, rear drum vacuum-assisted dual-circuit hydraulic brake system + electronic rear wheel parking brake device. Mechanical rear parking brake |
|||
|
Tire |
225/70R15 vacuum rough tread tire, steel rims |
|||
|
Other |
One pc 1kg dry powder fire extinguisher, one set of vehicle tools, one pc 220V 2.5m charging power cord |
|||
|
Additional |
1. Install high-power built-in air conditioner, and High-power refrigerator 2. 18 full seats + a full wheelchair space 3. Install wood grain floor in the middle of the bus 4. Display behind the passenger seat, with a small table, with a USB charging port, and the passenger seat display can play independently 5. Install TV screen in the bus, with microphone, Destination screen and Destination announcer |
|||
