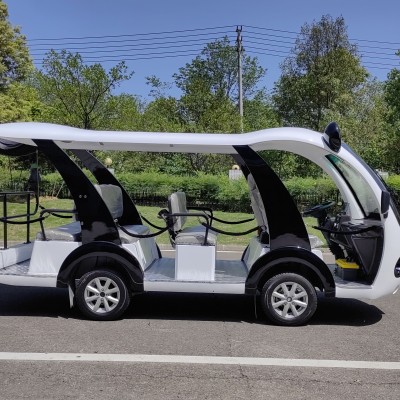

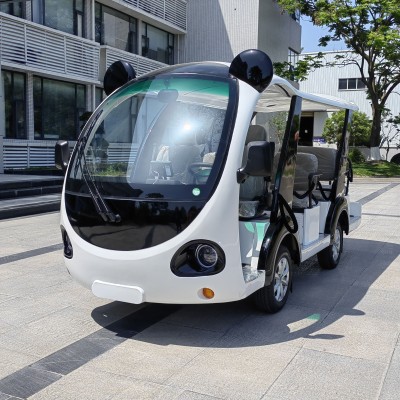

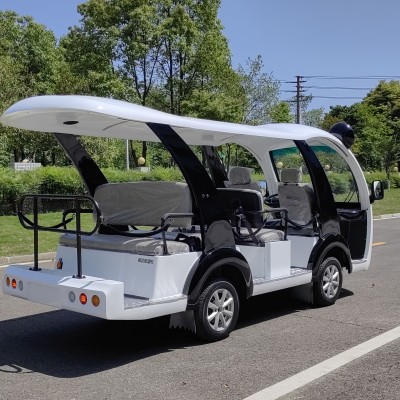

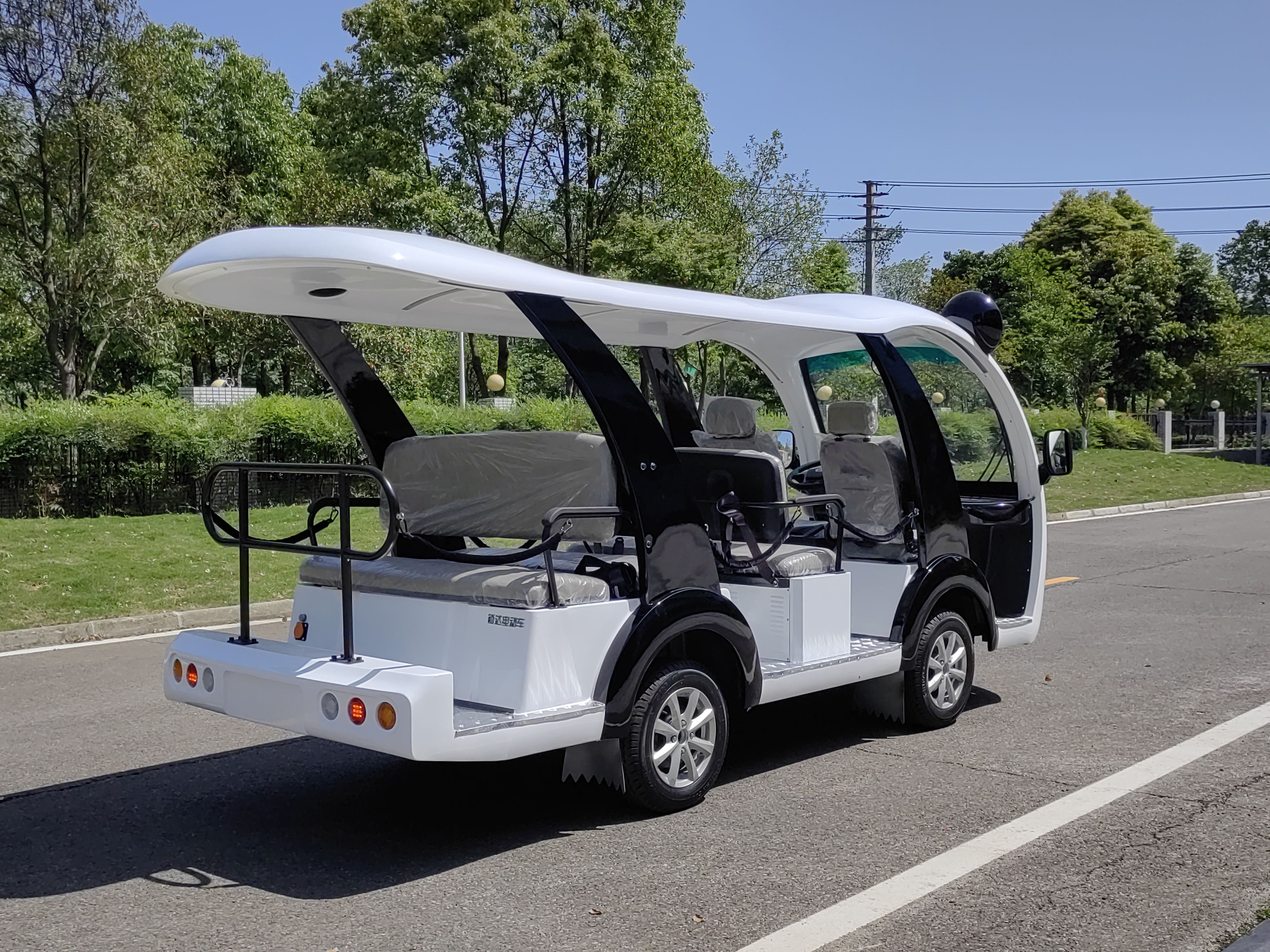

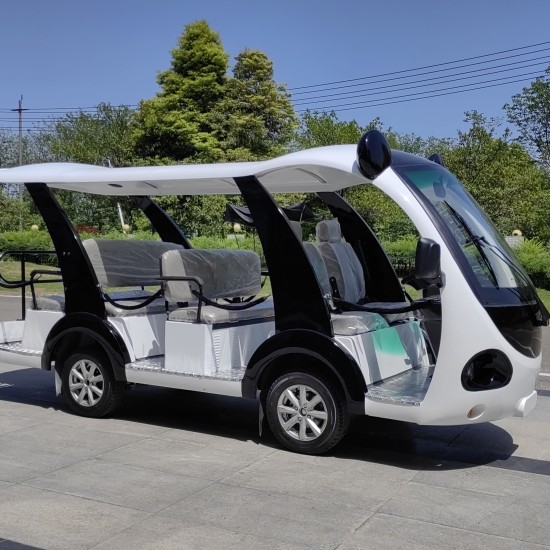

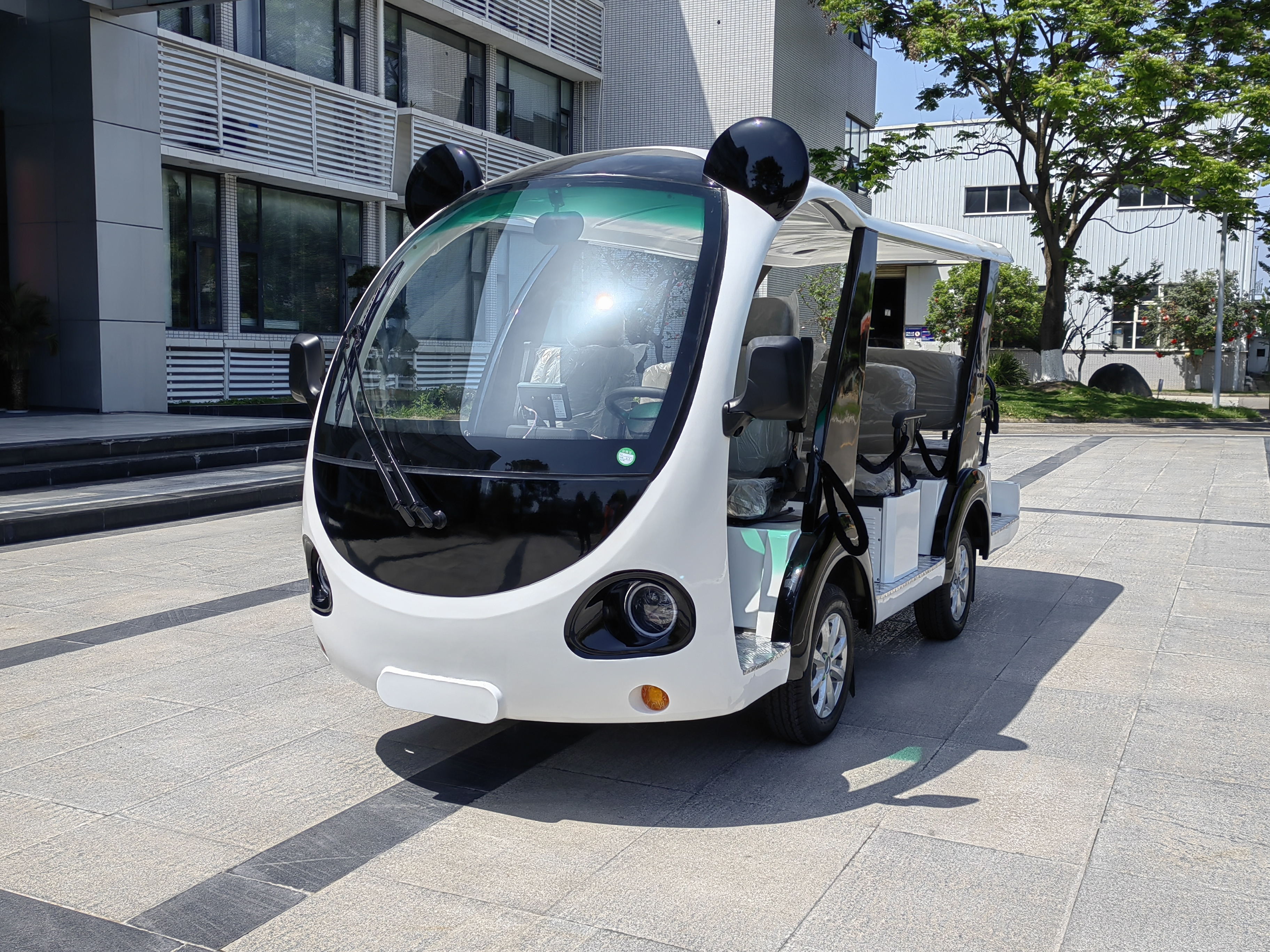

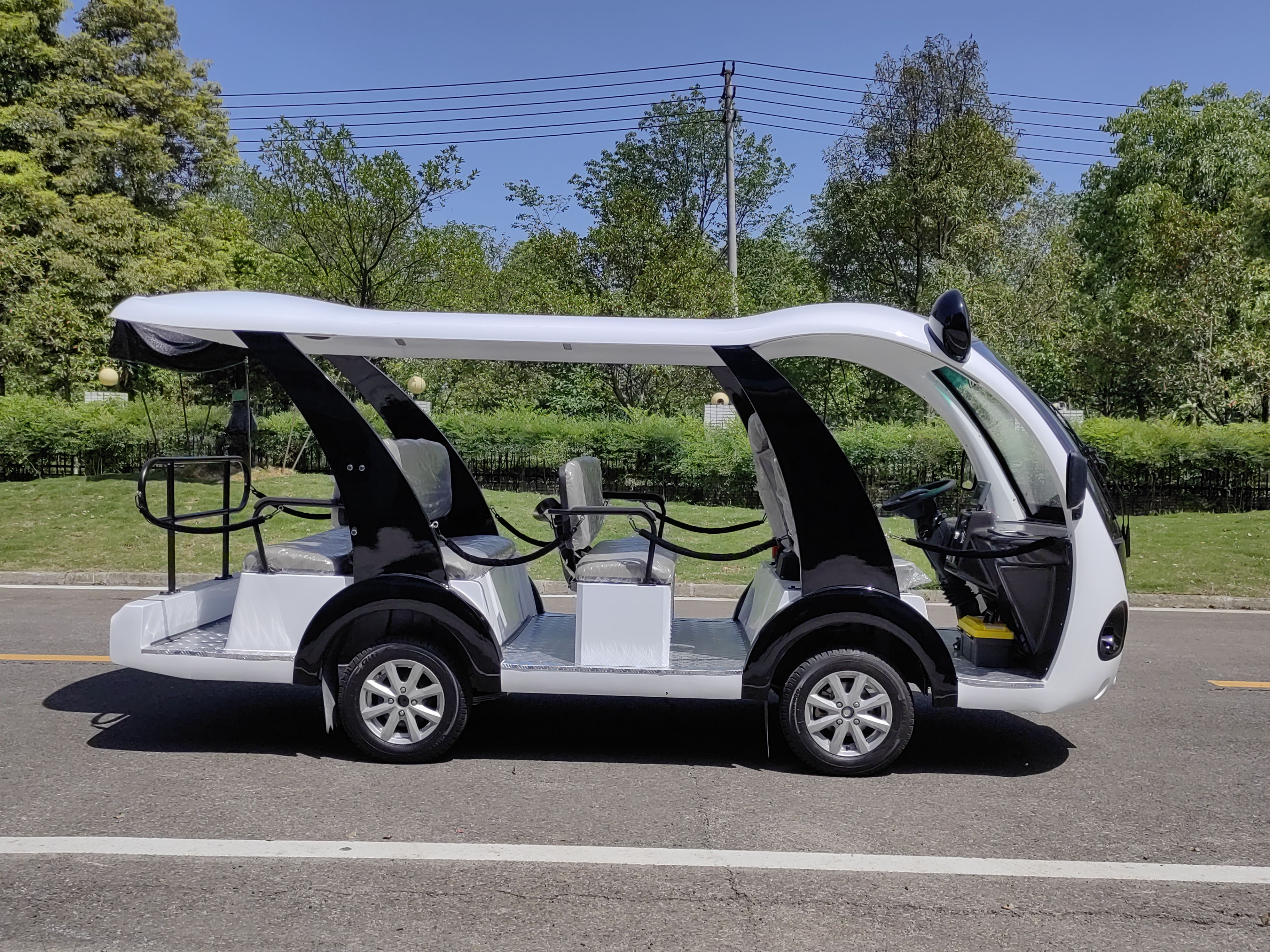

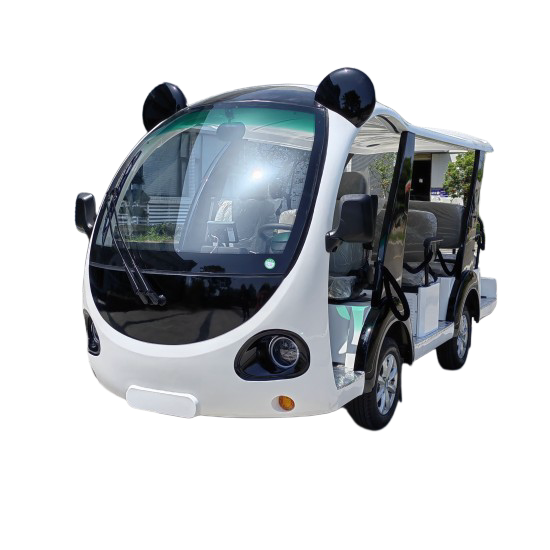

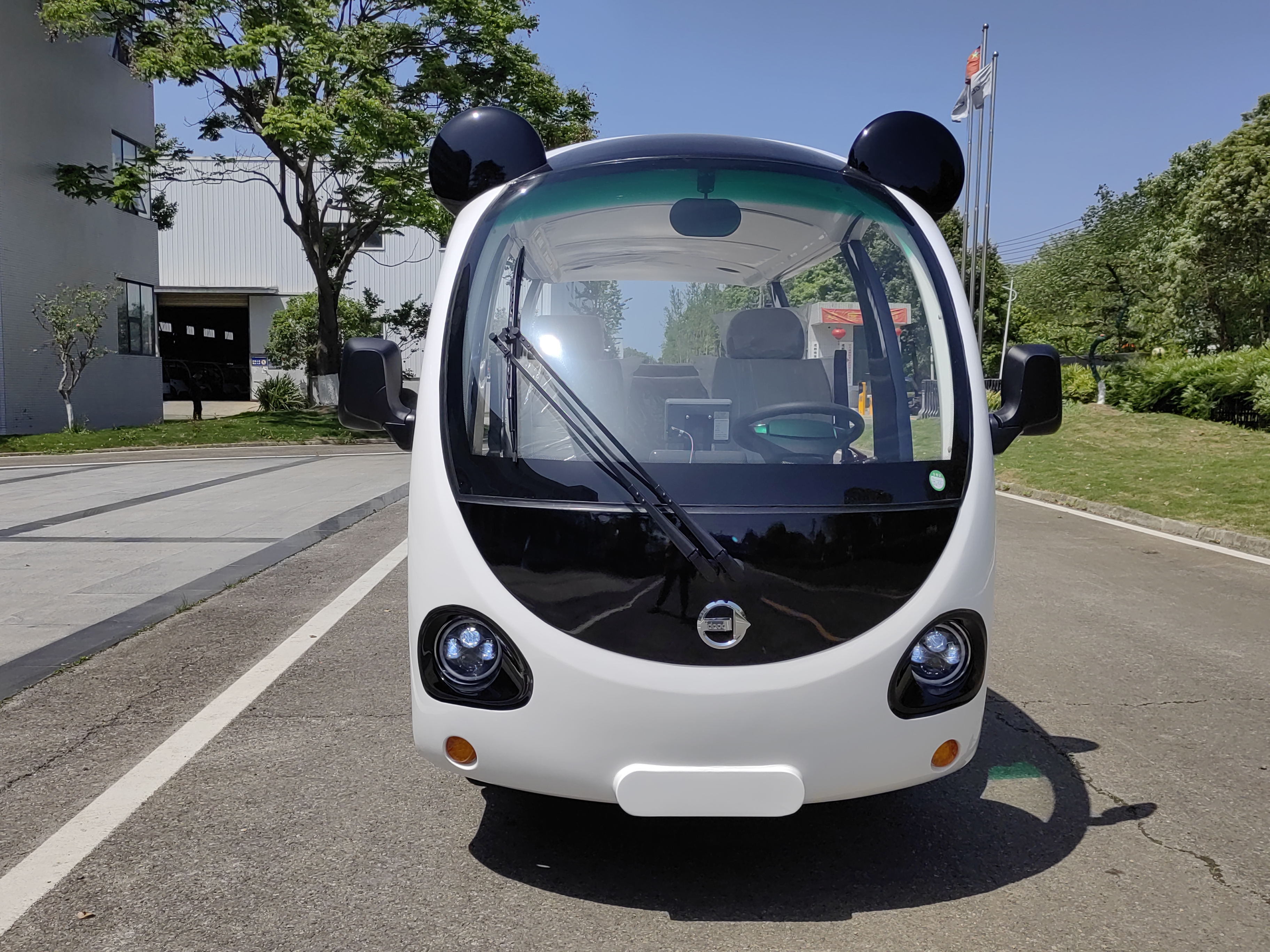

New Design Special 11 Seats Panda Electric Sightseeing Car

T

e

c

h

n

i

c

a

l

p

a

r

a

m

e

t

e

r

Vehicle model

PD11

Configuration code

Rated occupant

11 persons

Dimensions

4860×1534×2030mm（L*W*H）

Top speed

15～27km/h（ adjustable）

Wheelbase

1890mm

Front and

rear track

1300/ 1280mm

Minimum ground clearance

150mm

Minimum

turning

radius

4.5m

Braking distance

≤6m

Gradeability

20%

Curb weight

1100kg

Maximum

driving

mileage

100km

E

l

e

c

t

r

i

c

a

l

S y s t  e

m

Battery

72V120AH maintenance-free lead-acid power battery pack.

Power system

72V high efficiency MOSFET AC motor control system, 5kw maintenance free brushless AC variable frequency motor.

Charger

AC220/DC72V high-efficiency vehicle-mounted intelligent charger, charging time is 8- 10 hours (discharge rate is 80%).

Lights and

Signals

Headlights, turn signals, combined rear tail lights, brake lights, electric horn and reversing buzzer.

Audio

Car MP3 audio player, Hi-Fi speakers.

Switch

Key start switch, light and wiper combination switch, warning light rocker switch, emergency power off switch.

Meter

LCD instrument (including voltage, current, speed, mileage, light, front and rear commutation and other signals).

Speed,Drive and

Reverse control

Electronic throttle, luxury knob-type shift switch, stepless speed regulation system, anti- slip control on slopes.

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Seat

First row 1+1 single seat (leather fabric + high resilience PU, angle adjuster, driver seat    with slide rail front and rear adjustable, off-white) Rear three-person seat (leather fabric + high resilience PU , off-white), equipped with two-point seat belts, safety ropes on both     sides of the body.

Body and frame

Aluminum alloy body frame, high-strength rectangular steel tube welded chassis frame, electrostatic spraying and electrophoresis anti-rust treatment.

Body

High-strength FRP shell and ABS plastic moldings, automotive-grade paint spray/aluminum frame.

Floor

High anti-corrosion aluminum-zinc plate + aluminum alloy pattern plate double-layer floor, aluminum alloy floor skirting strip.

Dashboard

Polyurethane foam one-piece instrument panel, with lock access cover, reserved defrost air conditioner outlet.

Windshields and mirrors

Double-layer laminated front glass + tempered rear glass, wide-view manual exterior rear -view mirror + interior rear-view mirror, two-speed large-view wiper, and glass spray

washing function.

Steering system

Polyurethane softened steering wheel, four-way adjustable

steering column, mechanical power steering, high-efficiency

rack and pinion steering gear with clearance compensation.

Front axle and suspension

MacPherson independent suspension (coil spring + cylinder hydraulic shock absorption).

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Rear axle and suspension

High-efficiency motor direct-connected large-speed ratio gear reduction integral rear axle, leaf spring + cylinder type hydraulic shock absorption type non-independent suspension.

Braking system

Front disc, rear drum brake, dual circuit hydraulic service brake, electronic EPB rear parking brake.

Tire

165/70R13C vacuum radial tires, steel rims.
