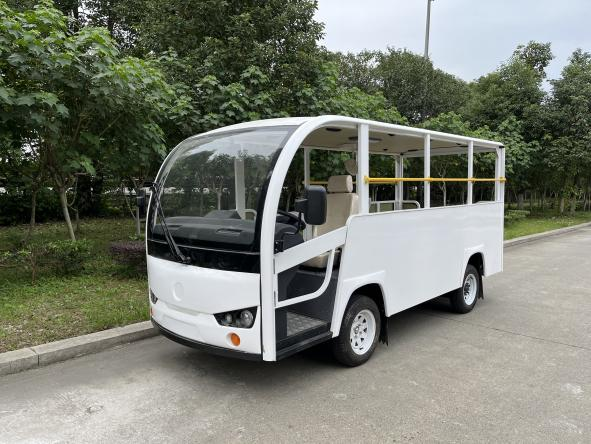

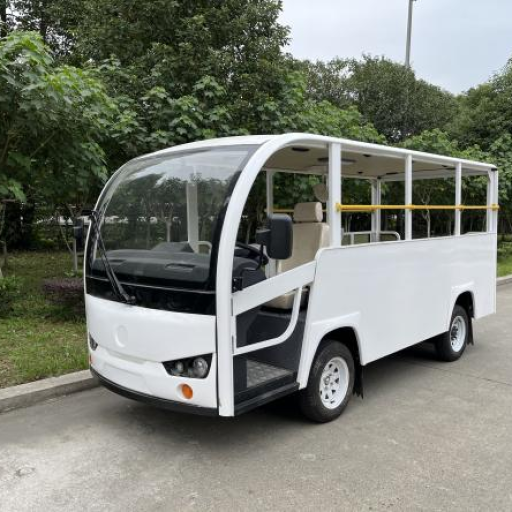

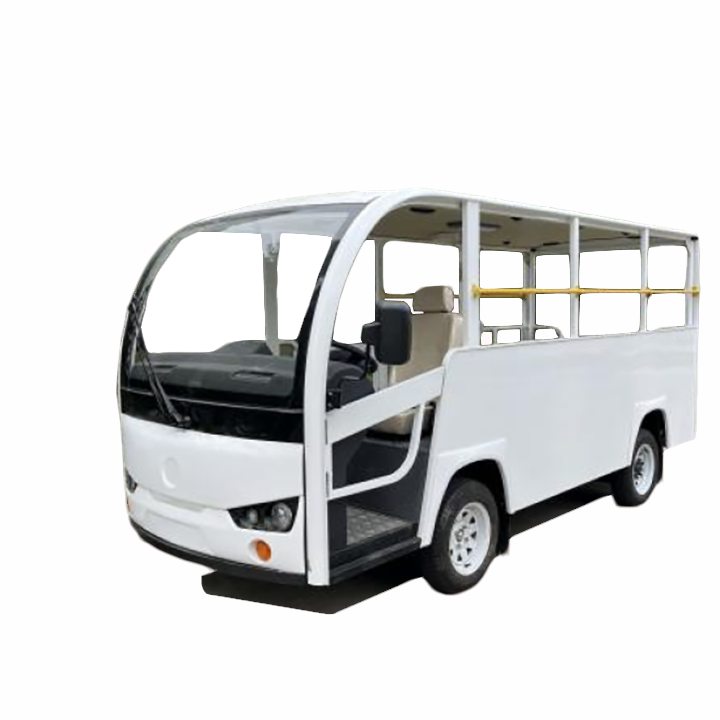

Modern New Energy 17 Seats Enclosed Electric Sightseeing Car

T

e

c

h

n

i

c

a

l

p

a

r

a

m

e

t

e

r

Vehicle model

F17

Rated occupant

17人

Dimensions

≧4668×1570×1950mm（L*W*H）

Top speed

15～50km/h(Adjustable) Full load

Charging input voltage

220V

Wheelbase

≧2200mm

Front and

rear track

≧1300/1280mm

Minimum ground clearance

150mm

Minimum

turning

radius

4.9m

Braking distance

≤6m

Gradeability

25%

Curb weight

1290kg

Maximum

driving

mileage

200km载

E

l

e

c

t

r

i

c

a

l

S y s t  e

m

Battery

153.6V21.5kwh Lithium iron phosphate power battery pack.

Power system

144V high efficiency MOSFET AC motor control system, 15 kW free brushless AC frequency conversion motor.

Charger

AC220 high-efficiency vehicle intelligent battery charger (6.6KW), charging time of 4-5 hours (discharge rate of 80%).

Lights and

Signals

Headlights, turn signal lights, combination rear taillights, brake lights, electric horn and reversing buzzer.

Audio

Car MP3 sound machine, hi-fi speakers.

Switch

Key start switch, light and wiper combination switch, warning lamp warping switch, emergency power switch.

Meter

LCD instrument (including voltage, current, speed, mileage, light, front and rear changes, etc.)

Speed,Drive and Reverse control

Electronic throttle, luxury knob shift switch, stepless speed control system, ramp anti-rear slip control.

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Seat

The first row of 1 + 1 single seats (leather fabric + high rebound PU, corner adjustment, driver seat with adjustable front and rear, off-white) rear long seats

Body and frame

Aluminum alloy body skeleton, high strength rectangular steel pipe welded chassis frame, electrostatic spraying and electrophoresis anti-rust treatment.

Body

High strength glass fiber reinforced plastic shell and ABS plastic forming parts, automotive grade paint spraying / aluminum frame.

Body, closed door

High strength FRP shell and ABS forming parts, automotive grade paint / aluminum frame, removable aluminum alloy skeleton simple door

Floor

High anticorrosion aluminum plated zinc plate + aluminum alloy pattern plate double floor, aluminum alloy floor skirt edge.

Dashboard

Polyurethane foam integrated forming instrument platform. Maintenance cover with lock. Reserve the defrost air-conditioning tuyere.

Windscreen and rearview mirrors

Double layer laminated front windshield + tempered rear windshield, wide field manual external rearview mirror + internal rearview mirror, double speed large field wiper, glass spray washing function.

 steering system

Polyurethane softens the steering wheel, four-way adjustable steering string, electric power steering EPS,

High efficiency gear rack type belt clearance compensation direction machine.

Front axle and suspension

McPherson independent suspension (spiral spring + cylinder hydraulic damping)。

Rear axle and suspension

High efficiency motor direct connection type large speed ratio gear deceleration integral full floating rear axle, plate spring + cylinder hydraulic shock absorption type non-independent suspension.

Braking system

Front disc brake, rear drum brake, electronic vacuum power double circuit hydraulic driving brake, mechanical rear wheel parking brake device.

Tire

155R13C vacuum radial tires, steel rims.

Bumper

Front and rear steel collision bumper, rubber protection angle.

Other

11kg dry powder fire extinguisher, one set of tools on board, 1220V2.5m charging power cable.

Other modifications

1, the left steering car (left semi-closed, right front door; driving, co-pilot half door design; tail plus pedal version) on the right middle door car position has two step design;

2, Full load 50 km/h;

3, the left and right sides of the unclosed space a transverse pattern tube, add sun shade;

4. Add 10-20mm sponge cushion for the backrest position, and add a handrail bar on the left and right sides of the roof.

5. Add 5 fans to the rear seat, 2 fans to the front, and 5 USB ports in the rear seat (easy charging for mobile phone).

6. The roof, side circumference and door should be disassembled, and the 40-foot high cabinet can be loaded with 8 cars.
