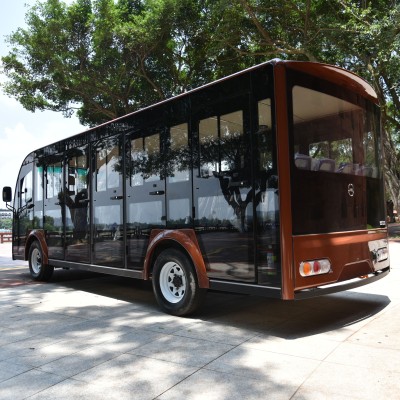

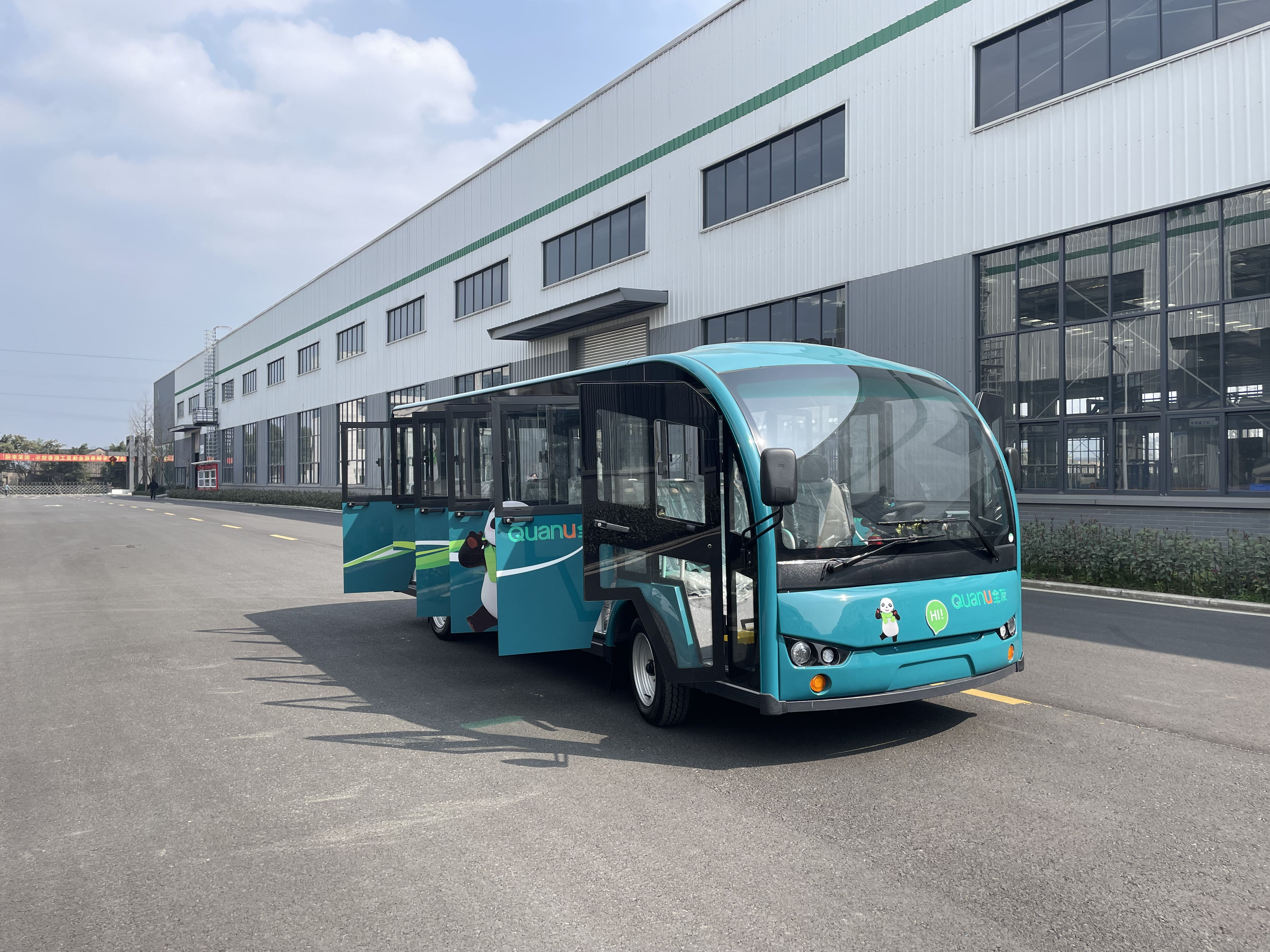

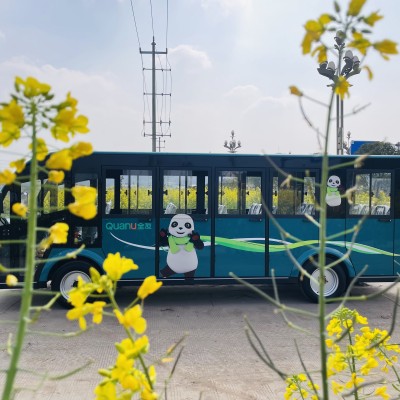

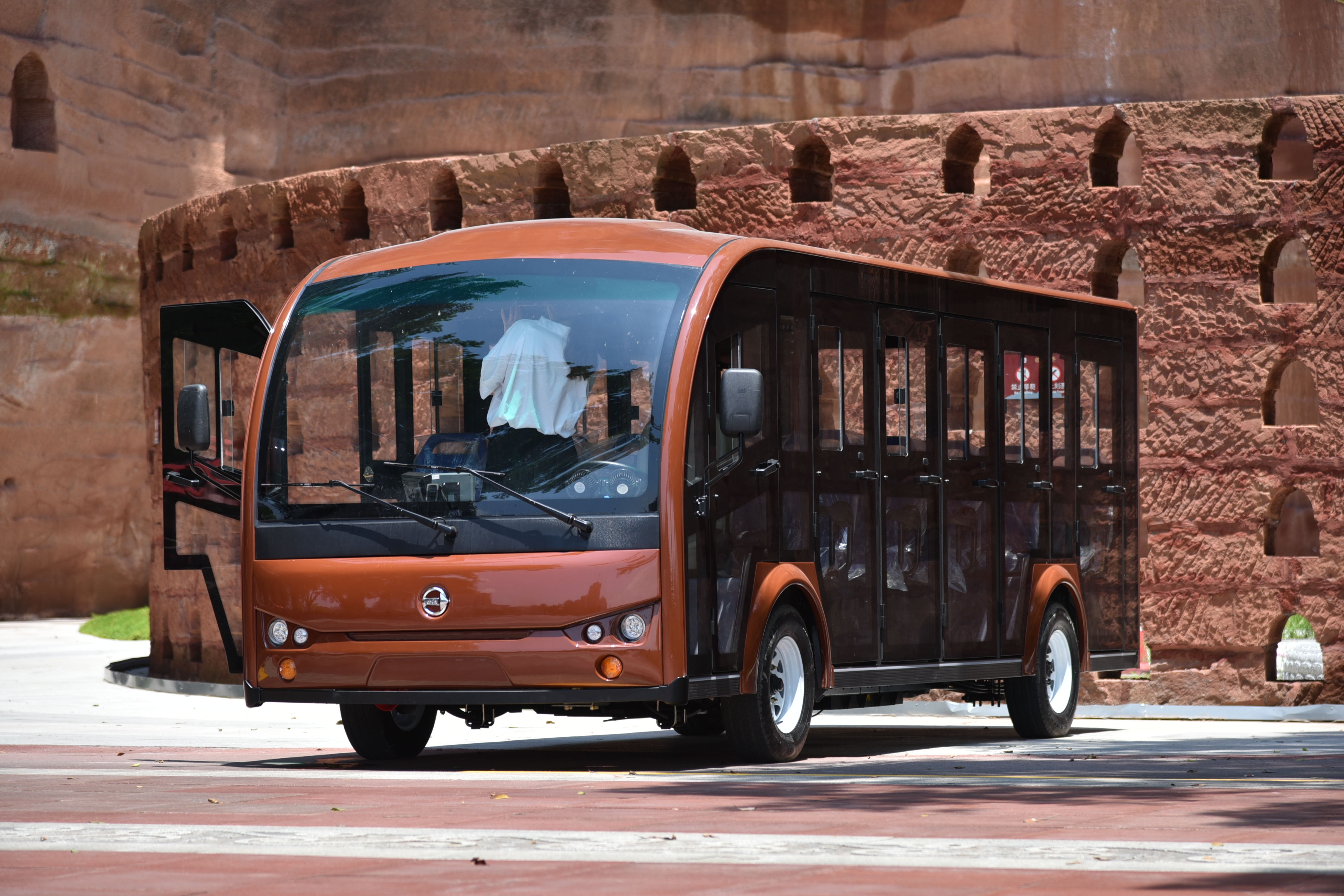

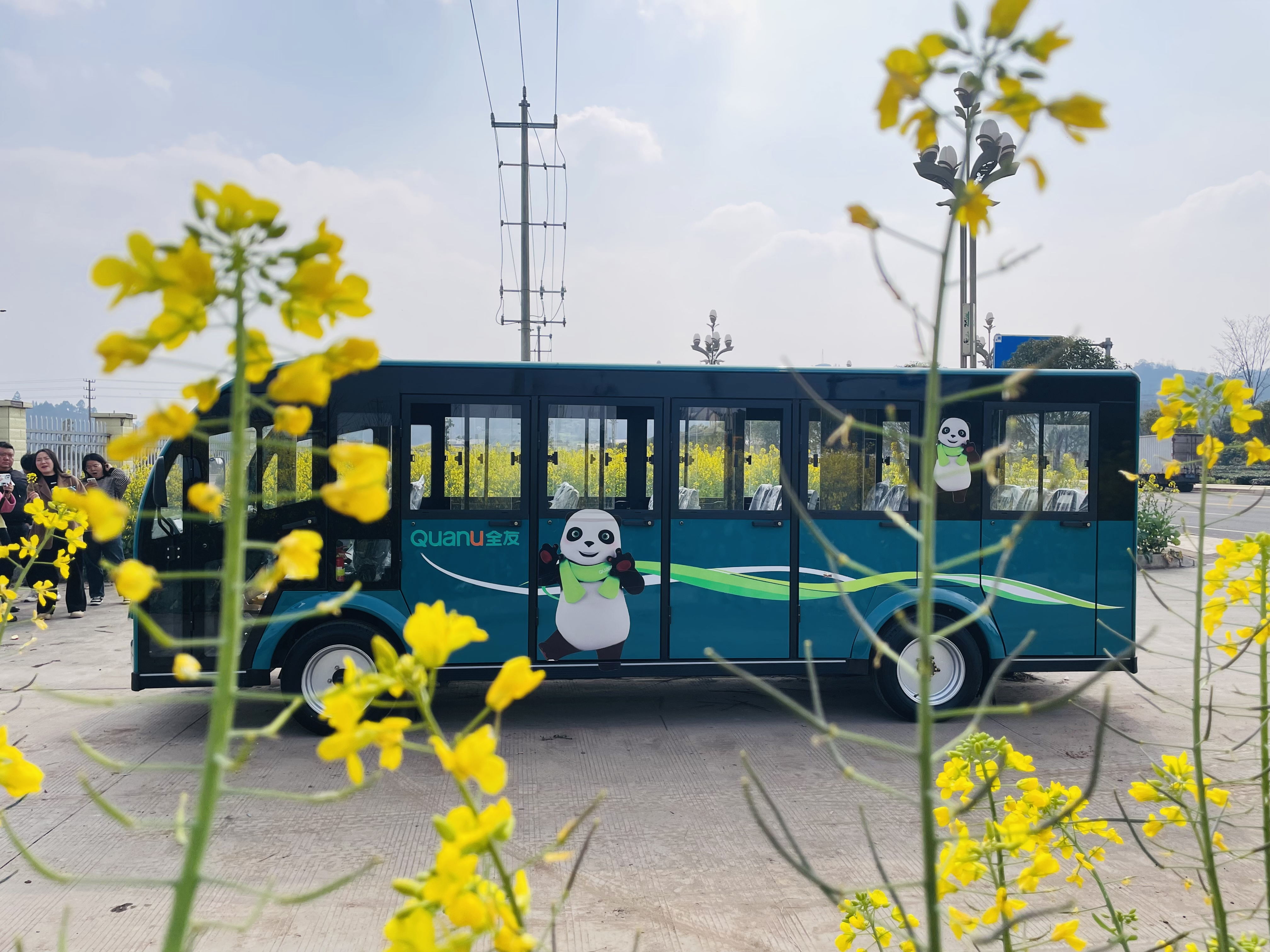

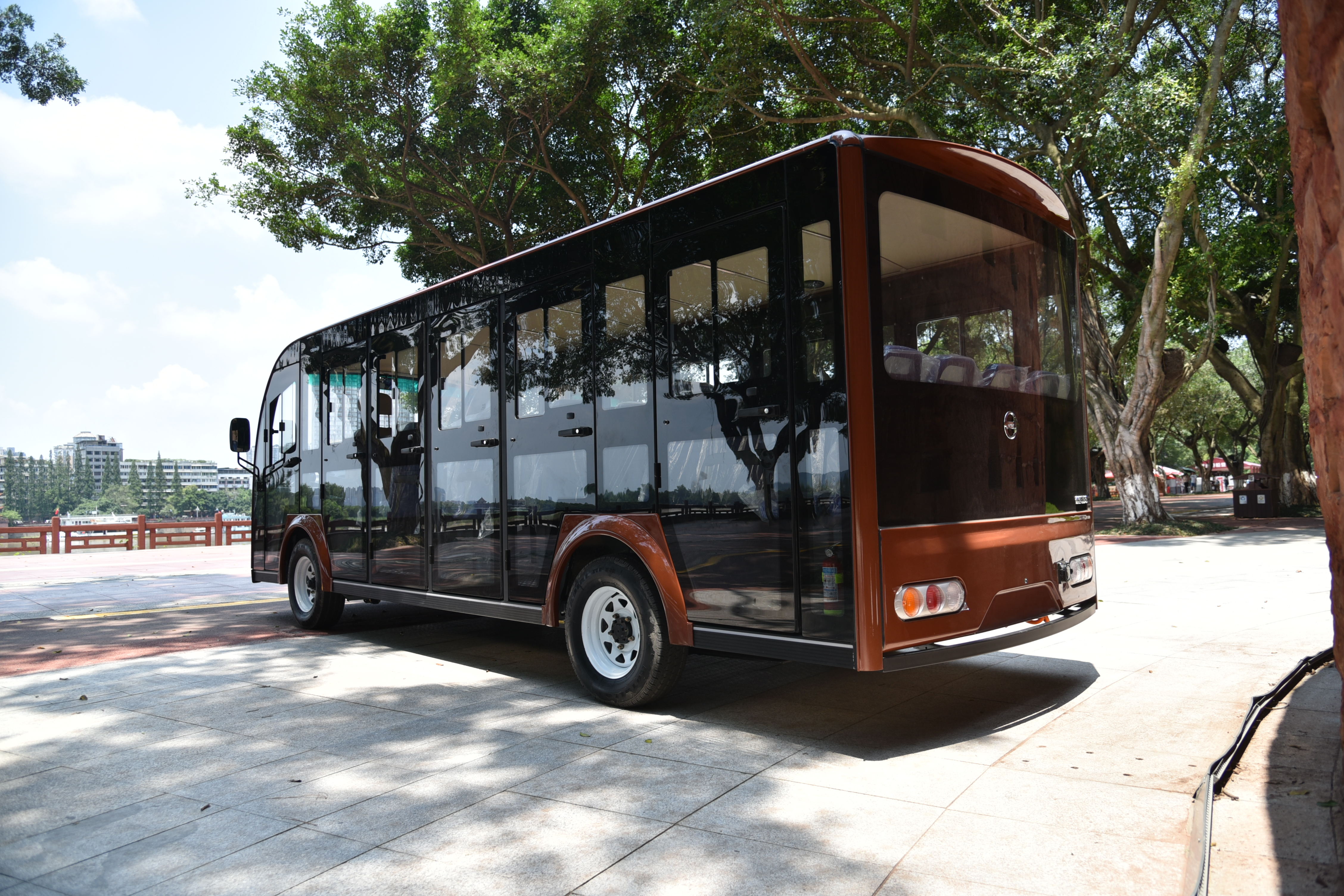

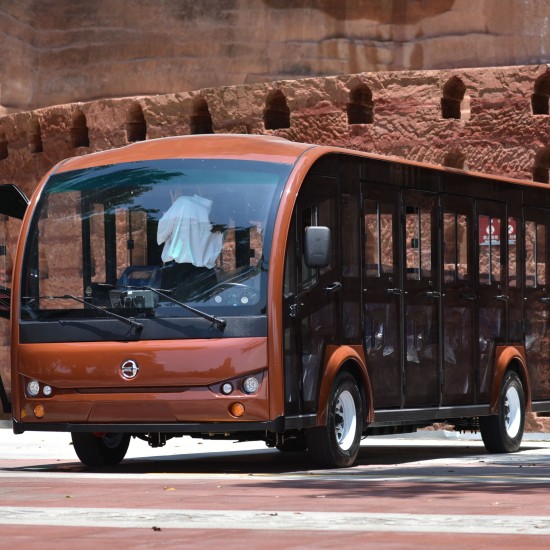

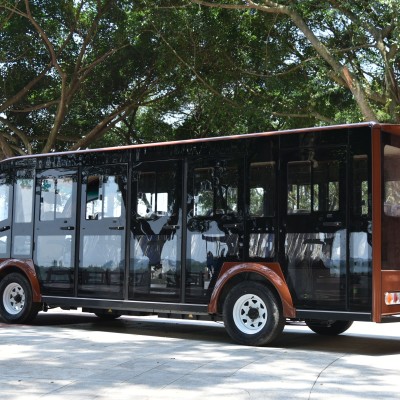

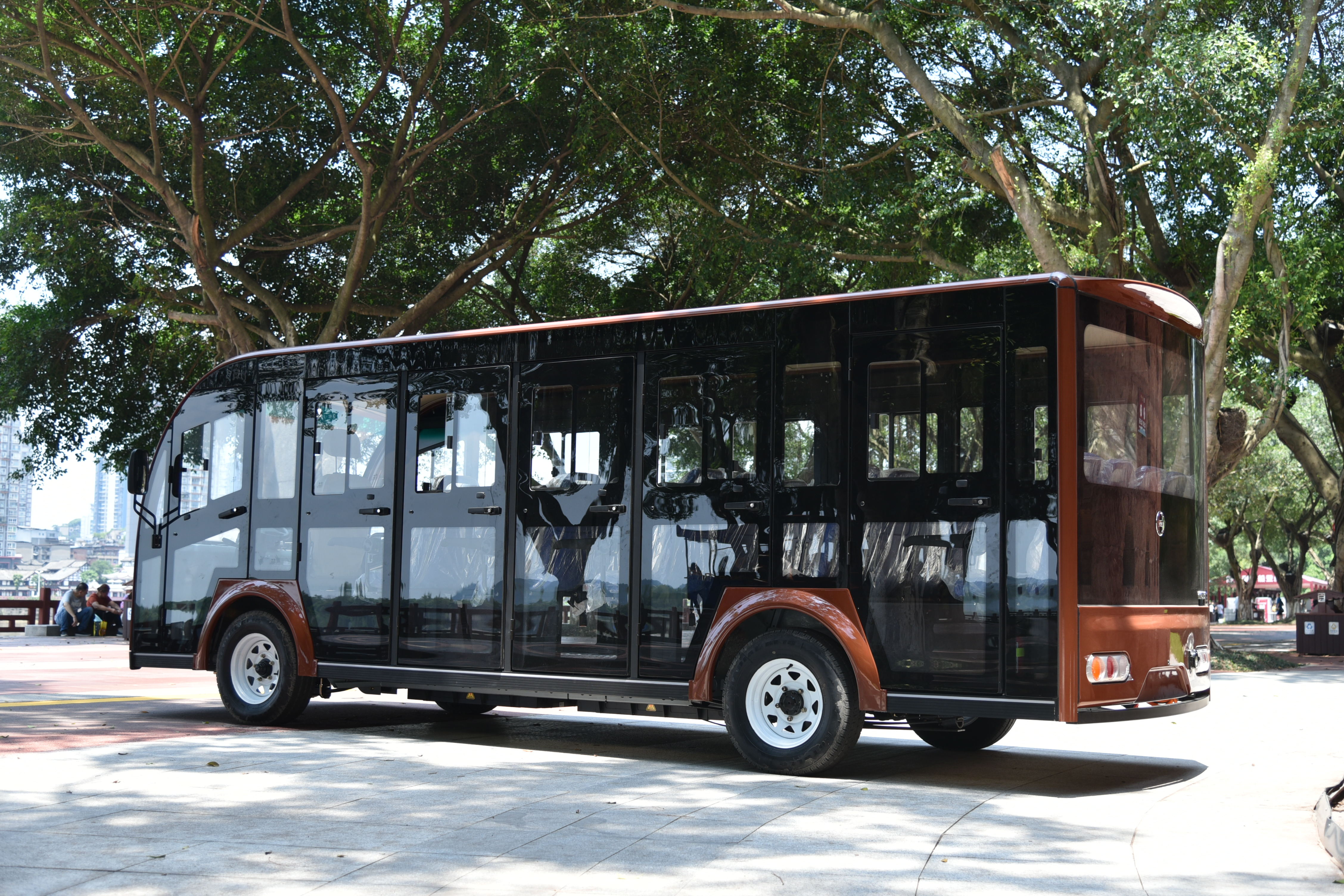

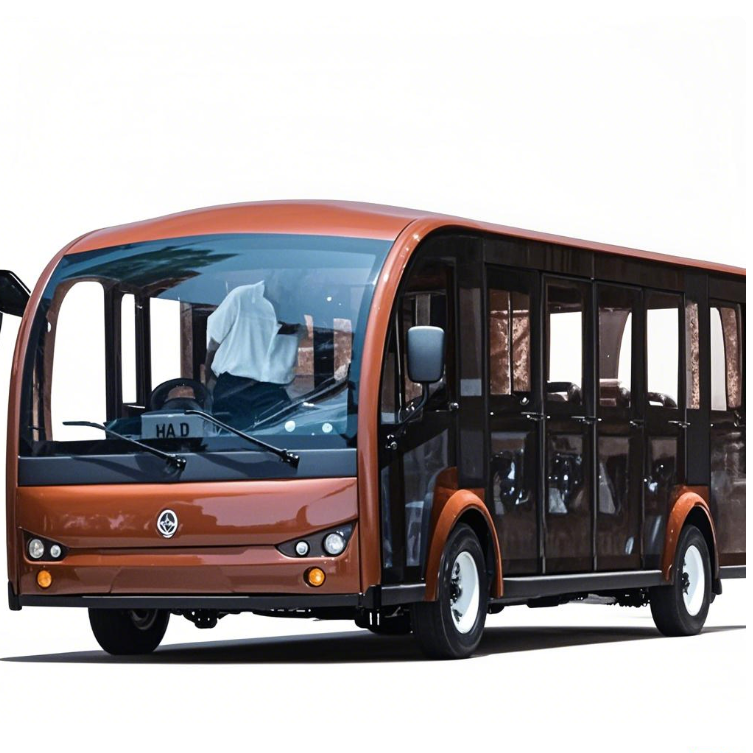

Exclusive, Long Range 23 Seats Enclosed Electric Sightseeing Car

T

e

c

h

n

i

c

a

l

p

a

r

a

m

e

t

e

r

Vehicle model

F23M

Configuration code

L22

Rated occupant

23 persons

Dimensions

6130*1960*2250mm（L*W*H）

Top speed

15～30km/h（adjustable）

Charging input voltage

220V

Wheelbase

3400mm

Front and

rear track

1690/ 1740mm

Minimum ground clearance

150mm

Minimum

turning

radius

8.8m

Braking distance

≤5m

Gradeability

15%

Curb weight

2100kg

Maximum

driving

mileage

100km

E

l

e

c

t

r

i

c

a

l

S y s t  e

m

Battery

153.6V35kwh lithium iron phosphate power battery pack, optional high-power charging pile

Power system

144V high-efficiency motor control system, 15KW maintenance-free brushless AC variable frequency motor

Charger

AC220/DC144V high-efficiency vehicle-mounted intelligent charger, charging time is 10~ 12 hours (discharge rate is 80%)

Lights and Signals

Headlights, turn signals, combined rear tail lights, brake lights, electric horn and reversing buzzer

Audio

Car MP3 Speaker, Hi-Fi Speaker

Switch

Key start switch, light and wiper combination switch, warning light and reversing buzzer rocker switch, emergency power off switch

Meter

LCD instrument (including voltage, current, speed, mileage, light, front and rear commutation and other signals)

Speed,Drive and

Reverse control

Electronic throttle, luxury lever-type shift switch, stepless speed control system, anti-slip control on slopes

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Seat

The driver's seat is made of leather fabric + high-rebound PU seat, the seat and backrest can be adjusted, and the passenger seat is a bus seat with armrests

Body and frame

Aluminum alloy body frame, high-strength cold plate stamping and welding

chassis frame, pickling phosphating electrostatic spraying and electrophoresis anti -rust treatment

Body, closed door

High-strength FRP shell and ABS plastic moldings, automotive-grade paint   spray/aluminum skeleton, removable aluminum alloy skeleton full glass door

Floor

High anti-corrosion aluminum-zinc plate + aluminum alloy pattern plate double- layer floor, aluminum alloy floor skirting strip

Dashboard

Vacuum plastic-covered integrated instrument panel

Windshields and mirrors

Double-layer laminated front glass + tempered glass, wide-view manual exterior rearview mirror + interior rearview mirror

Steering system

polyurethane foam steering wheel                                                                    ,

Front axle and

suspension

Integral front axle, high-strength composite leaf spring, cylinder hydraulic shock absorber

Rear axle and

suspension

High-efficiency motor direct-connected large-speed gear reduction integral rear axle, leaf spring + cylinder hydraulic shock absorber, Hotchkiss suspension

structure
