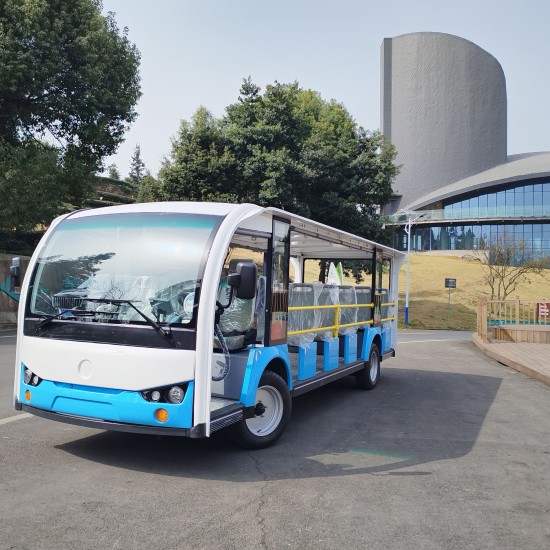

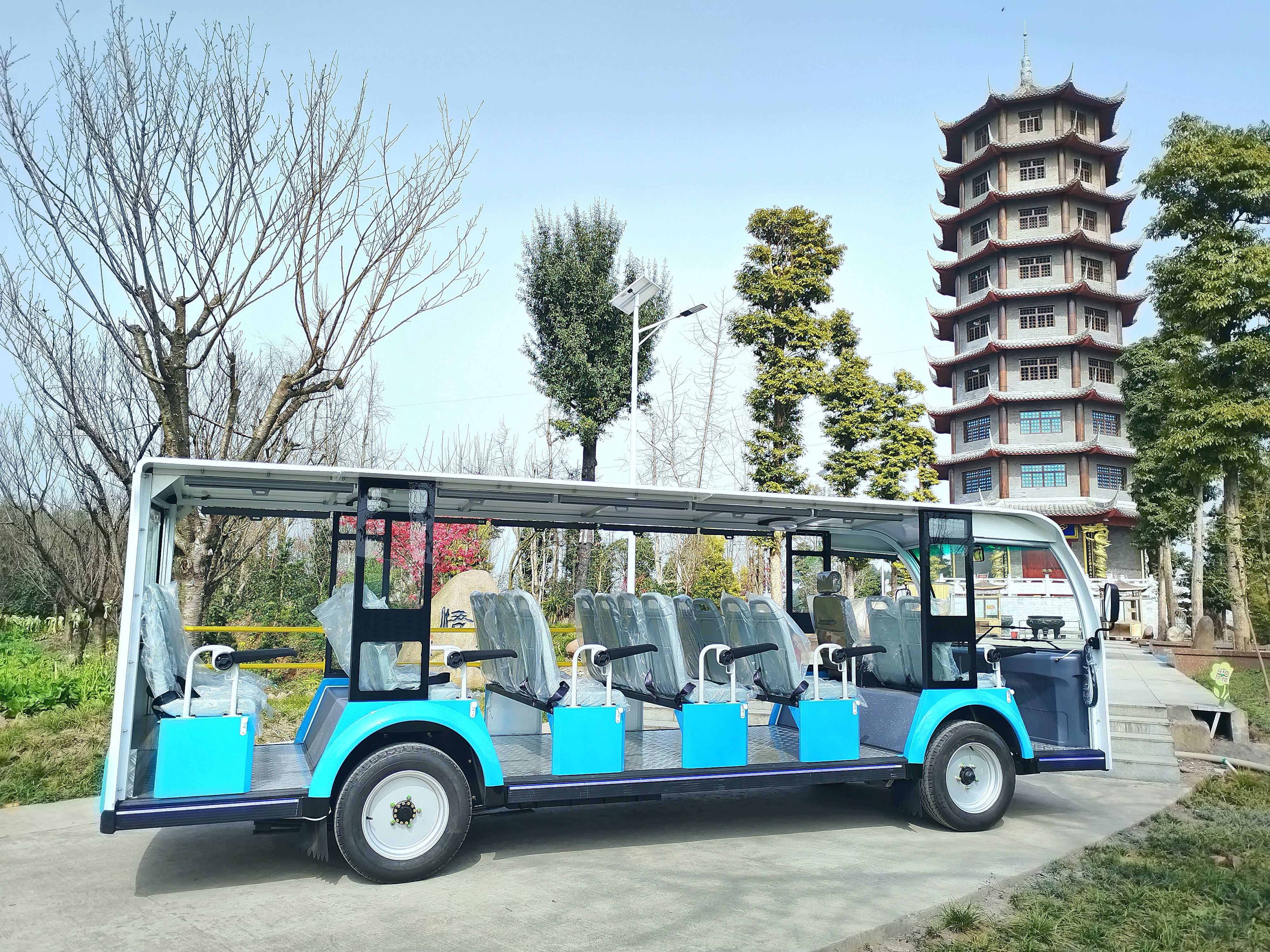

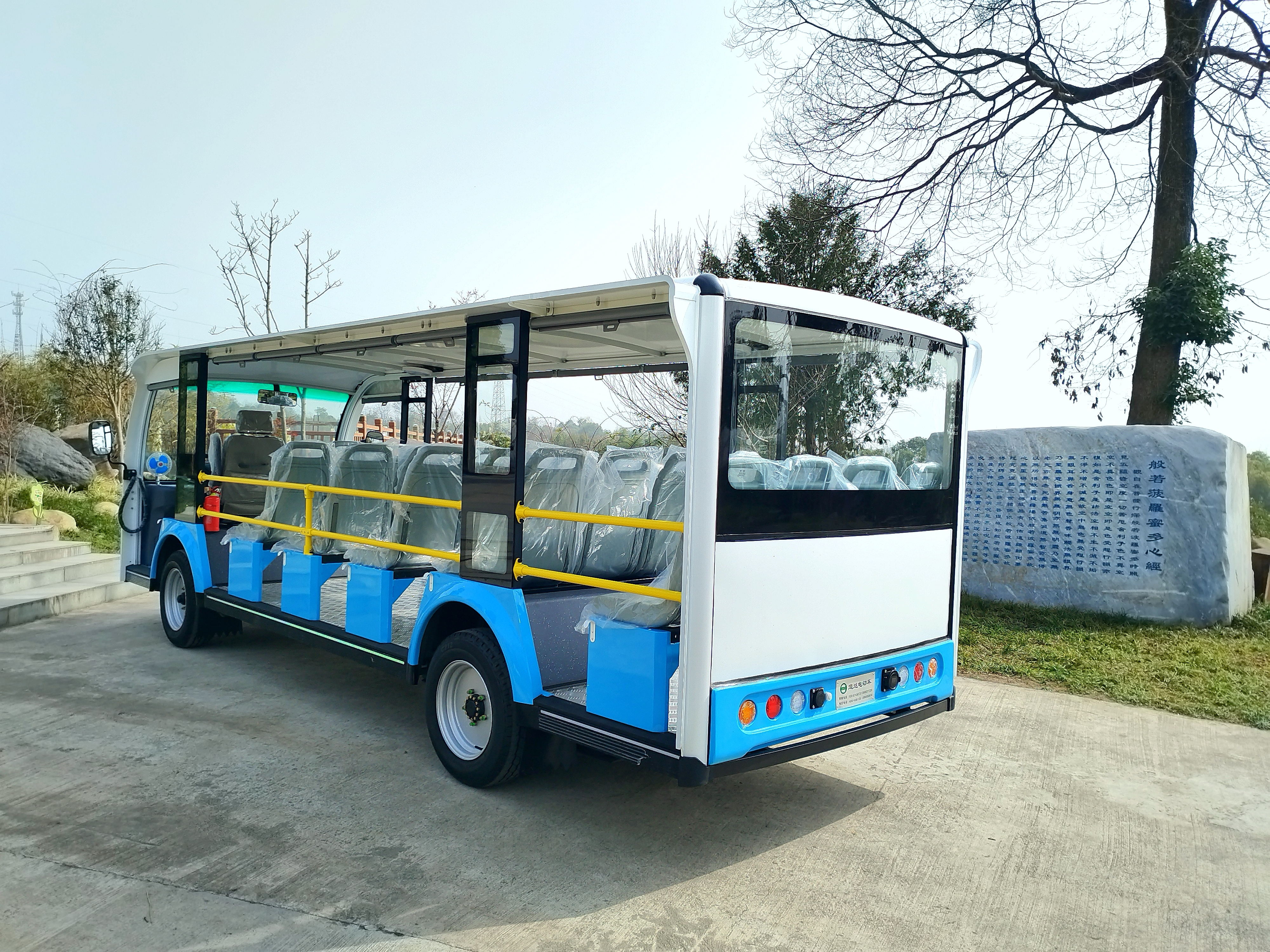

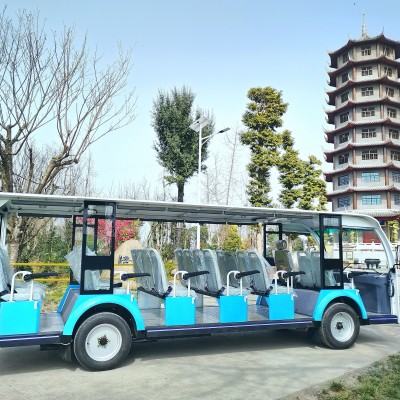

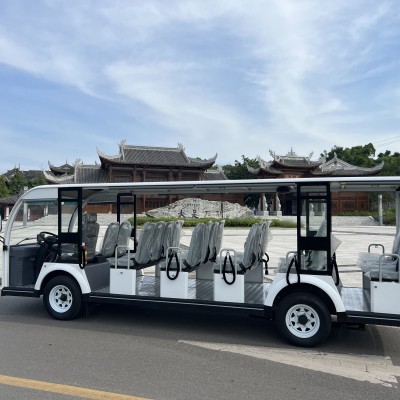

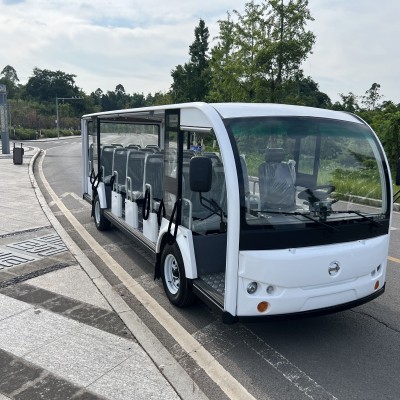

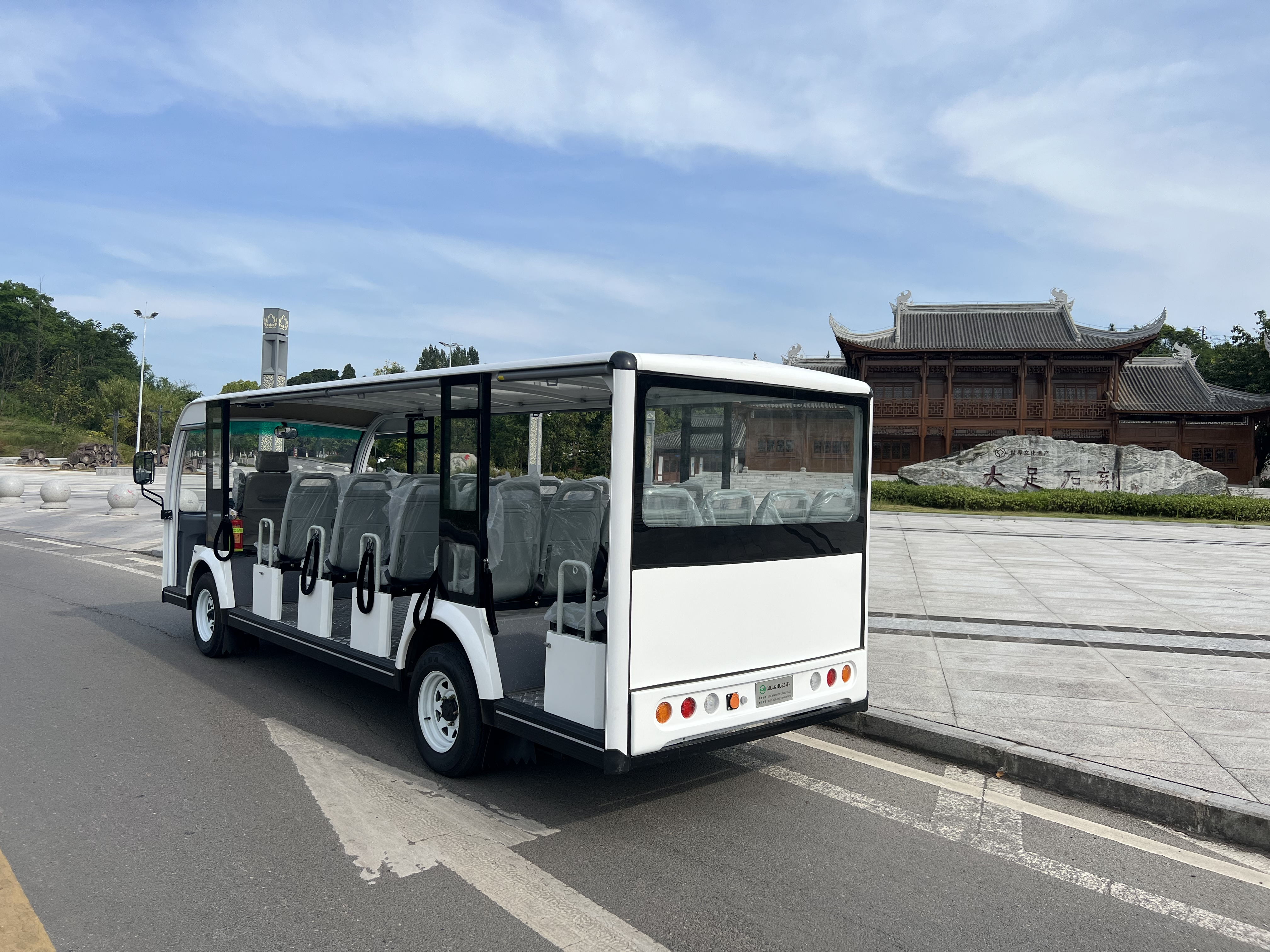

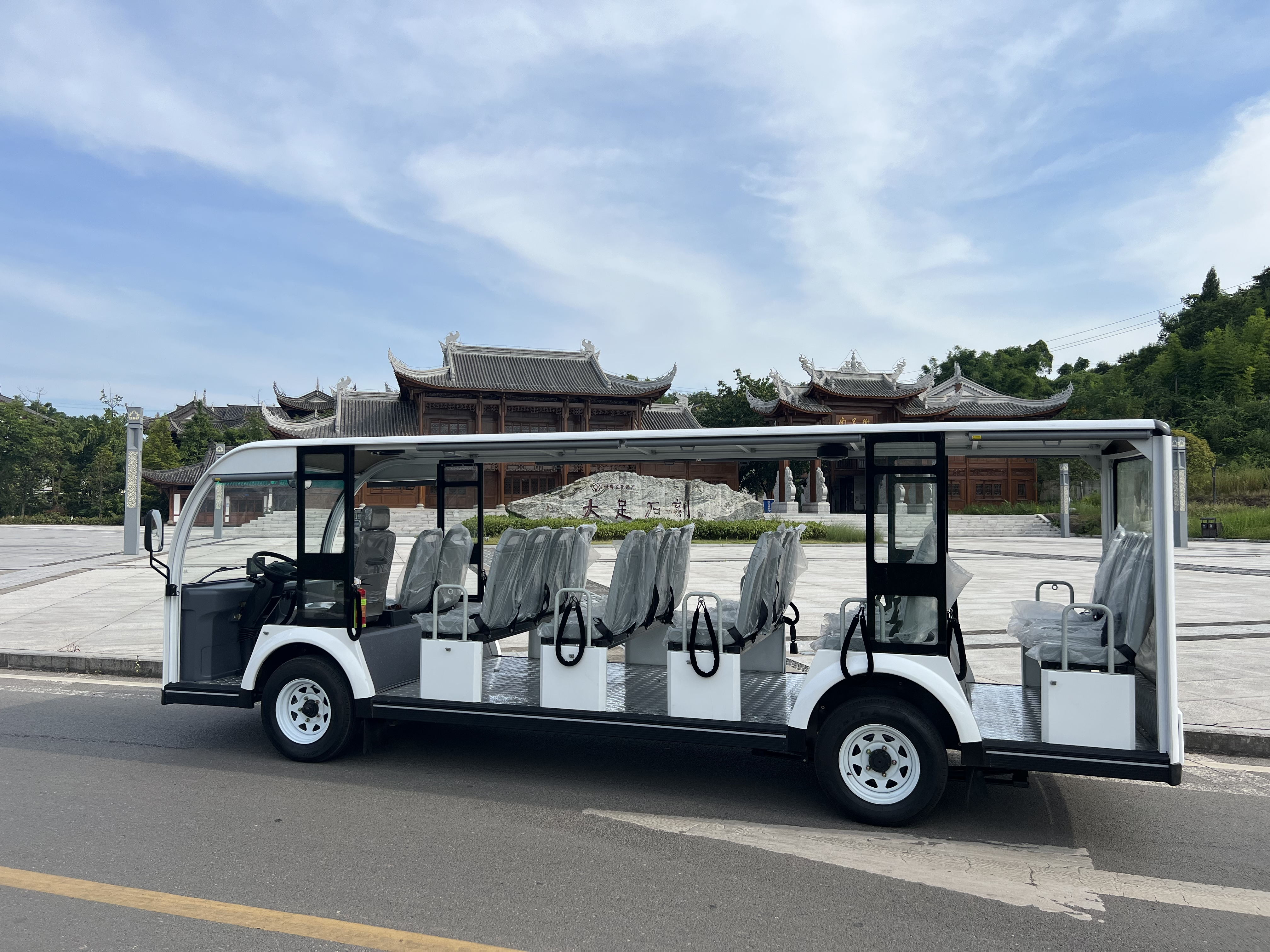

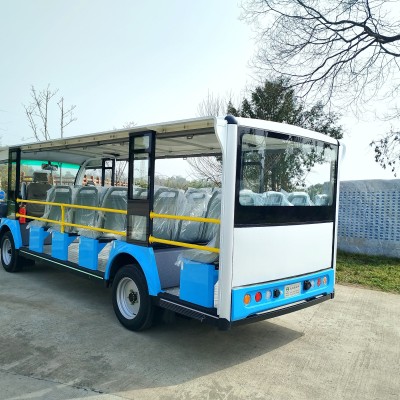

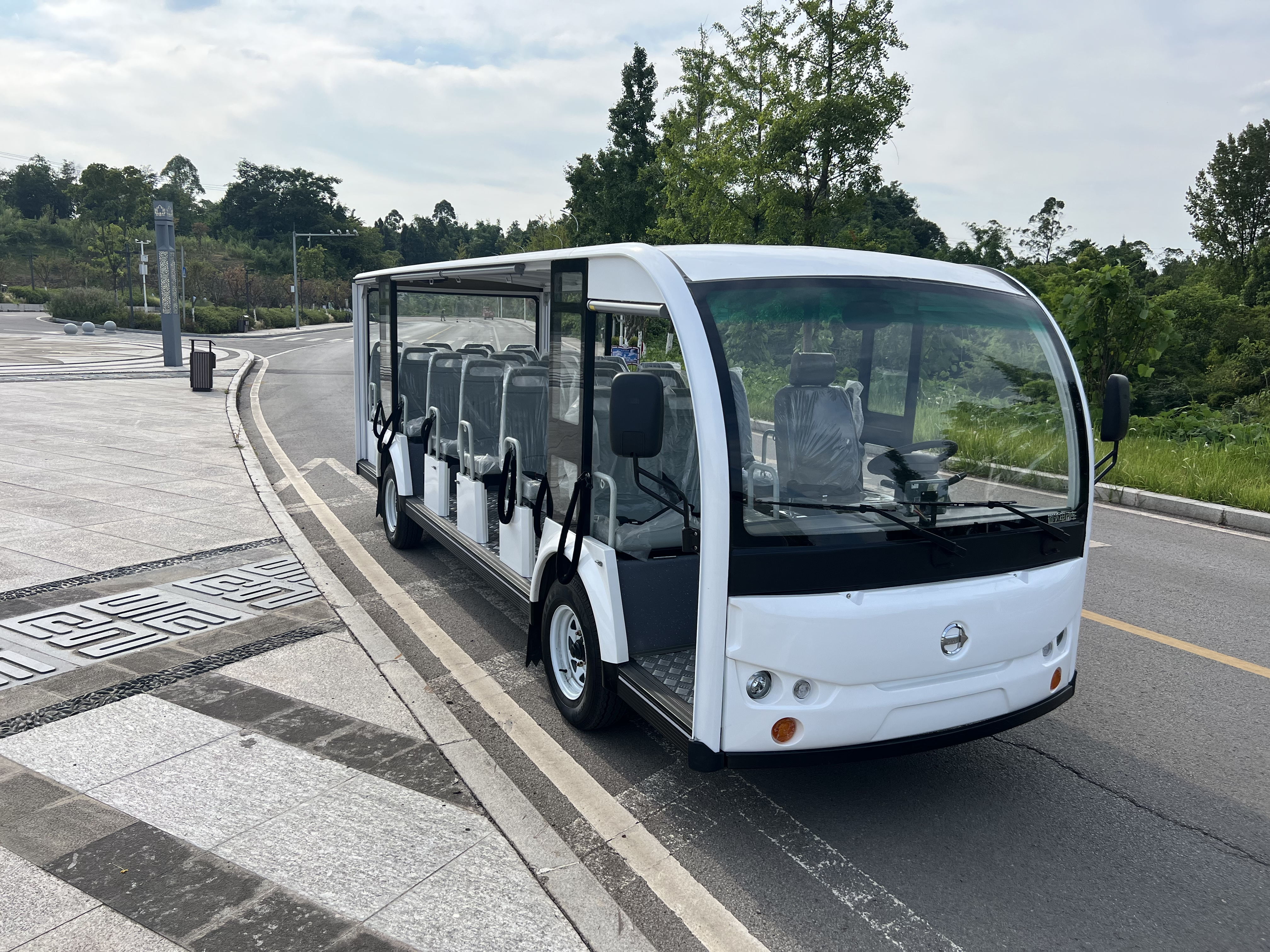

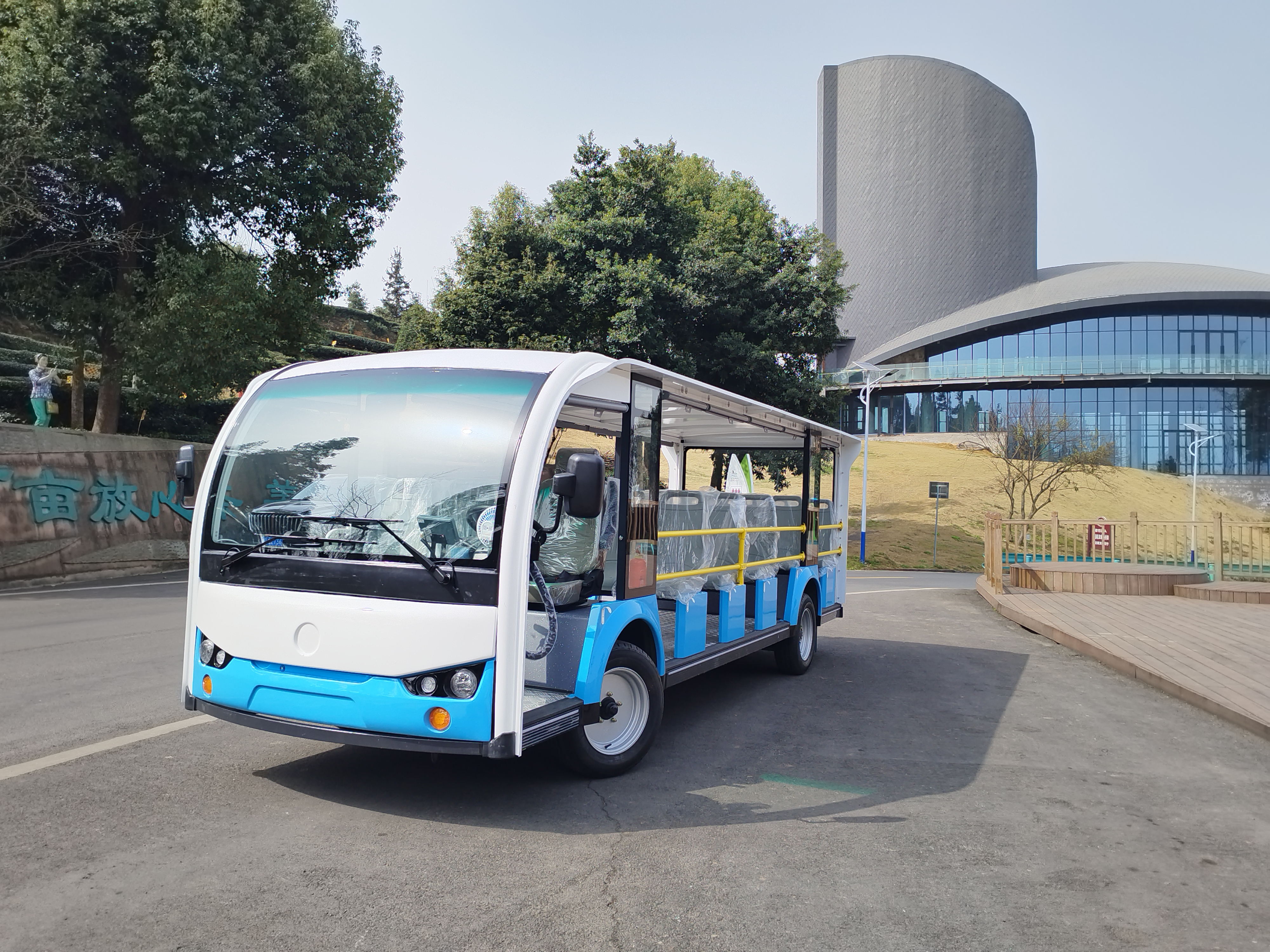

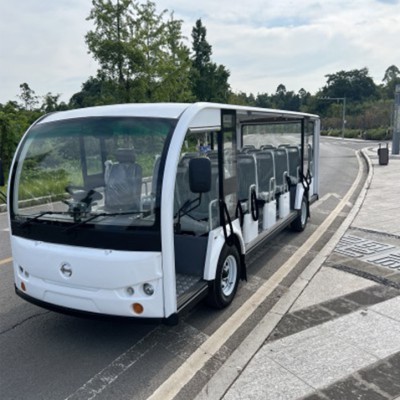

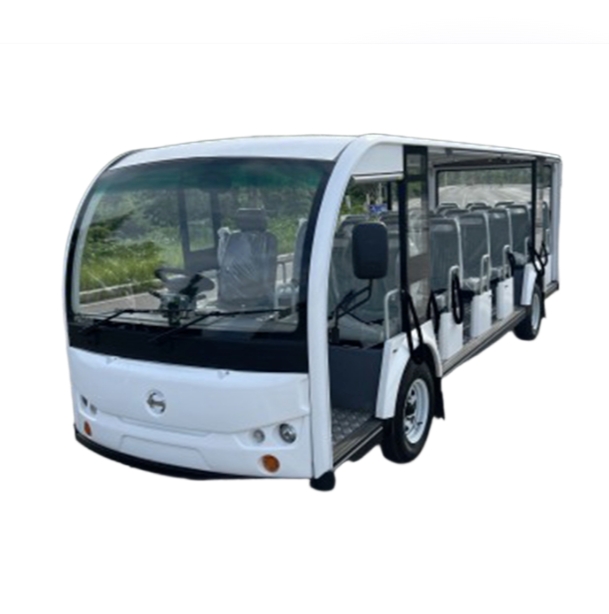

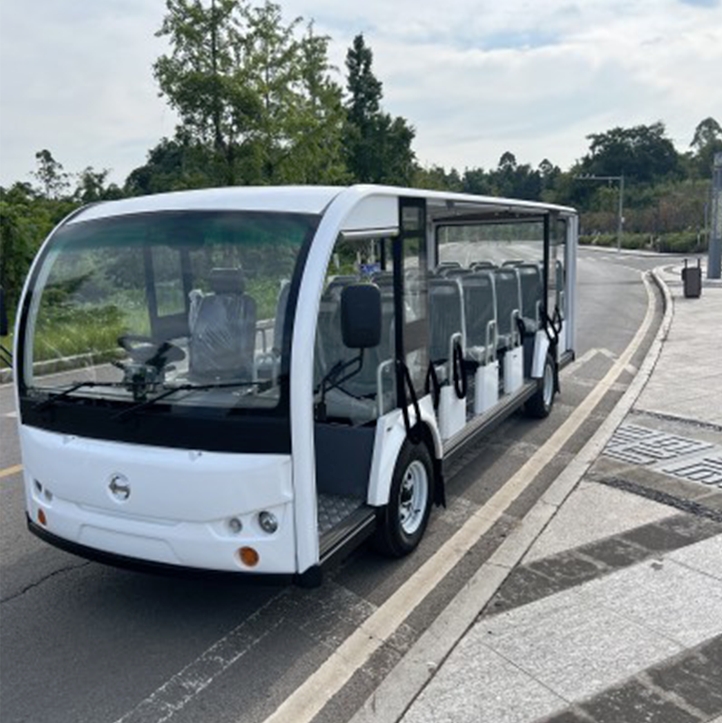

Spacious High Cost Performance 23 Seats Electric Sightseeing Car

T

e

c

h

n

i

c

a

l

p

a

r

a

m

e

t

e

r

Vehicle model

FW23

Configuration code

L24

Rated occupant

23 persons

Dimensions

6130× 1960× 2250mm（L*W*H）

Top speed

15～30km/h（ adjustable）

Charging input voltage

220V

Wheelbase

3400mm

Front and

rear track

1690/ 1740mm

Minimum ground clearance

150mm

Minimum

turning

radius

8.1m

Braking distance

≤6m

Gradeability

15%

Curb weight

2160kg

Maximum

driving

mileage

150km

E

l

e

c

t

r

i

c

a

l

S y s t  e

m

Battery

153.6V35Kwh lithium iron phosphate power battery pack + 12V lead-acid starter, backup battery.

Electrically Controlled

150V high-efficiency motor control system: 1. It has the function of ACC anti-slip uphill, and can be charged downhill to achieve energy recovery (with speed limiting function); 2. It has the functions of over-temperature, over-current and over-voltage protection; 3. IP67 protection level (passed the national compulsory inspection)

Motor

15KW high-efficiency permanent magnet synchronous motor, IP67 protection level (passed the national compulsory inspection).

Charger

AC220/DC72V high-efficiency vehicle-mounted intelligent charger, charging time is 8- 10 hours (discharge rate is 80%).

Lights and

Signals

Headlights, turn signals, combined rear tail lights, brake lights, electric horn and reversing buzzer.

Audio

Car MP3 audio player, Hi-Fi speakers.

Switch

Key start switch, light and wiper combination switch, warning light rocker switch, emergency power off switch.

Meter

LCD instrument (including voltage, current, speed, mileage, light, front and rear commutation and other signals).

Speed,Drive and

Reverse control

Electronic throttle, luxury knob-type shift switch, stepless speed regulation system, anti- slip control on slopes.

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Seat

First row 1+1 single seat (leather fabric + high resilience PU, angle adjuster, driver seat    with slide rail front and rear adjustable, off-white) Rear three-person seat (leather fabric + high resilience PU , off-white), equipped with two-point seat belts, safety ropes on both     sides of the body.

Body and frame

Aluminum alloy body frame, high-strength rectangular steel tube welded chassis frame, electrostatic spraying and electrophoresis anti-rust treatment.

Body

High-strength FRP shell and ABS plastic moldings, automotive-grade paint spray/aluminum frame.

Floor

High anti-corrosion aluminum-zinc plate + aluminum alloy pattern plate double-layer floor, aluminum alloy floor skirting strip.

Dashboard

Polyurethane foam one-piece instrument panel, with lock access cover, reserved defrost air conditioner outlet.

Windshields and mirrors

Double-layer laminated front glass + tempered rear glass, wide-view manual exterior rear -view mirror + interior rear-view mirror, two-speed large-view wiper, and glass spray

washing function.

Steering system

Polyurethane softened steering wheel, four-way adjustable

steering column, mechanical power steering, high-efficiency

rack and pinion steering gear with clearance compensation.

Front axle and suspension

MacPherson independent suspension (coil spring + cylinder hydraulic shock absorption).

B

o

d

y

a

n

d

C

h

a

s

s

i

s

Rear axle and suspension

High-efficiency motor direct-connected large-speed ratio gear reduction integral rear axle, leaf spring + cylinder type hydraulic shock absorption type non-independent suspension.

Braking system

Front disc, rear drum brake, dual circuit hydraulic service brake, electronic EPB rear parking brake.

Tire

165/70R13C vacuum radial tires, steel rims.

Bumper

Front and rear steel bumpers with rubber protective corners.

Other

1 pc 1kg dry powder fire extinguisher, 1 set of vehicle tools, 1 pc 220V 2.5m charging power cord.
